1. 100% brand new and high quality 2. Secure mode: The door will lock while supplied with power, or without power for your choice 3. Especially suitable for glass/ wooden/ metal/ secuirty doors. 4. It is made from durable and high aluminium alloy material, durable for use 5. With feedback signal.Simple and fashion design, suitable most of doors 6. With no external interference, making it more stable and safer

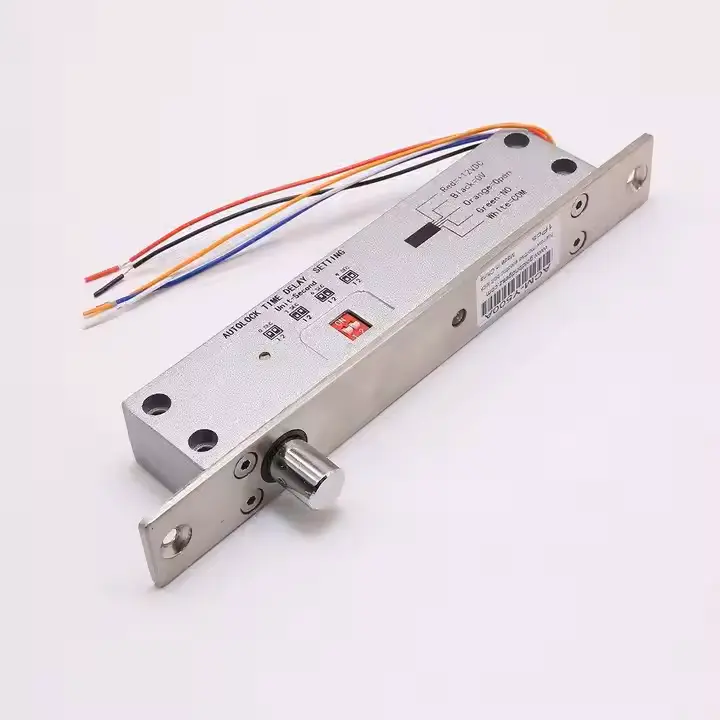

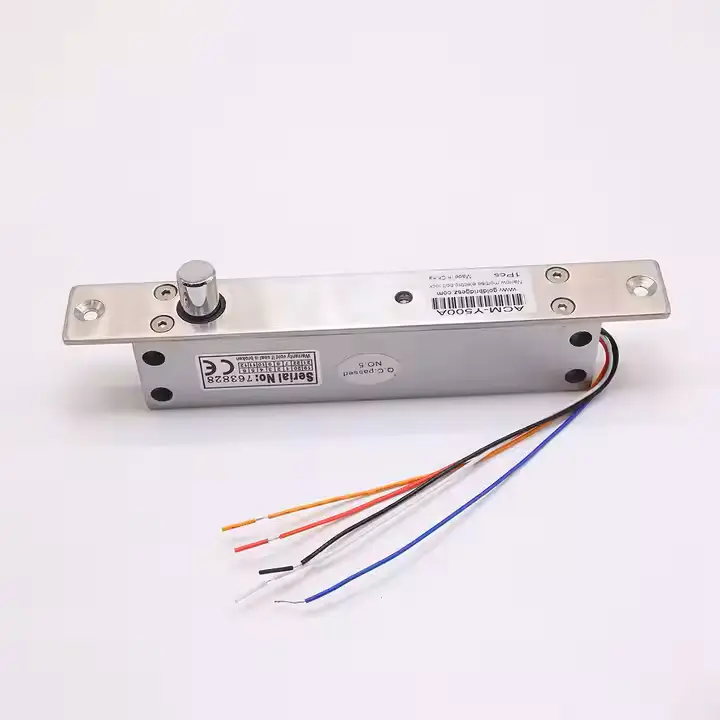

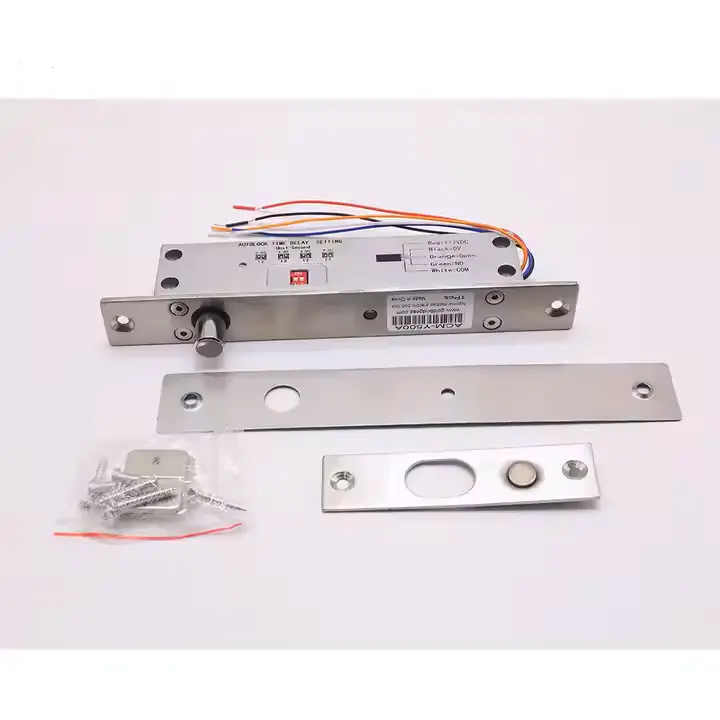

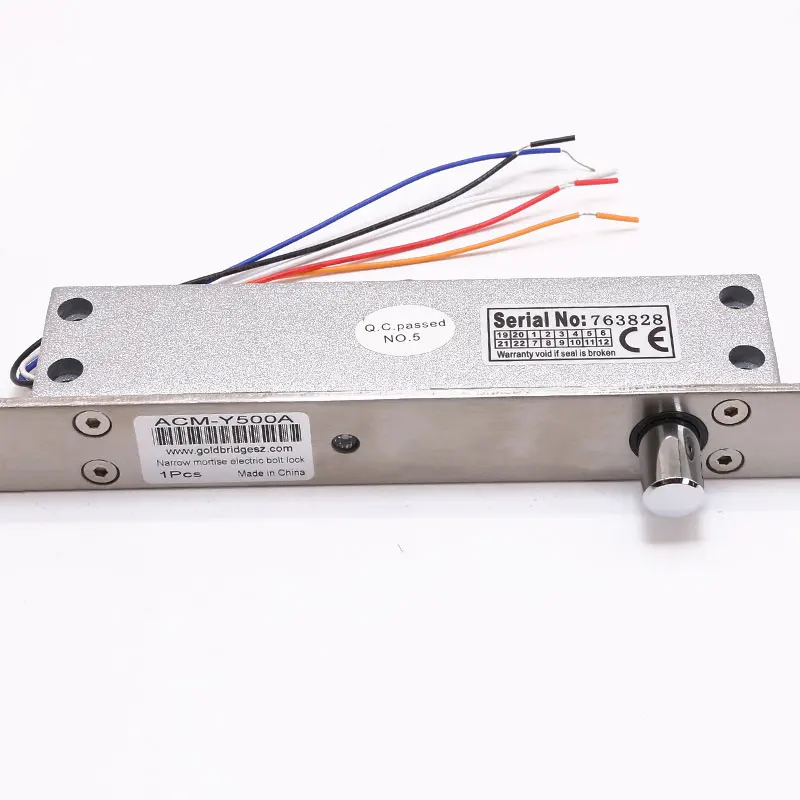

12V Stainless Steel Electric Narrow Door Bolt Mortise Lock Access Control Fail Safe Secure NC Electronic Lock
| Product Parameter | Parameter Description | ||
|---|---|---|---|
| Feature | Time-delay, Feedback Signal, NC | ||
| Face Plate | 205L x 30 x 38 (mm) | ||
| Voltage | 12VDC+ | ||
| Start Current | (start) 950mA, (standby) 120mA | ||
| Suitable For | Wooden doors, glass doors, metal doors, fireproof doors | ||
| Signal Output | Door status Output, NC/COM | ||
| Safety Function | Double protection currents, protection against damage, built-in voltage spike suppressor | ||
| Patent Design | Low temperature | ||
| Warranty | 12 months (except man-made faults) | ||
| Special Designed | 500,000 cycles | ||
| Weight | 550g | ||
Tab 2
Tab 3
12V Stainless Steel Electric Narrow Door Bolt Mortise Lock Access Control Fail Safe Secure NC Electronic Lock
1. 100% brand new and high quality 2. Secure mode: The door will lock while supplied with power, or without power for your choice 3. Especially suitable for glass/ wooden/ metal/ secuirty doors. 4. It is made from durable and high aluminium alloy material, durable for use 5. With feedback signal.Simple and fashion design, suitable most of doors 6. With no external interference, making it more stable and safer
| Product Parameter | Parameter Description | ||
|---|---|---|---|
| Feature | Time-delay, Feedback Signal, NC | ||
| Face Plate | 205L x 30 x 38 (mm) | ||
| Voltage | 12VDC+ | ||
| Start Current | (start) 950mA, (standby) 120mA | ||
| Suitable For | Wooden doors, glass doors, metal doors, fireproof doors | ||
| Signal Output | Door status Output, NC/COM | ||
| Safety Function | Double protection currents, protection against damage, built-in voltage spike suppressor | ||
| Patent Design | Low temperature | ||
| Warranty | 12 months (except man-made faults) | ||
| Special Designed | 500,000 cycles | ||
| Weight | 550g | ||
