  3. SONOFF ZBM5-3C-80W Type Zigbee Smart Wall Switch Supports No Neutral and Neutral Wire Detach Relay Mode Works with Home Assistant
-

SONOFF ZBM5-3C-80W Type Zigbee Smart Wall Switch Supports No Neutral and Neutral Wire Detach Relay Mode Works with Home Assistant

(0 review)

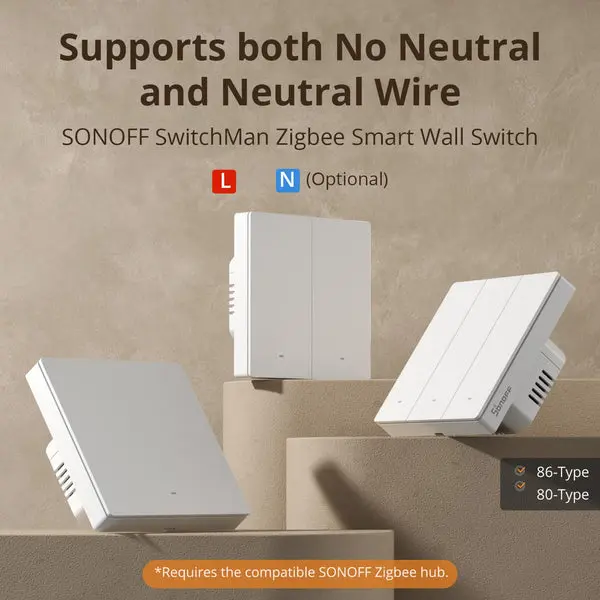

【Supports Both No Neutral & With Neutral Wire】Designed to fit your home’s wiring setup, the ZBM5 connects and uses effortlessly whether a neutral wire is available or not.

【Compatible with Multiple Zigbee Hubs】Easily integrates with SONOFF Zigbee hubs like SONOFF NSPanel Pro, iHost, ZB Bridge-P/U, and ZBDongle-E/P for seamless smart home control.

【Works with Home Assistant】Perfect for DIY automation lovers—integrates smoothly with third-party open-source platforms, such as Home Assistant via compatible Zigbee dongles (e.g., SONOFF ZBDongle-P/E).

【Detach Relay Mode】With this function enabled, you can still remotely control your smart devices through "Smart Scenes" even when the physical switch is turned off. *Supports connecting smart lights only in the neutral required mode.

【Full Smart Features】Enjoy remote app control, voice commands, scheduling, smart scenes, and more for a truly convenient smart home experience.

₹ 2,898.00 ₹ 2,898.00 Tax Excluded ₹ 15,000.00
₹ 2,898.00 Tax Excluded ₹ 15,000.00

Not Available For Sale

(₹ 0.00 / Units)

    This combination does not exist.

    Pre-Order

    ​
    ​ Invalid email
    ​ We'll notify you once the product is back in stock.
    ​ Added to your wishlist
    Contact Us

    🛡️ 1-Year Warranty + Dedicated Support Need help or have questions? Our team is always here for you! 📞 9392198424 | ✉️ support@sonoff.in
      Free speedy delivery                         PORTER Courier On-Call Delivery
    9392198424

    ​

    Buy it with

    Check out what's new in our company !

    Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.


    ​


    ​


    ​

    SONOFF BASICR2

    Directly Compatible with the Majority Wiring

    The ZBM5 is designed to adapt to your home’s wiring configuration. Whether or not a neutral wire is available, it can be easily connected and used.

    SONOFF ZBM5

    Easily install and enjoy smart life.

    Put Smart Home Control in Your Hands

    You can view the switch status anytime in the eWeLink app or remotely control the switches, managing your home’s switches from your phone.

    Schedule Lights Off for a Healthier Routine

    Set a timer in the app to turn off the lights automatically in the living room and bedroom late at night, ensuring a peaceful sleep.
    ZBM5

    Smart Scenes for a Convenient Life

    Zigbee Two-Way Control

    Set up smart scenes with the Zigbee wireless button to control the bedroom light together.

    Automation

    Work with the Zigbee sensor to automatically turn lights on or off for you.

    Detach Relay For Wiring Smart Bulb

    With the detach relay enabled, smart lights won’t lose power when the wall switch is turned off, allowing them to remain smart at all times.
    *Supports connecting smart lights only in the neutral required mode.

    Effortless Control with Your Voice

    You can control the switch when you’re busy with a simple voice command.
    ZBM5
    *The device must be added to a compatible SONOFF hub, and after binding a third-party account in the eWeLink app, voice control through a smart speaker will be enabled.

    A Piece of Open-Source Platform Solution

    Easily integrate your device into open-source platforms via Zigbee2MQTT or ZHA, creating a smart home solution that works seamlessly with devices from various manufacturers.

    Feature Overview

    Wiring Instructions

    *The wiring terminals and diagram are identical for both 80 and 86 specifications.
    *When powered on for the first time, the wiring will be automatically identified and switched to the corresponding mode. For subsequent changes to the wiring switching mode, refer to the user manual.
    ZBM5

    Applicable Mounting Box

    ZBM5

    4 Steps to Use

    Easily set up. Download the APP, scan the QR code to connect with the gateway and control!
    *Requires the compatible SONOFF Zigbee hub.

    Package

    Specs & User Manual

    ZBM5 80/86 Type is a Zigbee smart wall switch (1/2/3 gang) with flexible wiring for both neutral-required wire mode and no neutral-required wire mode setups. In "neutral-required" mode, it works as a Zigbee router, supports smart lights, and enables detach relay mode. In "no-neutral" mode, it acts as an end device (min. 3W load, no smart lights supported). Features include remote control, timers, smart scenes, and other smart control methods. Compatible with Home Assistant via ZBDongle using ZHA or Zigbee2MQTT. User Manual (PDF)
    Model
    ZBM5-1C-86W/ZBM5-2C-86W/ZBM5-3C-86W ZBM5-1C-80W/ZBM5-2C-80W/ZBM5-3C-80W
    Rating
    1C: 100-240V~50/60Hz 10A Max Resistive load 2C: 100-240V~50/60Hz 10A/gang,Total 10A Max Resistive load 3C: 100-240V~50/60Hz 10A/gang,Total 10A Max Resistive load
    LED
    1C: 400W@240V, 200W@100V 2C: 400W@240V/gang, 200W@100V/gang, Total400W@240V, 200W@100V 3C: 400W@240V/gang, 200W@100V/gang, Total400W@240V, 200W@100V
    Min.load
    3W(No Neutral Required)
    Number of gangs
    1-gang/2-gang/3-gang

    Tab 2
    Tab 3

    Specifications

    Brand Sonoff
