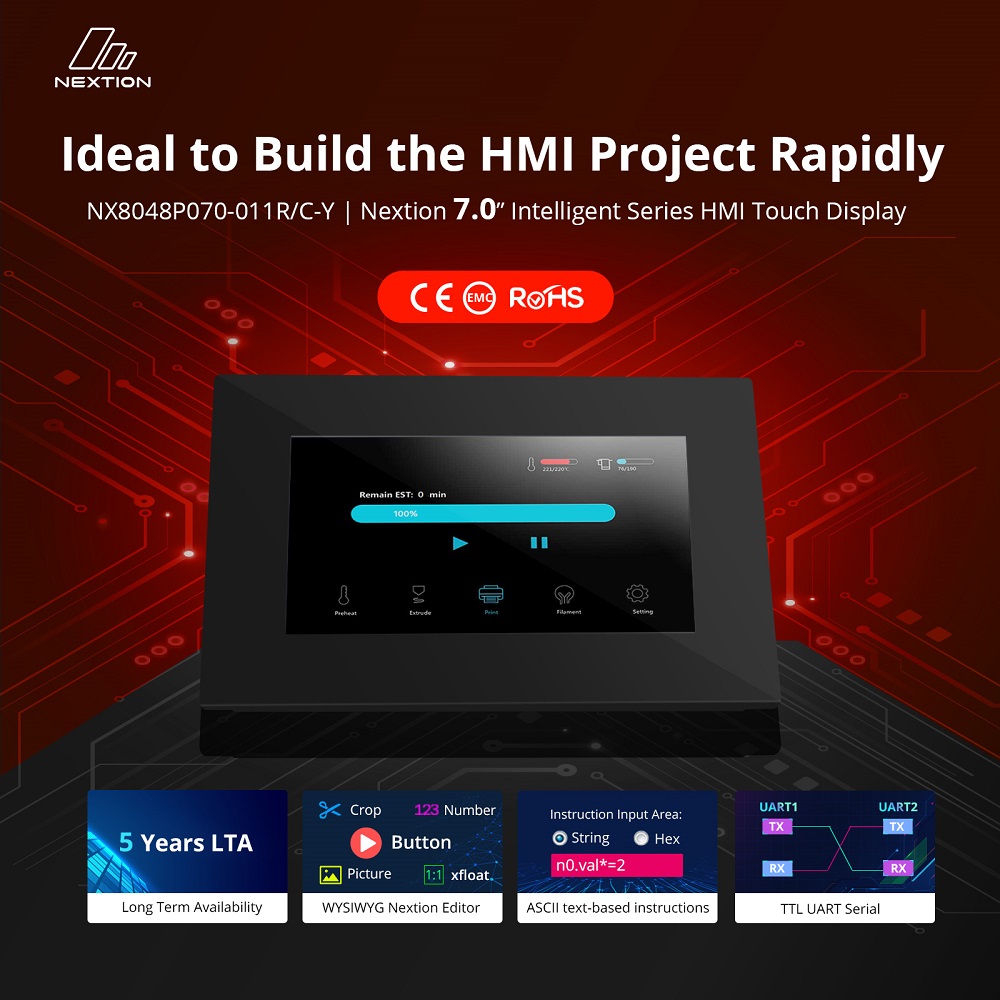

NEXTION NX8048P070-011R-Y – 7.0 inch Intelligent Series USART HMI Resistive Touch Display with Enclosure
Nextion Intelligent Series NX8048P070-011C is Intelligent series 7.0” capacitive HMI touchscreens without enclosure and SKU is IM190402004
NX8048P070-011R are Intelligent series 7.0” resistive HMI touchscreens without enclosure ans SKU is IM190402003
Alternative Products
These other products might interest you
Your Dynamic Snippet will be displayed here... This message is displayed because you did not provide both a filter and a template to use.
Nextion Editor Overview
Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.
Versatile Character Encoding
With several character encoding, you are able to create the HMI project in your language characters and strings.
Fonts and Text Styling
The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of “Arial” with Height “24” and Encoding “UTF-8”
25+Amazing WYSIWYG Components
Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way
Component Attribute Setting
The component attribute setting gives you the options to design all the aspects of the component that you need.
Free Simulator Debug
Debug the HMI project at any time even without the Nextion Display.The instruction input area allows you to send any Nextion commands to check the feedback and interactions.
Nextion Operational Commands
The operational commands allow users to program the HMI interactions by coding in Events windows
Text-based Instruction Set
Simple ASCll text based instructions will dramatically reduce your HMI project development workloads
Support Simple Assignment Operators
To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.
In The Box
-
– NX8048P070-011C HMI Display*1 or NX8048P070-011R HMI Display*1
- – XH2.54 4P Wire*1
- – Power Supply Test Board*1
NX8048P070-011C Certification and Documents
- – Dimension
- – Instruction Set
- – Editor Guide
- – LTA Announcement
- – CE Certification
- – ROHS Certification
NX8048P070-011R Certification and Documents
- – Dimension
- – Instruction Set
- – Editor Guide
- – LTA Announcement
- – CE Certification
- – ROHS Certification
Nextion Technical Support
