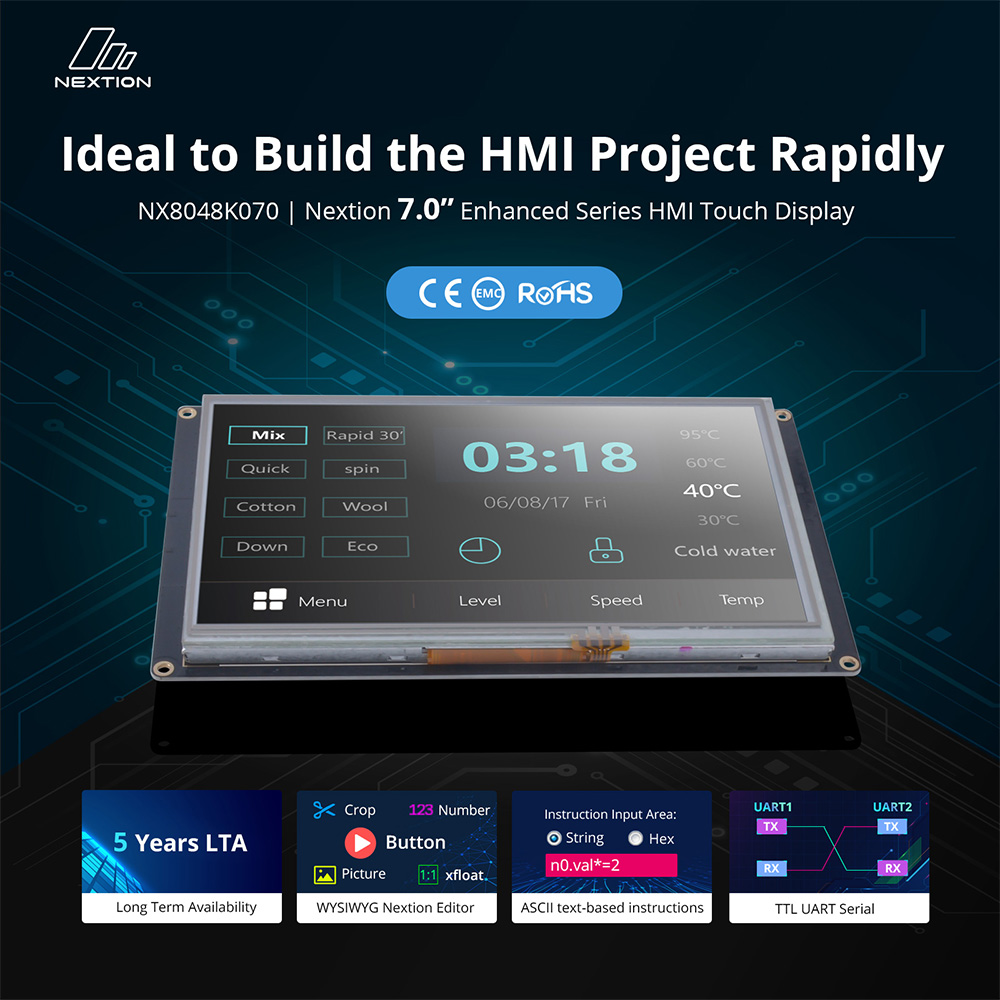

Nextion NX8048K070–7.0” inch Enhanced Series HMI Touch Display Without enclosure
The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock
- Supports built-in RTC
- Supports GPIO
- SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
- Color: 65K (65536) colors
- Resolution: 800×480 pixel
- MPN:IM160511008
MRP: ₹20,000/-
-

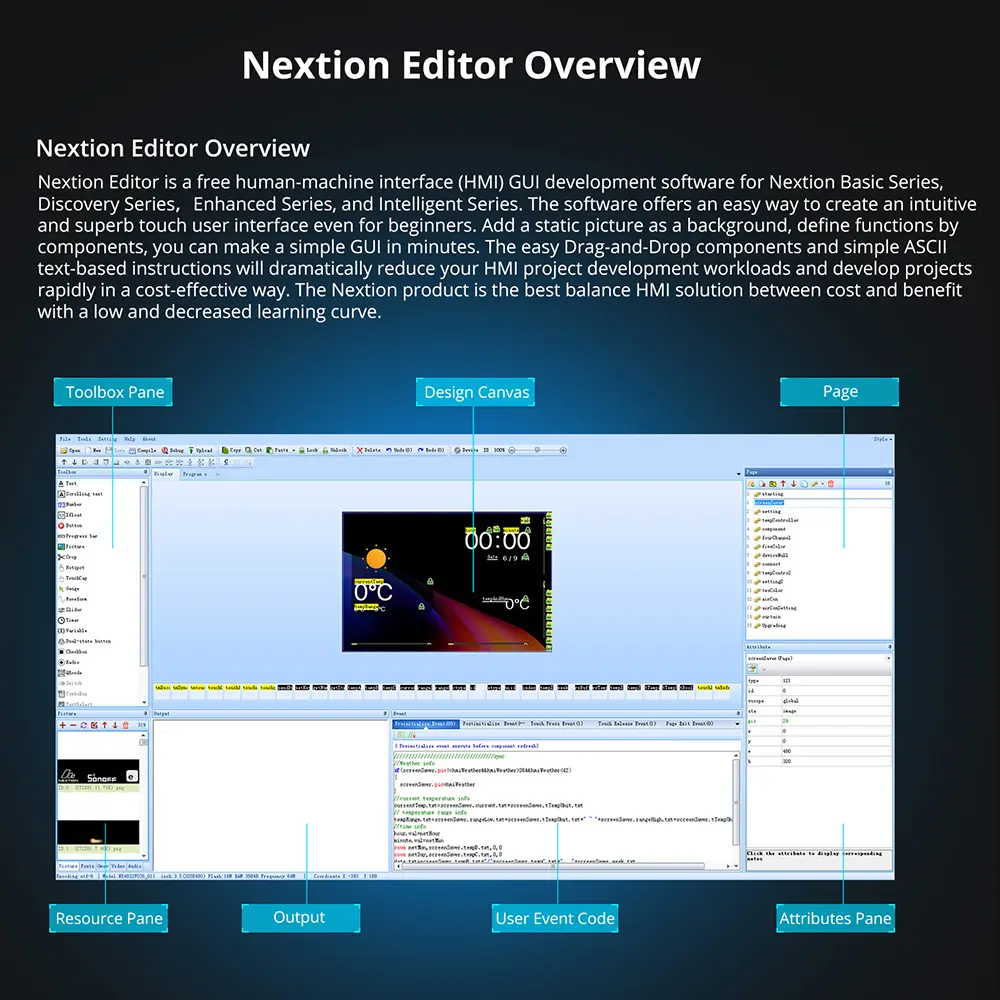

Nextion Editor Overview
Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

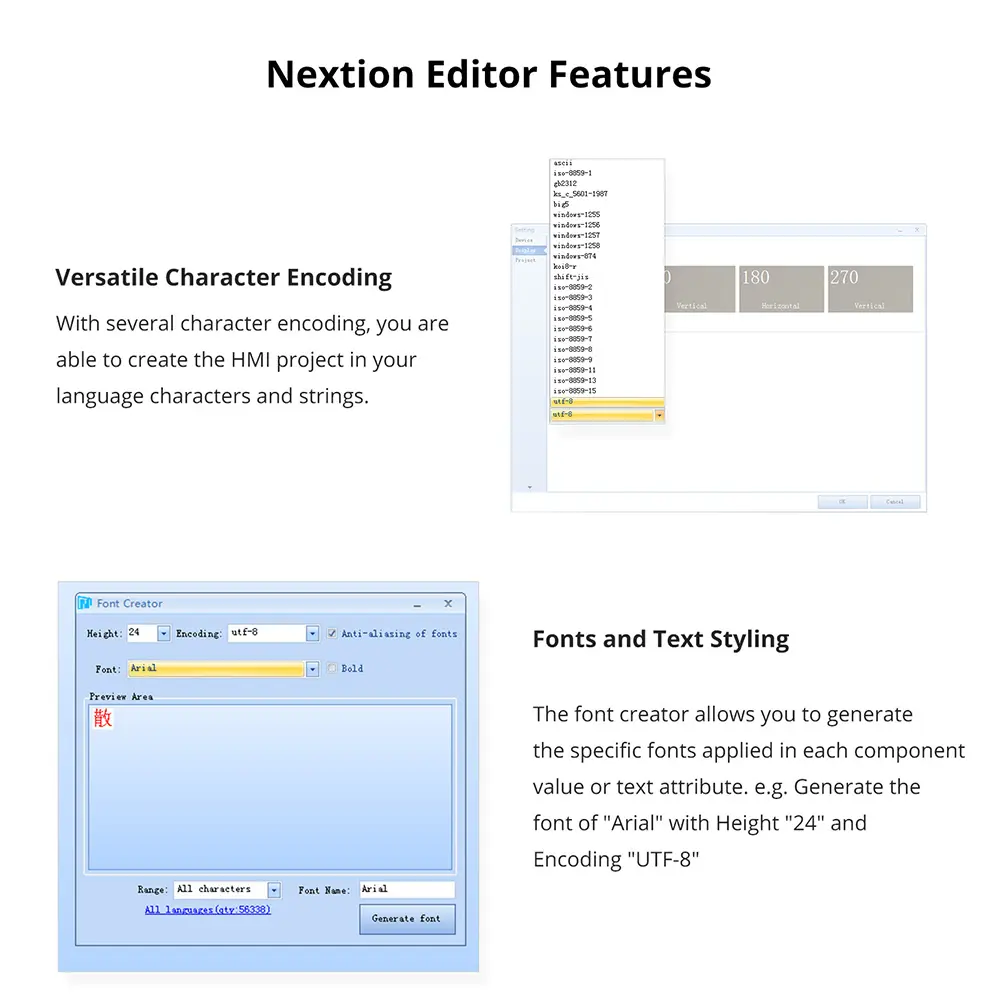

Nextion Editor Features
Versatile Character Encoding
With several character encoding, you are able to create the HMI project in your language characters and strings.
Fonts and Text Styling
The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of “Arial” with Height “24” and Encoding “UTF-8”
25+Amazing WYSIWYG Components
Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way
Component Attribute Setting
The component attribute setting gives you the options to design all the aspects of the component that you need.
Free Simulator Debug
Debug the HMI project at any time even without the Nextion Display. The instruction input area allows you to send any Nextion commands to check the feedback and interactions.
Nextion Operational Commands
The operational commands allow users to program the HMI interactions by coding in Events windows
Text-based Instruction Set
Simple ASCll text based instructions will dramatically reduce your HMI project development workloads
Support Simple Assignment Operators
To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.
Package includes
1× 7.0″ Nextion Enhanced HMI Display 1× power supply test board 1× 4-pin grove cableDocuments
Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.
Overview
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. With the Nextion Editor software (Official Download), users are able to create and design their own interfaces for Nextion display. The Nextion Enhanced series are more powerful compared to the Nextion Basic series. In addition to a faster MCU clock, the Enhanced series support: built-in RTC, 1K EEPROM for user data, 8 digital GPIO, larger Flash capacity, and more RAM (for models 3.5″ and higher). Package includes: Nextion Display, connecting wire, a power supply test board. Go Shopping: Resistive without enclosure NX8048K070 (IM160511008) Go Shopping: Resistive/Capacitive with enclosure NX8048K070-011R/C (IM170428001/IM170421001) Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.
Nextion Models
| Nextion Type | Enhanced Series |
| Nextion Models | NX8048K070 (Resistive touchscreen without enclosure) |
| NX8048K070_011R (Resistive touchscreen with enclosure) | |
| NX8048K070_011C (C: Capacitive Multi-touch screen with enclosure) |
Specifications
| Data | Description | |
| Color | 64K 65536 colors | 16 bit 565, 5R-6G-5B |
| Layout size | 181(L)×108(W)×9.3(H) | NX8048K070 |
| 181(L)×108(W)×9.3(H) | NX8048K070_011R | |
| 181(L)×108(W)×9.3(H) | NX8048K070_011C | |
| Visual Area (V.A.) | 164.90mm(L)×100.00mm(W) | |
| Active Area (A.A.) | 154.08mm(L)×85.92mm(W) | |
| Resolution | 800×480 pixel | Also can be set as 480×800 |
| Touch type | Resistive | |
| Touches | > 1 million | |
| Backlight | LED | |
| Backlight lifetime (Average) | >30,000 Hours | |
| Brightness | 230 nit | 0% to 100%, the interval of adjustment is 1% |
| Weight | 268g (NX8048K070) | |
| 598g (NX8048K070_011R) | ||
| 598g (NX8048K070_011C) |
Electronic Characteristics
| Test Conditions | Min | Typical | Max | Unit | |
| Operating Voltage | 4.75 | 5 | 7 | V | |
| Operating Current | VCC=+5V, Brightness is 100% | – | 510 | – | mA |
| SLEEP Mode | – | 15 | – | mA | |
| Power supply recommend：5V, 2.0A, DC | |||||
Working Environment & Reliability Parameter
| Test Conditions | Min | Typical | Max | Unit | |
| Working Temperature | 5V, Humidity 60% | -20 | 25 | 70 | °C |
| Storage Temperature | -30 | 25 | 85 | °C | |
| Working Humidity | 25°C | 10% | 60% | 90% | RH |
Interfaces Performance
| Test Conditions | Min | Typical | Max | Unit | |
| Serial Port Baudrate | Standard | 2400 | 9600 | 115200 | bps |
| Output High Voltage | IOH=-1mA | 3.0 | 3.2 | V | |
| Output Low Voltage | IOL=1mA | 0.1 | 0.2 | V | |
| Input High Voltage | 2.0 | 3.3 | 5.0 | V | |
| Input Low Voltage | -0.7 | 0.0 | 1.3 | V | |
| Serial Port Mode | TTL | ||||
| Serial Port | 4Pin_2.54mm | ||||
| USB interface | NO | ||||
| SD card socket | Yes (FAT32 format), support maximum 32G Micro SD Card * microSD card socket is exclusively used to upgrade Nextion firmware /HMI design | ||||
| Extended IO | 8 Digital extended GPIO | ||||
| IO0-IO7 support input, output and component binding event * IO pin / ports are not exclusive, limit current draw to 1mA recommended | |||||
| IO4-IO7 support PWM | |||||
| RTC | built-in RTC support (Battery type: CR1220) | ||||
Memory Features
| Memory Type | Test Conditions | Min | Typical | Max | Unit |
| FLASH Memory | Store fonts and images | 32 | MB | ||
| User Storage | EEPROM | 1024 | BYTE | ||
| RAM Memory | Store variables | 8192 | BYTE | ||
| Instruction Buffer | Instruction Buffer | 1024 | BYTE |
Product Dimensions
7.0”_Nextion Display_Dimension 7.0”_enclosure_DimensionProduct Certificates
CE-EMC, RoHSEnclosure Dimensions
Enclosure Overview
Enclosure Installation
Tab 3
-
Nextion Editor Overview
Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Discovery Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCll text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.
Nextion Editor Features
Versatile Character Encoding
With several character encoding, you are able to create the HMI project in your language characters and strings.
Fonts and Text Styling
The font creator allows you to generate the specific fonts applied in each component value or text attribute. e.g.Generate the font of “Arial” with Height “24” and Encoding “UTF-8”
25+Amazing WYSIWYG Components
Easy-to-use components to customized GUI at screen side allow you to develop projects rapidly in a cost-effective way
Component Attribute Setting
The component attribute setting gives you the options to design all the aspects of the component that you need.
Free Simulator Debug
Debug the HMI project at any time even without the Nextion Display. The instruction input area allows you to send any Nextion commands to check the feedback and interactions.
Nextion Operational Commands
The operational commands allow users to program the HMI interactions by coding in Events windows
Text-based Instruction Set
Simple ASCll text based instructions will dramatically reduce your HMI project development workloads
Support Simple Assignment Operators
To handle the calculation and assignment for the text and Numeric data, the simple assignment operators help.
Package includes
1× 7.0″ Nextion Enhanced HMI Display 1× power supply test board 1× 4-pin grove cableDocuments
Please visit our wiki page for more information about this product. Any suggestions for improvement, such as correcting errors, adding more demo codes or tutorials, will be highly appreciated.
Overview
Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube. With the Nextion Editor software (Official Download), users are able to create and design their own interfaces for Nextion display. The Nextion Enhanced series are more powerful compared to the Nextion Basic series. In addition to a faster MCU clock, the Enhanced series support: built-in RTC, 1K EEPROM for user data, 8 digital GPIO, larger Flash capacity, and more RAM (for models 3.5″ and higher). Package includes: Nextion Display, connecting wire, a power supply test board. Go Shopping: Resistive without enclosure NX8048K070 (IM160511008) Go Shopping: Resistive/Capacitive with enclosure NX8048K070-011R/C (IM170428001/IM170421001) Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.
Nextion Models
| Nextion Type | Enhanced Series |
| Nextion Models | NX8048K070 (Resistive touchscreen without enclosure) |
| NX8048K070_011R (Resistive touchscreen with enclosure) | |
| NX8048K070_011C (C: Capacitive Multi-touch screen with enclosure) |
Specifications
| Data | Description | |
| Color | 64K 65536 colors | 16 bit 565, 5R-6G-5B |
| Layout size | 181(L)×108(W)×9.3(H) | NX8048K070 |
| 181(L)×108(W)×9.3(H) | NX8048K070_011R | |
| 181(L)×108(W)×9.3(H) | NX8048K070_011C | |
| Visual Area (V.A.) | 164.90mm(L)×100.00mm(W) | |
| Active Area (A.A.) | 154.08mm(L)×85.92mm(W) | |
| Resolution | 800×480 pixel | Also can be set as 480×800 |
| Touch type | Resistive | |
| Touches | > 1 million | |
| Backlight | LED | |
| Backlight lifetime (Average) | >30,000 Hours | |
| Brightness | 230 nit | 0% to 100%, the interval of adjustment is 1% |
| Weight | 268g (NX8048K070) | |
| 598g (NX8048K070_011R) | ||
| 598g (NX8048K070_011C) |
Electronic Characteristics
| Test Conditions | Min | Typical | Max | Unit | |
| Operating Voltage | 4.75 | 5 | 7 | V | |
| Operating Current | VCC=+5V, Brightness is 100% | – | 510 | – | mA |
| SLEEP Mode | – | 15 | – | mA | |
| Power supply recommend：5V, 2.0A, DC | |||||
Working Environment & Reliability Parameter
| Test Conditions | Min | Typical | Max | Unit | |
| Working Temperature | 5V, Humidity 60% | -20 | 25 | 70 | °C |
| Storage Temperature | -30 | 25 | 85 | °C | |
| Working Humidity | 25°C | 10% | 60% | 90% | RH |
Interfaces Performance
| Test Conditions | Min | Typical | Max | Unit | |
| Serial Port Baudrate | Standard | 2400 | 9600 | 115200 | bps |
| Output High Voltage | IOH=-1mA | 3.0 | 3.2 | V | |
| Output Low Voltage | IOL=1mA | 0.1 | 0.2 | V | |
| Input High Voltage | 2.0 | 3.3 | 5.0 | V | |
| Input Low Voltage | -0.7 | 0.0 | 1.3 | V | |
| Serial Port Mode | TTL | ||||
| Serial Port | 4Pin_2.54mm | ||||
| USB interface | NO | ||||
| SD card socket | Yes (FAT32 format), support maximum 32G Micro SD Card * microSD card socket is exclusively used to upgrade Nextion firmware /HMI design | ||||
| Extended IO | 8 Digital extended GPIO | ||||
| IO0-IO7 support input, output and component binding event * IO pin / ports are not exclusive, limit current draw to 1mA recommended | |||||
| IO4-IO7 support PWM | |||||
| RTC | built-in RTC support (Battery type: CR1220) | ||||
Memory Features
| Memory Type | Test Conditions | Min | Typical | Max | Unit |
| FLASH Memory | Store fonts and images | 32 | MB | ||
| User Storage | EEPROM | 1024 | BYTE | ||
| RAM Memory | Store variables | 8192 | BYTE | ||
| Instruction Buffer | Instruction Buffer | 1024 | BYTE |
Product Dimensions
7.0”_Nextion Display_Dimension 7.0”_enclosure_DimensionProduct Certificates
CE-EMC, RoHSEnclosure Dimensions
Enclosure Overview
Enclosure Installation
Tab 3
