Search “eWeLink” in APP Store for iOS version or Google play for Android version.
2. Schematic diagram of equipment installation.
In default mode, it can be powered up with 5V-24V DC, or 5V DC.
You may change the device to isolated mode, two resistors must be removed first.
3. Add Device
1. Power up the device.
2. Press the button for 7 seconds until the green LED fast blinks.
Go to eWeLink, click “+”.
If the led blinks like this:
please select Quick Pairing Mode (TOUCH), tap Next.
If the led blinks like this:

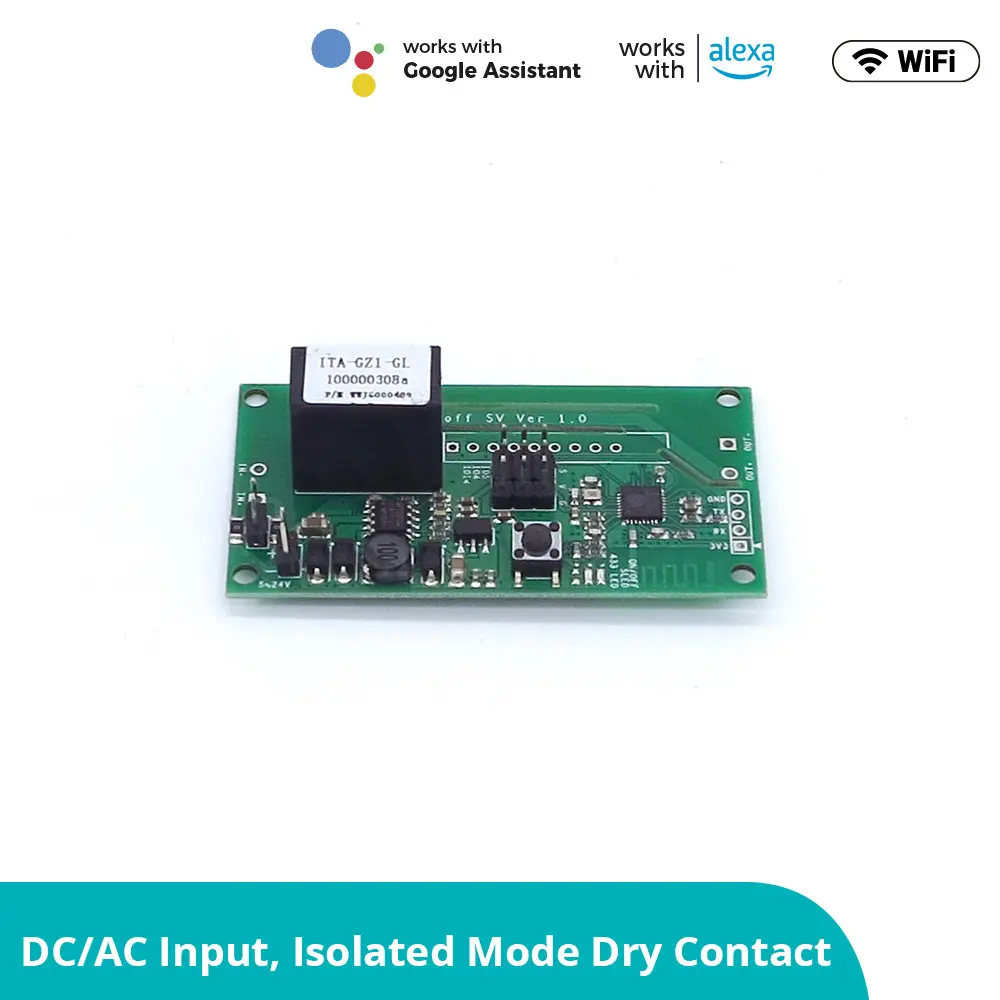

Sonoff SV Safe DIY a smart door lock WiFi Wireless Switch Smart Home Module Support Secondary Development
- Remote ON/OFF–Turn electrical devices on/off from anywhere
- Low Power Supply–5-24V DC low voltage input
- App Support –Free iOS and Android mobile App eWeLink
- Sync Status–Real-time device status provided to App
- Timing–Set scheduled/countdown timers to turn on/off at specified time
- Share Control– Control your smart home together with your family
- Scene–Turn on/off a gang of devices with one tap
- Smart Scene–Triggered on/off by temp, hum or other environmental conditions from sensor
- Compatibility –Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest
New device for makers who want to build their own smart home system.
Sonoff is a universal switch for your smart home system to remotely turn on / off appliances. To work with the Sonoff SC, you will dig more possibilities. Learn more about Sonoff SC
MRP: ₹5,500/-
Overview
Sonoff SV is a low voltage switch. The low voltage light switch supports 5-24V power supply. Power supply separation enables it to control both AC and DC power, although some welding is required for this purpose. It has GIPO reserved to support secondary development. This product does not have 433 RF function and shell. Sonoff SV low voltage WiFi switch is an affordable device that provides customers with smart home control. The low voltage WiFi switch is a WiFi based wireless switch that can connect to a wide range of appliances. Sonoff SV low voltage remote switch transmits data to a cloud platform through the WiFi router, which enables customers to remotely control all the connected appliances, via the mobile application eWeLink. The cloud server of Sonoff SV is Amazon AWS global server. Sonoff SV low voltage wireless remote switch makes all home appliances smart. As long as the mobile has network, customers can remotely control the appliances by turning them on off from anywhere at any time. Another feature available is to set timing schedules for the appliances, which can include countdown, scheduled on/off, and can thus, help customers maintain an easy life. The mobile application eWeLink enables customers to control the appliances easily. The iOS version of the application can be downloaded in App Store while the Android version in Google Play. ESP8266 DatasheetWorks With Amazon Alexa
Check out the amazing features of Sonoff below: New device for makers who want to build their own smart home system.
SONOFF SV is a low voltage switch. The low voltage light switch supports 5-24V power supply. Power supply separation enables it to control both AC and DC power, although some welding is required for this purpose. It has GIPO reserved to support secondary development. This product does not have 433 RF function and shell.
SONOFF SV low voltage WiFi switch is an affordable device that provides customers with smart home control. The low voltage WiFi switch is a WiFi based wireless switch that can connect to a wide range of appliances. Sonoff SV low voltage remote switch transmits data to a cloud platform through the WiFi router, which enables customers to remotely control all the connected appliances, via the mobile application eWeLink. The cloud server of Sonoff SV is Amazon AWS global server.
SONOFF SV low voltage wireless remote switch makes all home appliances smart. As long as the mobile has network, customers can remotely control the appliances by turning them on off from anywhere at any time. Another feature available is to set timing schedules for the appliances, which can include countdown, scheduled on/off, and can thus, help customers maintain an easy life.
The mobile application eWeLink enables customers to control the appliances easily. The iOS version of the application can be downloaded in App Store while the Android version in Google Play.
ESP8266 Datasheet
Features
- Remote control the connected device on app from anywhere
- Tracking real-time device status on app
- Supports max 8 enabled schedule/countdown timers
- Reserves GIPO to support secondary development
- Works with Amazon Echo, Echo Dot, Amazon Tap
- Works with Google Home, Google Home Mini, Google Nest
- Works with IFTTT
Specifications
- Power supply: 5~24V
- Weight: 15g If you want to learn more about this product, please click this wiki link.
Documents
User ManualFeatures
-
- Remote control the connected device on app from anywhere
- Tracking real-time device status on app
- Supports max 8 enabled schedule/countdown timers
- Reserves GIPO to support secondary development
- Works with Amazon Echo, Echo Dot, Amazon Tap
- Works with Google Home, Google Home Mini, Google Nest
- Works with IFTTT
-
-
Hi, welcome to use Sonoff SV! Sonoff SV is a low power supply Sonoff version, which supports 5-24V input. 1. Download “eWeLink” app.
Search “eWeLink” in APP Store for iOS version or Google play for Android version.
2. Schematic diagram of equipment installation.
In default mode, it can be powered up with 5V-24V DC, or 5V DC.
You may change the device to isolated mode, two resistors must be removed first.
3. Add Device
1. Power up the device.
2. Press the button for 7 seconds until the green LED fast blinks.
Go to eWeLink, click “+”.
If the led blinks like this:
please select Quick Pairing Mode (TOUCH), tap Next.
If the led blinks like this:
a. If the device firmware is 1.6.0 or higher, please select Quick Pairing Mode (TOUCH). Otherwise, it will fail to add the device. Click Next.b. If the firmware of above models is lower than 1.6.0, please select Compatible Pairing Mode (AP) icon, click Next. iOS users should go to Phone Setting>WiFi>connect the WiFi begins with ITEAD-******, enter default password 12345678. Go back to eWeLink, click next.3. It will auto-search and connect smart home device. 4. Input your home SSID & password: 4.1 If no password, keep it blank. 4.2 Now eWeLink only support 2.4G WiFi communication protocol, 5G-WiFi is not supported. 5. Next, eWelink register and add it to your account，it takes 1-3 minutes. When this complete, you can give your device a name. 6. Name the device to complete. Maybe the device is “Offline” on eWeLink, for the device needs 1 minute to connect to your router and server. When the green LED on, the device is “Online”, if eWeLink shows still “Offline”, please close eWeLink and re-open. 4. APP Features 1. WiFi remote control and device state Turn on/off by tapping on device icon. Device state always simultaneous display on APP. 2. Share Control The owner can share the devices to other eWeLink accounts. While sharing devices, both should stay online on eWeLink. Because if the account you want to share is not online, he/she will not receive the invitation message. How to make it possible? Firstly click Share, input the eWeLink account (phone number or email address) you want to share, tick the timer permissions (edit/delete/change/enable) you want to give, then click Next. The other account will receive an invitation message. Click Accept, the device has shared successfully. The other user will have access to control the device. 3. Timing Support max 8 enabled single/repeat/countdown timing schedules each device. 4. Scene/Smart Scene Scene allows triggering on/off your devices automatically. Scene Settings is in the upper right corner of Device List. You can set up scenes or smart scenes to trigger on/off the Sonoff SV. Users should select “Click to execute” in the condition, add different existing devices, name the scene and save it. 5. Security mechanism One device one owner. Other people can not add the devices that have already been added. If you want to add your device to another account, don’t forget to delete it first. 6. Update It will auto-remind you of new firmware or version. Please update as soon as you can. 5. Problems and solutions Read the detailed FAQ on Itead Smart Home Forum. If below answers can’t solve your problem, please submit a feedback on eWeLink. 1. My device has added successfully but stays “Offline”. Answers: The newly added device need 1-2 min to connect to your router and the Internet. If it stays offline for a long time, please judge the problem by the green led status: 1.1. Green led quickly blinks one time and repeats, which means device failed to connect to the router. The reason may be you have entered wrong WiFi password or your device is too far away from the router, which causes a weak WiFi signal. The device can not be added to the 5G-wifi-router, only the 2.4G-wifi is OK. At last, make sure that your router is MAC-open. 1.2. Green led slowly blinks one time and repeats, which means the device has connected to router and server but failed to be added to the device list. Then power on the device again, if it still not working, just add the device again. 1.3. Green led quickly blinks twice and repeats, this means the device has connected to the router but failed to connect to the server. Then please confirm your WiFi router works normally. 2. Why the APP can’t find the device in pairing status? Answers: That’s because of your phone’s cache. Please close the WLAN of your phone then open it after a minute. At the same time, please power off the device if you can, then power up to try again. 3. My WiFi is expired, can I connect the devices to LAN? Answers: the Sonoff SV supports to be controlled by LAN(Update in 15/10/2017, LAN function has been stopped).
-
Tab 2
Tab 3
Overview
Sonoff SV is a low voltage switch. The low voltage light switch supports 5-24V power supply. Power supply separation enables it to control both AC and DC power, although some welding is required for this purpose. It has GIPO reserved to support secondary development. This product does not have 433 RF function and shell. Sonoff SV low voltage WiFi switch is an affordable device that provides customers with smart home control. The low voltage WiFi switch is a WiFi based wireless switch that can connect to a wide range of appliances. Sonoff SV low voltage remote switch transmits data to a cloud platform through the WiFi router, which enables customers to remotely control all the connected appliances, via the mobile application eWeLink. The cloud server of Sonoff SV is Amazon AWS global server. Sonoff SV low voltage wireless remote switch makes all home appliances smart. As long as the mobile has network, customers can remotely control the appliances by turning them on off from anywhere at any time. Another feature available is to set timing schedules for the appliances, which can include countdown, scheduled on/off, and can thus, help customers maintain an easy life. The mobile application eWeLink enables customers to control the appliances easily. The iOS version of the application can be downloaded in App Store while the Android version in Google Play. ESP8266 DatasheetWorks With Amazon Alexa
Check out the amazing features of Sonoff below: New device for makers who want to build their own smart home system.
SONOFF SV is a low voltage switch. The low voltage light switch supports 5-24V power supply. Power supply separation enables it to control both AC and DC power, although some welding is required for this purpose. It has GIPO reserved to support secondary development. This product does not have 433 RF function and shell.
SONOFF SV low voltage WiFi switch is an affordable device that provides customers with smart home control. The low voltage WiFi switch is a WiFi based wireless switch that can connect to a wide range of appliances. Sonoff SV low voltage remote switch transmits data to a cloud platform through the WiFi router, which enables customers to remotely control all the connected appliances, via the mobile application eWeLink. The cloud server of Sonoff SV is Amazon AWS global server.
SONOFF SV low voltage wireless remote switch makes all home appliances smart. As long as the mobile has network, customers can remotely control the appliances by turning them on off from anywhere at any time. Another feature available is to set timing schedules for the appliances, which can include countdown, scheduled on/off, and can thus, help customers maintain an easy life.
The mobile application eWeLink enables customers to control the appliances easily. The iOS version of the application can be downloaded in App Store while the Android version in Google Play.
ESP8266 Datasheet
Features
- Remote control the connected device on app from anywhere
- Tracking real-time device status on app
- Supports max 8 enabled schedule/countdown timers
- Reserves GIPO to support secondary development
- Works with Amazon Echo, Echo Dot, Amazon Tap
- Works with Google Home, Google Home Mini, Google Nest
- Works with IFTTT
Specifications
- Power supply: 5~24V
- Weight: 15g If you want to learn more about this product, please click this wiki link.
Documents
User ManualFeatures
-
- Remote control the connected device on app from anywhere
- Tracking real-time device status on app
- Supports max 8 enabled schedule/countdown timers
- Reserves GIPO to support secondary development
- Works with Amazon Echo, Echo Dot, Amazon Tap
- Works with Google Home, Google Home Mini, Google Nest
- Works with IFTTT
-
-
Hi, welcome to use Sonoff SV! Sonoff SV is a low power supply Sonoff version, which supports 5-24V input. 1. Download “eWeLink” app.
Search “eWeLink” in APP Store for iOS version or Google play for Android version.
2. Schematic diagram of equipment installation.
In default mode, it can be powered up with 5V-24V DC, or 5V DC.
You may change the device to isolated mode, two resistors must be removed first.
3. Add Device
1. Power up the device.
2. Press the button for 7 seconds until the green LED fast blinks.
Go to eWeLink, click “+”.
If the led blinks like this:
please select Quick Pairing Mode (TOUCH), tap Next.
If the led blinks like this:
a. If the device firmware is 1.6.0 or higher, please select Quick Pairing Mode (TOUCH). Otherwise, it will fail to add the device. Click Next.b. If the firmware of above models is lower than 1.6.0, please select Compatible Pairing Mode (AP) icon, click Next. iOS users should go to Phone Setting>WiFi>connect the WiFi begins with ITEAD-******, enter default password 12345678. Go back to eWeLink, click next.3. It will auto-search and connect smart home device. 4. Input your home SSID & password: 4.1 If no password, keep it blank. 4.2 Now eWeLink only support 2.4G WiFi communication protocol, 5G-WiFi is not supported. 5. Next, eWelink register and add it to your account，it takes 1-3 minutes. When this complete, you can give your device a name. 6. Name the device to complete. Maybe the device is “Offline” on eWeLink, for the device needs 1 minute to connect to your router and server. When the green LED on, the device is “Online”, if eWeLink shows still “Offline”, please close eWeLink and re-open. 4. APP Features 1. WiFi remote control and device state Turn on/off by tapping on device icon. Device state always simultaneous display on APP. 2. Share Control The owner can share the devices to other eWeLink accounts. While sharing devices, both should stay online on eWeLink. Because if the account you want to share is not online, he/she will not receive the invitation message. How to make it possible? Firstly click Share, input the eWeLink account (phone number or email address) you want to share, tick the timer permissions (edit/delete/change/enable) you want to give, then click Next. The other account will receive an invitation message. Click Accept, the device has shared successfully. The other user will have access to control the device. 3. Timing Support max 8 enabled single/repeat/countdown timing schedules each device. 4. Scene/Smart Scene Scene allows triggering on/off your devices automatically. Scene Settings is in the upper right corner of Device List. You can set up scenes or smart scenes to trigger on/off the Sonoff SV. Users should select “Click to execute” in the condition, add different existing devices, name the scene and save it. 5. Security mechanism One device one owner. Other people can not add the devices that have already been added. If you want to add your device to another account, don’t forget to delete it first. 6. Update It will auto-remind you of new firmware or version. Please update as soon as you can. 5. Problems and solutions Read the detailed FAQ on Itead Smart Home Forum. If below answers can’t solve your problem, please submit a feedback on eWeLink. 1. My device has added successfully but stays “Offline”. Answers: The newly added device need 1-2 min to connect to your router and the Internet. If it stays offline for a long time, please judge the problem by the green led status: 1.1. Green led quickly blinks one time and repeats, which means device failed to connect to the router. The reason may be you have entered wrong WiFi password or your device is too far away from the router, which causes a weak WiFi signal. The device can not be added to the 5G-wifi-router, only the 2.4G-wifi is OK. At last, make sure that your router is MAC-open. 1.2. Green led slowly blinks one time and repeats, which means the device has connected to router and server but failed to be added to the device list. Then power on the device again, if it still not working, just add the device again. 1.3. Green led quickly blinks twice and repeats, this means the device has connected to the router but failed to connect to the server. Then please confirm your WiFi router works normally. 2. Why the APP can’t find the device in pairing status? Answers: That’s because of your phone’s cache. Please close the WLAN of your phone then open it after a minute. At the same time, please power off the device if you can, then power up to try again. 3. My WiFi is expired, can I connect the devices to LAN? Answers: the Sonoff SV supports to be controlled by LAN(Update in 15/10/2017, LAN function has been stopped).
-
Tab 2
Tab 3
Specifications
| Brand | Sonoff |
