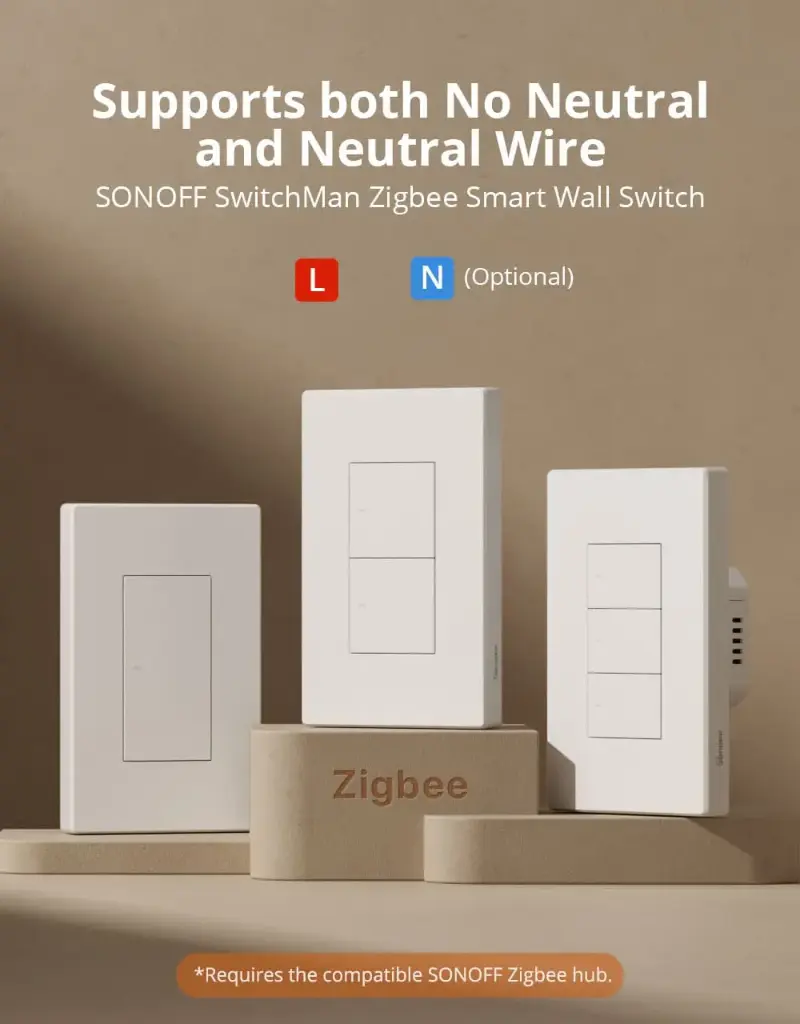

SONOFF ZBM5-1C-120WType Zigbee Smart Wall Switch Supports No Neutral and Neutral Wire Detach Relay Mode Works with Home Assistant
🛡️ 1-Year Warranty + Dedicated Support
Need help or have questions? Our team is always here for you!
📞 9392198424 | ✉️ support@sonoff.in
Free speedy delivery PORTER Courier On-Call Delivery
Overview
The ZBM5 is a Zigbee protocol mechanical smart wall switch, offering flexible wiring options for single live or neutral wire connections based on your home's wiring, available in 1/2/3 gang. ZBM5 supports App remote control, detach relay mode, timers, smart scene, etc, it is your reliable assistant for a smart home. ZBM5 can be configured based on your home wiring setup, supporting two modes: no neutral required mode and neutral required mode. In neutral required mode, ZBM5 operates as a Zigbee router, enhancing the robustness and coverage of your Zigbee network, supporting smart lights, and can be used with the detach relay function in the eWeLink app. With the detach relay enabled, smart lights won't lose power when the wall switch is turned off, allowing them to remain smart at all times. *Supports connecting smart lights only in the neutral required mode. In no neutral required mode, ZBM5 operates as a Zigbee end device. The external load must meet a minimum power requirement of 3W. It doesn't support smart lights, including but not limited to dimmable, color-changing, gradient, and lights with built-in controllers and LED strips. ZBM5 is compatible with Home Assistant using the ZBDongle via ZHA or Zigbee2MQTT integration, creating a smart home solution that works seamlessly with devices from various manufacturers.Documents
Video
Language: English Language: Portuguese
Tab 2
Tab 3
Overview
The ZBM5 is a Zigbee protocol mechanical smart wall switch, offering flexible wiring options for single live or neutral wire connections based on your home's wiring, available in 1/2/3 gang. ZBM5 supports App remote control, detach relay mode, timers, smart scene, etc, it is your reliable assistant for a smart home. ZBM5 can be configured based on your home wiring setup, supporting two modes: no neutral required mode and neutral required mode. In neutral required mode, ZBM5 operates as a Zigbee router, enhancing the robustness and coverage of your Zigbee network, supporting smart lights, and can be used with the detach relay function in the eWeLink app. With the detach relay enabled, smart lights won't lose power when the wall switch is turned off, allowing them to remain smart at all times. *Supports connecting smart lights only in the neutral required mode. In no neutral required mode, ZBM5 operates as a Zigbee end device. The external load must meet a minimum power requirement of 3W. It doesn't support smart lights, including but not limited to dimmable, color-changing, gradient, and lights with built-in controllers and LED strips. ZBM5 is compatible with Home Assistant using the ZBDongle via ZHA or Zigbee2MQTT integration, creating a smart home solution that works seamlessly with devices from various manufacturers.Documents
Video
Language: English Language: Portuguese
Tab 2
Tab 3
