Safer, More Efficient,
Smarter Circuit Management.
SONOFF Basic DIN Rail (Zigbee Version)
*Require a Zigbee Hub

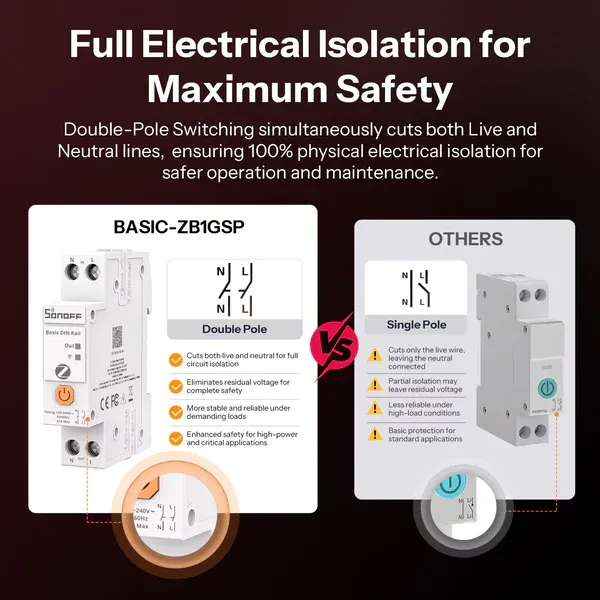

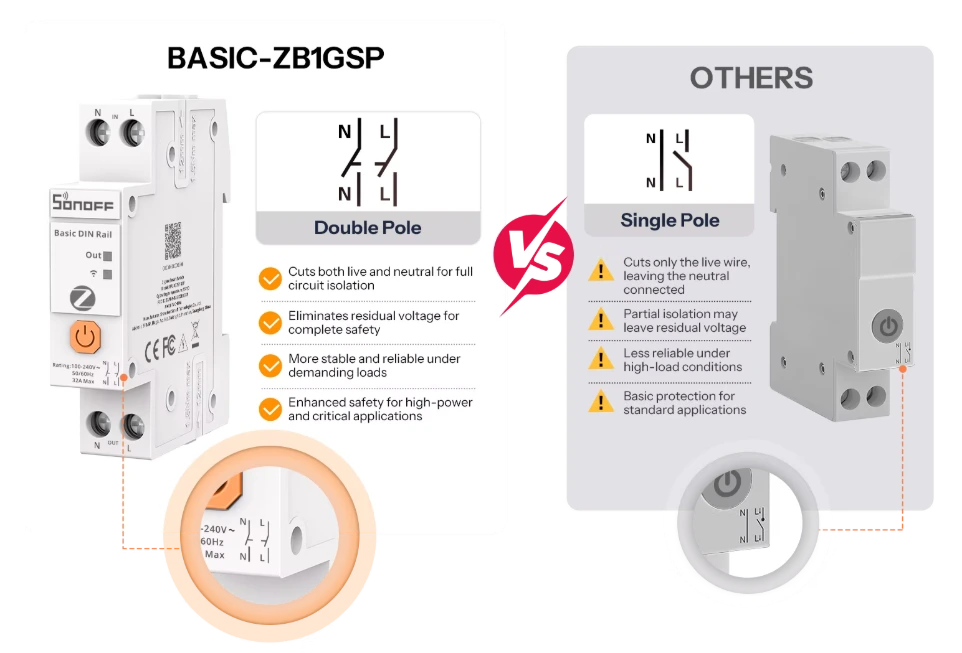

Full Electrical Isolation for Maximum Safety
Double-Pole Switching simultaneously cuts both Live and Neutral lines, ensuring 100% physical electrical isolation for safer operation and maintenance.
Safer and Stronger Performance
Powered by SONOFF New "UniBusbar" Relay
Lower Heat. Higher Current. Longer Lifespan.
Monitor Your Energy Usage
Track daily, monthly, and semi-annual electricity usage and costs with your Basic DIN Rail(Zigbee Version).
Intuitive charts make it easy to manage consumption and save on your electricity bills.
- *Energy monitoring is only available when the load neutral wire is connected to the Basic DIN Rail output neutral terminal.
Overload Protection
Set current (up to 32A), voltage, and power limits to automatically power off the device when thresholds are exceeded.

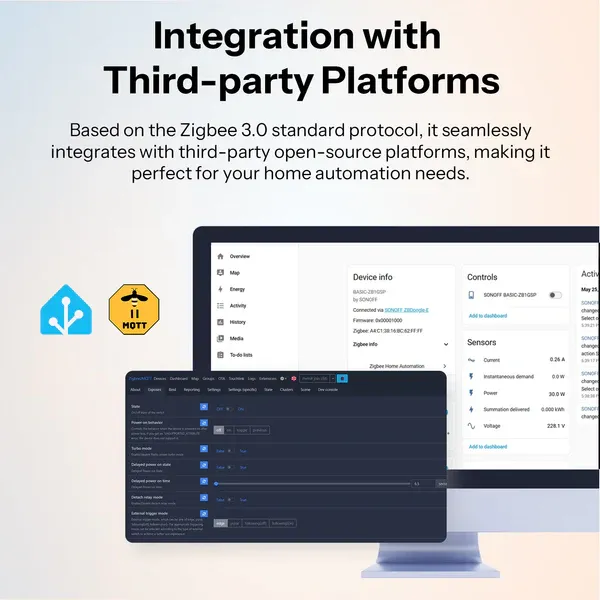

Integration with Third-party Platforms
Based on the Zigbee 3.0 standard protocol, it seamlessly integrates
with third-party open-source platforms, making it perfect for your
home automation needs.

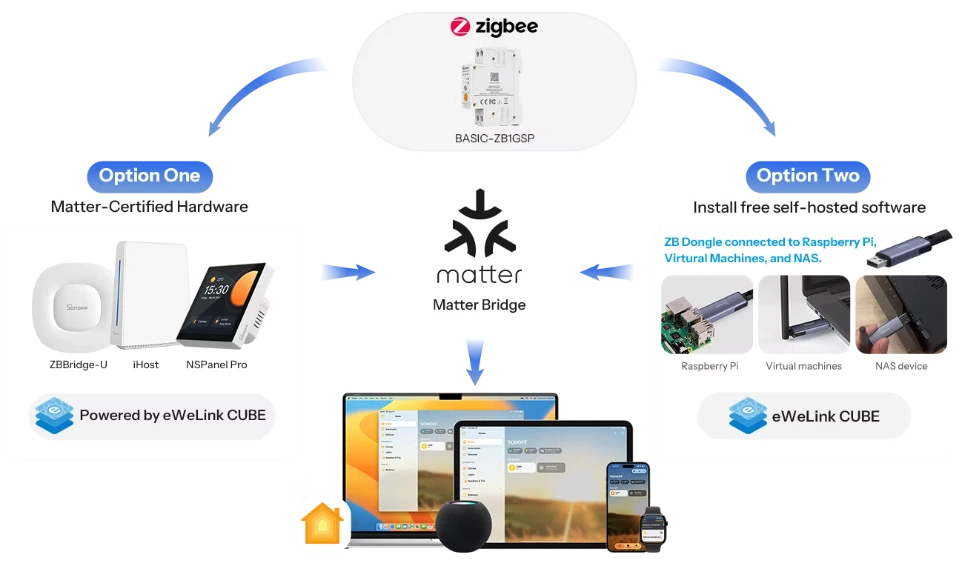

Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF Zigbee devices into your Apple ecosystem via Matter Bridge,
enabling seamless interconnected device control.
Learn More about ZBBridge-U | Learn More about eWeLink CUBE

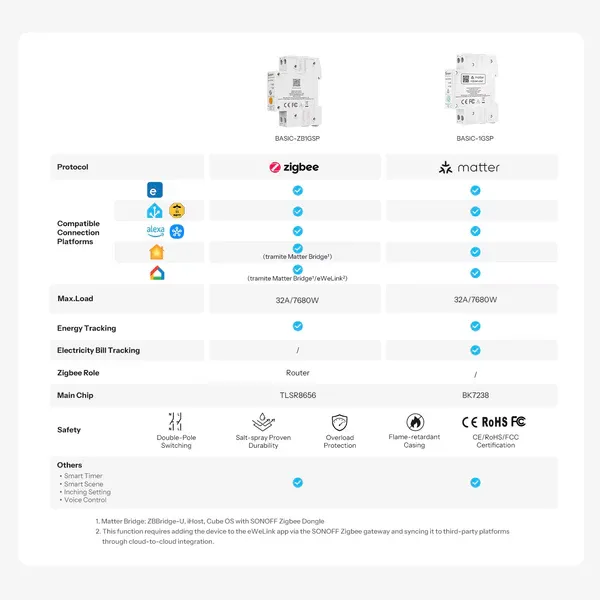

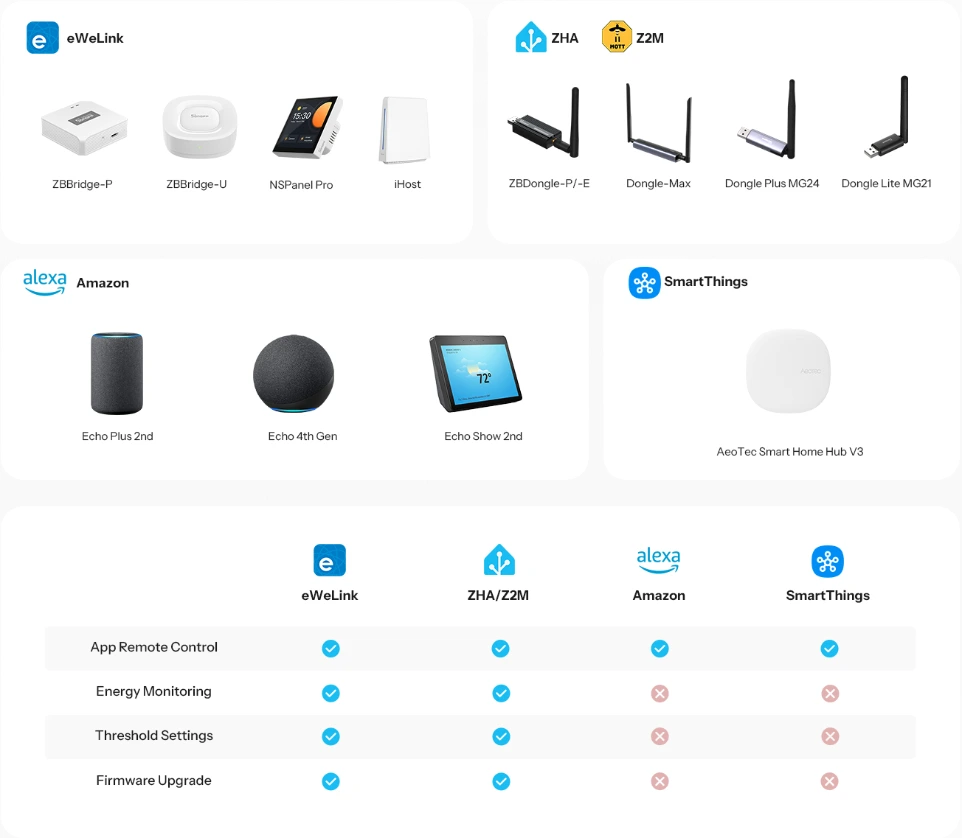

Zigbee Hub Compatibility
Voice Control
You can “speak to” your appliances.
Set Timers
Set a timer to turn appliances on or off.
Remote Control
Control it wherever you are.
Inching Setting
Automatically turn off devices every time.
Installation Schematic
- *Make sure Basic DIN Rail is connected to the back of the air switch, instead of the grid directly.

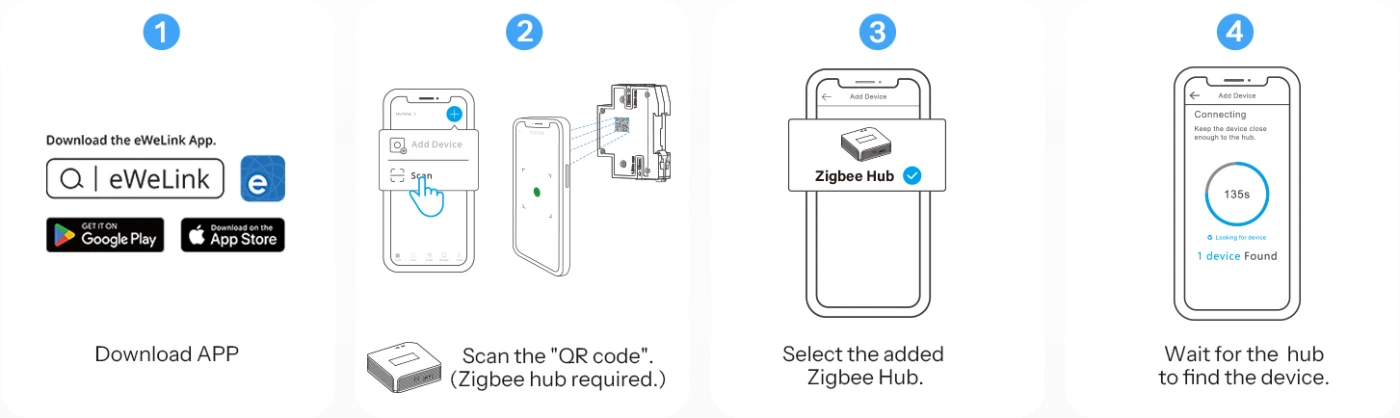

4 Steps to Use
Easily set up. Download the APP, scan the QR code to connect with the zigbee hub and control!
Specification

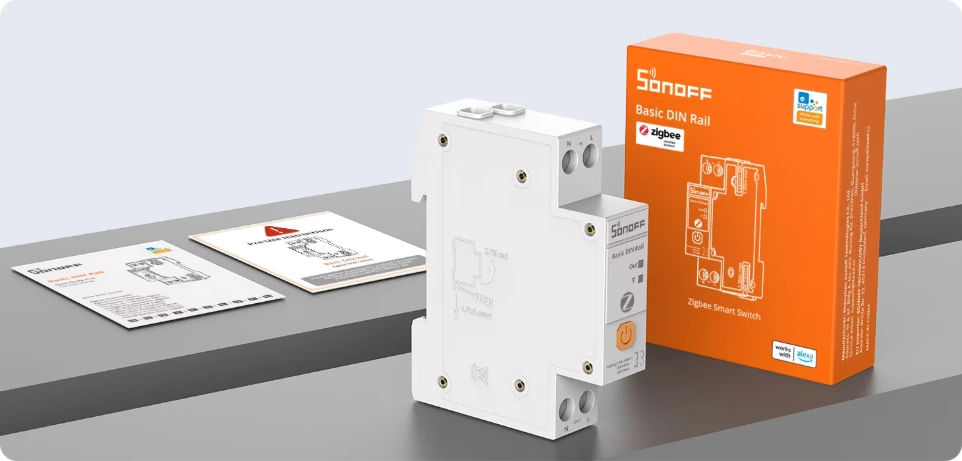

Package
Specs & User Manual
Basic DIN Rail (Zigbee Version) is a DIN rail-mounted Zigbee smart switch designed for residential and industrial energy management. It installs on standard DIN rails without drilling or modifications. It provides real-time monitoring of voltage, current, power, and energy consumption, with data storage and export capabilities. Supporting loads up to 32A, it is ideal for EV chargers, water heaters, and heating systems. Built-in overload protection and double-pole switching enhance electrical safety. Based on the Zigbee 3.0 standard, it delivers stable connectivity and seamless smart home automation.
| Product Name | Basic DIN Rail (Zigbee Version) |
Product series
| Basic Series |
|
Model
| BASIC-ZB1GSP
|
Product type | Zigbee Smart Switch |
Rating | 100-240V~ 50/60Hz 32A Max |
Max. load | 7680W |
Max. current | 32A |
Net weight | 93.5g |
Wireless connectivity | Zigbee 3.0 |

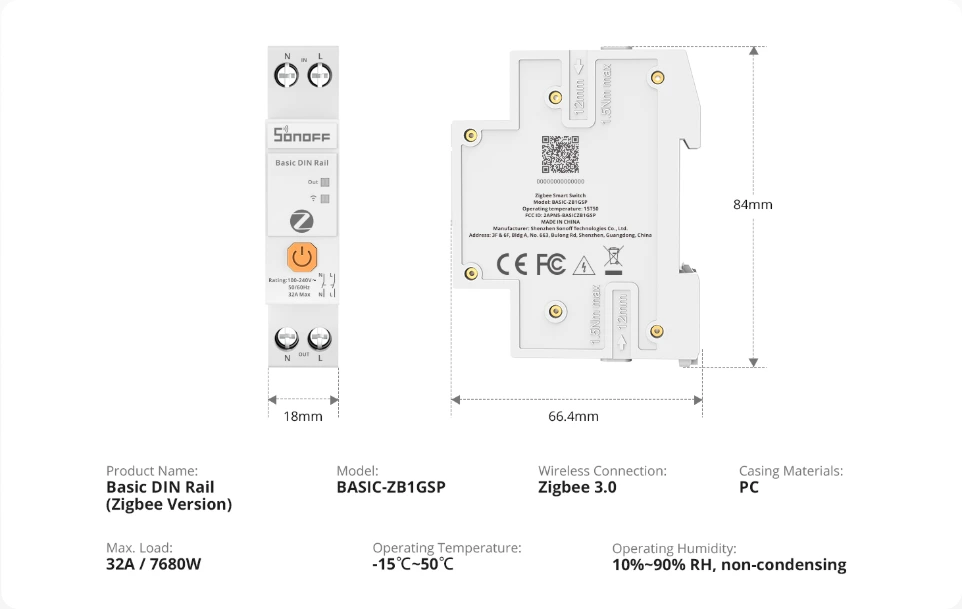

Product dimension | 84 x 66.5 x 18 mm |
Color | White |
Casing material | PC |
Recommended wire gauge range | For 11 AWG to 6 AWG (4mm² to 10 mm²) SOL/STR copper conductors only |
Applicable place | Indoor |
Operating temperature | 15T50 (-15℃~50℃) |
Operating humidity | 10% ~ 90% RH, non-condensing |

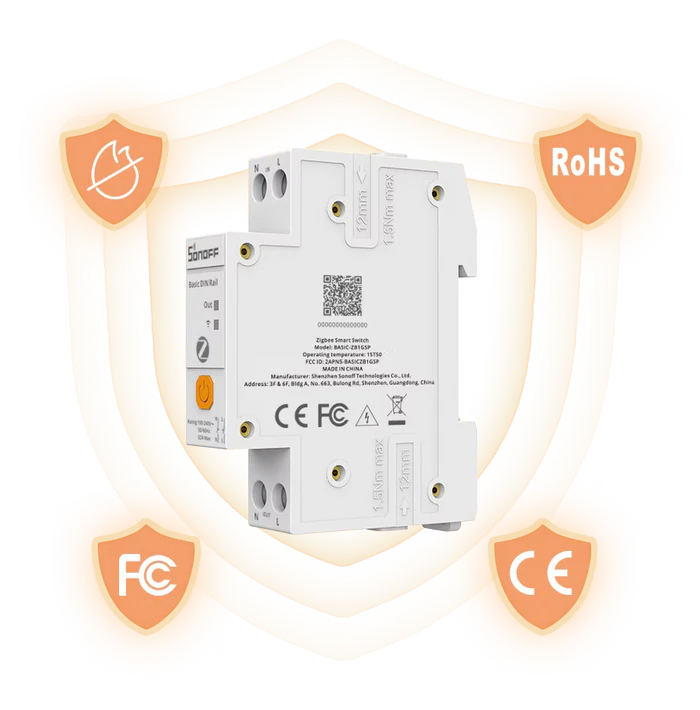

Certification | CE/RoHS/FCC/CP65 |
