Innovative Design, Ultimate Experience
e

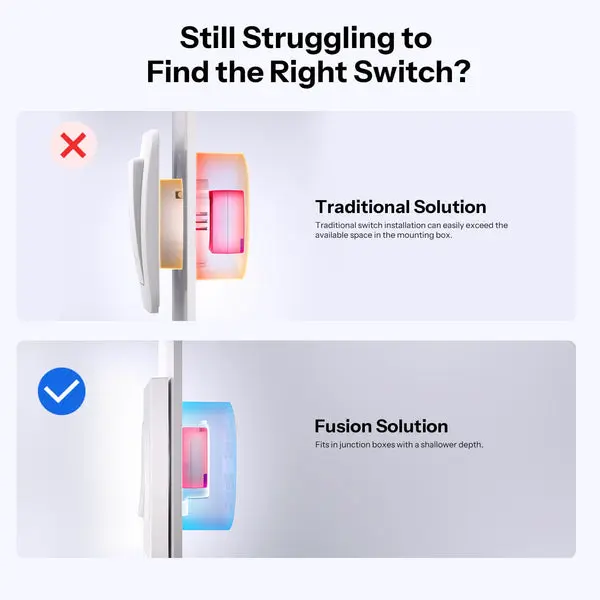

Still Struggling to Find the Right Switch?
Traditional Solution
Traditional switch installation can easily exceed the available space in the mounting box.
Fusion Solution
Fits in junction boxes with a shallower depth.

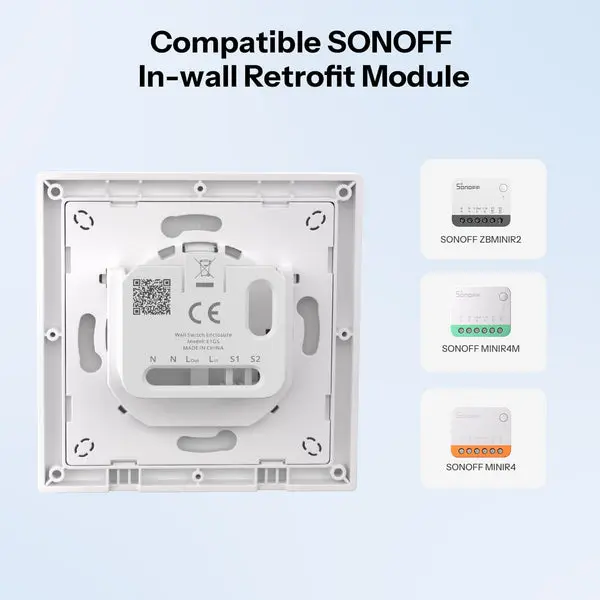

Compatible SONOFF In-wall Retrofit Module
.
E1GS
Neutral wire required
E1GSL
No neutral wire required
Wiring Instructions
*Note: Before wiring, loosen all the screws on the SONOFF In-wall Retrofit Module's wiring terminals.
After completing the wiring, tighten the screws securely
E1GSL
No neutral wire required
E1GS
Neutral wire required

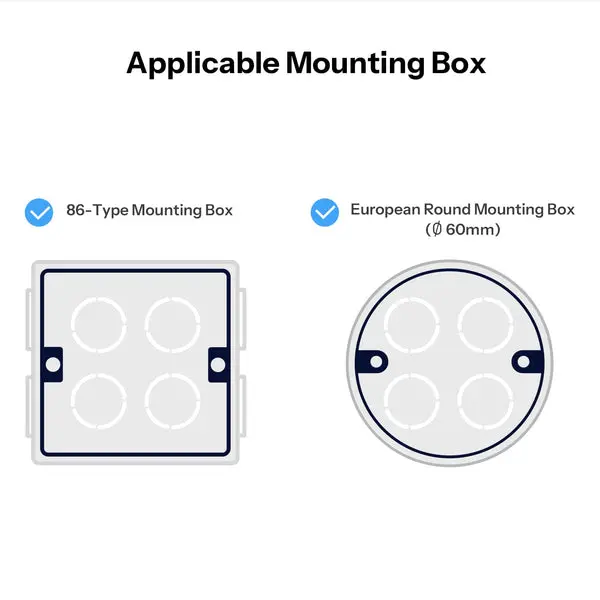

Applicable Mounting Box

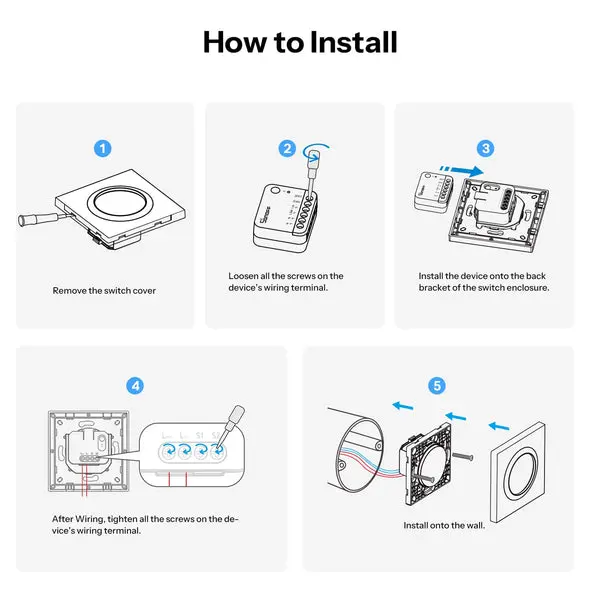

How to Install
Package
Specification
The SONOFF Wall Switch Enclosure (E1GS/E1GSL) is an accessory of the Fusion Series designed specifically for the SONOFF MINI Modules. It functions as the physical switch for the retrofit module, the compact rear structure ensures perfect compatibility with 86-type junction boxes and 60mm-diameter European standard round junction boxes. Additionally, it fits most shallow junction boxes on the market, effectively addressing the space limitations commonly encountered in traditional retrofit module installations. This allows customers to enjoy a seamless installation experience, saving time and effort while maintaining a clean and professional look for their smart home setup.
| Model | E1GS | E1GSL |
| Color | White | White |
| Casing Material | PC | PC |
| Compatible Product | ZBMINIR2, MINIR4M, MINIR4 | ZBMINIL2 |
| Net Weight | 56.5 g | 57.5 g |
| Dimensions | 86 × 86 × 34 mm | 86 × 86 × 35.8 mm |
Specifications
| Brand | Sonoff |
