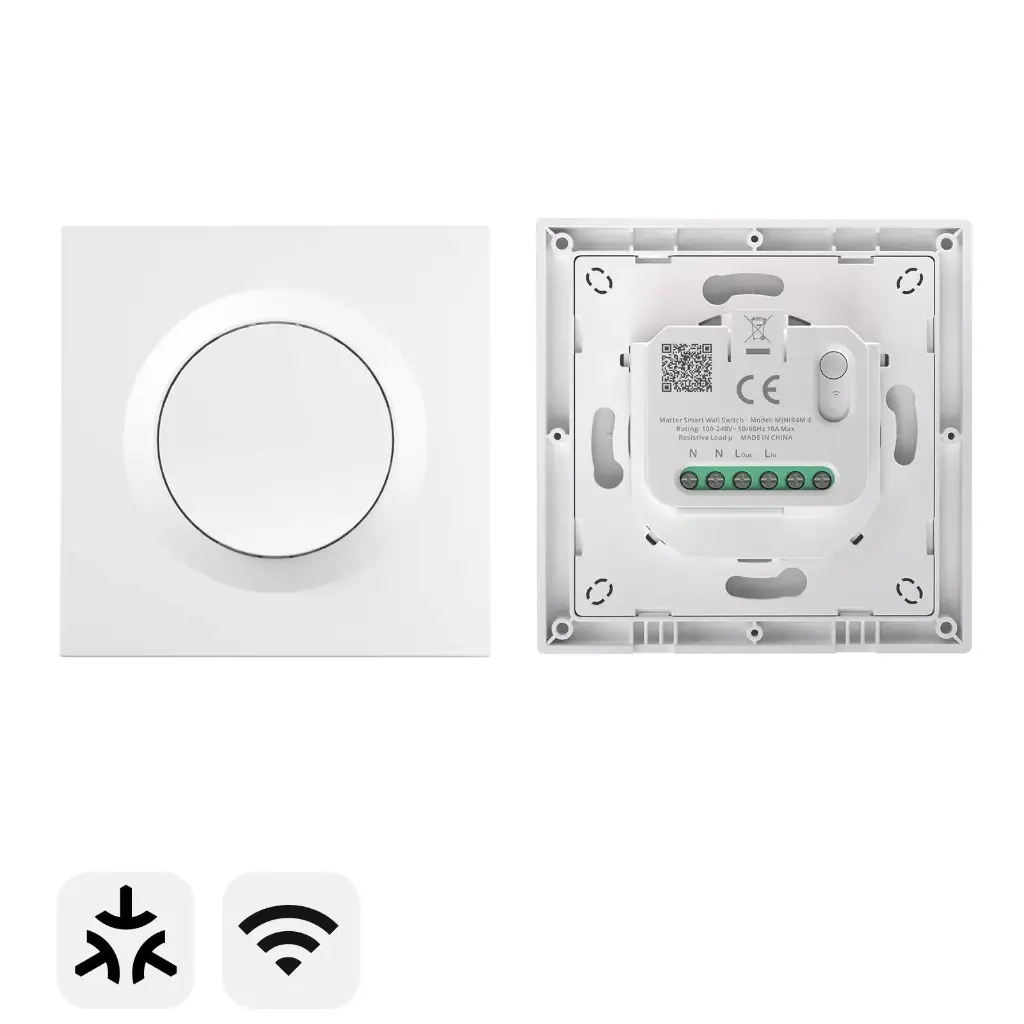

SONOFF Fusion Series Orb-MW1 Matter Over WiFi Smart Wall Switch | MINIR4M-E
【Matter Compatibility】With Matter protocol support, Orb-MW1 ensures seamless integration with Apple Home, Amazon Alexa, Google Home, SmartThings, etc. Allowing you to work with other brands of Matter devices and build a unified smart home setup.
【 Detach Relay Mode】With this function enabled, you can still remotely control your smart devices through "Smart Scenes" even when the physical switch is turned off. And if the device goes offline, the physical switch instantly resumes full control.
【LAN Control】Even if there is no Internet, the switch can be used with local control.
【Smart Scene】Works seamlessly with SONOFF sensors, switches, and other devices, creating a fully connected smart ecosystem for a cohesive experience.
【Compatible Accessories】Orb-MW1 is compatible with SONOFF Fusion Series Switch Frames (Orb-2/3 Gang, sold separately), allowing flexible vertical or horizontal installation.
1-Gang Wall Switch—Orb-MW1
Smarten Your
Cross-Ecosystem Control！
e
Application Showcase
Perfectly Compatible with the Matter Ecosystem
Easily add to popular smart home platforms and sync with your existing Matter-enabled devices for a unified, connected experience.
Works Perfectly with Apple Ecosystem — Fully Supports Siri, iPhone, iPad and Apple Watch.
Perfectly Compatible with the Matter Ecosystem
Easily add to popular smart home platforms and sync with your existing Matter-enabled devices for a unified, connected experience.Works Perfectly with Apple Ecosystem — Fully Supports Siri, iPhone, iPad and Apple Watch.

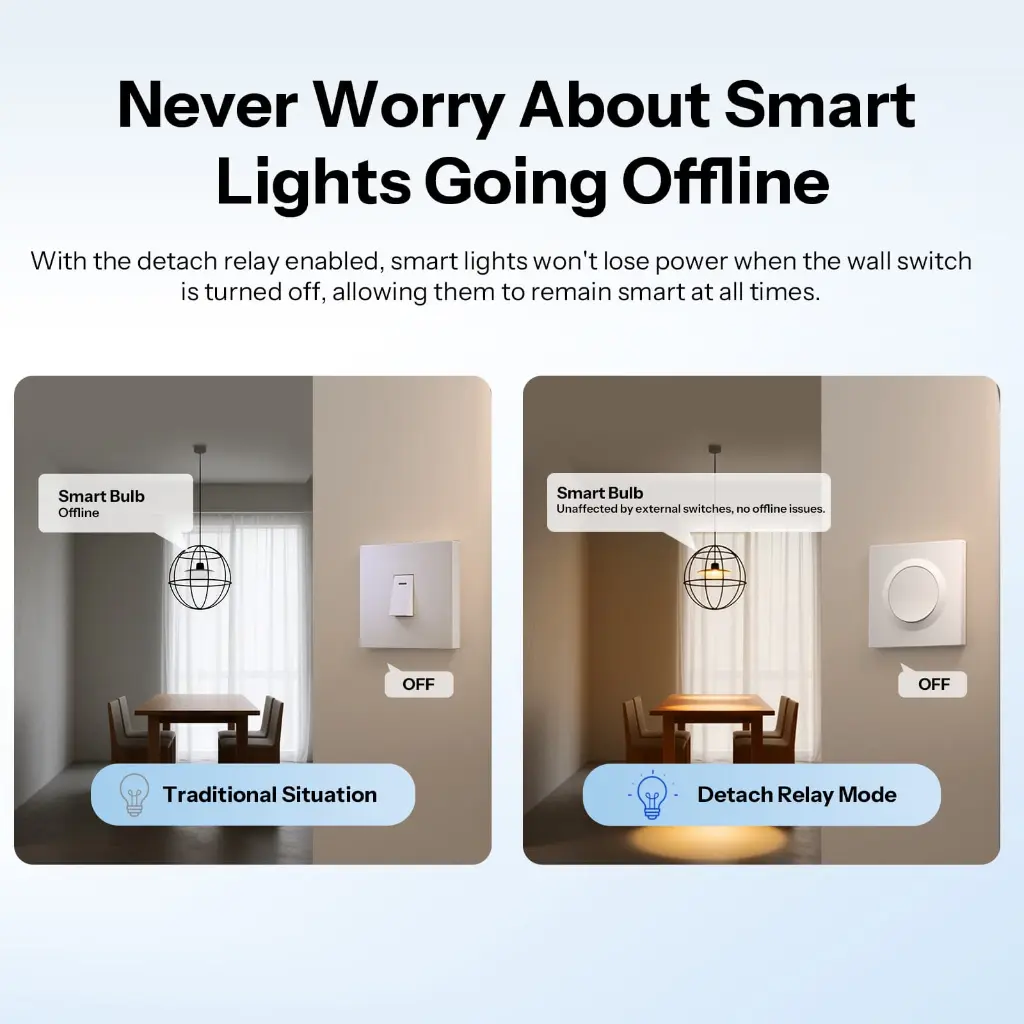

Never Worry About Smart
Lights Going Offline
With the detach relay enabled, smart lights won't lose power when the wall switch is turned off
, allowing them to remain smart at all times
life

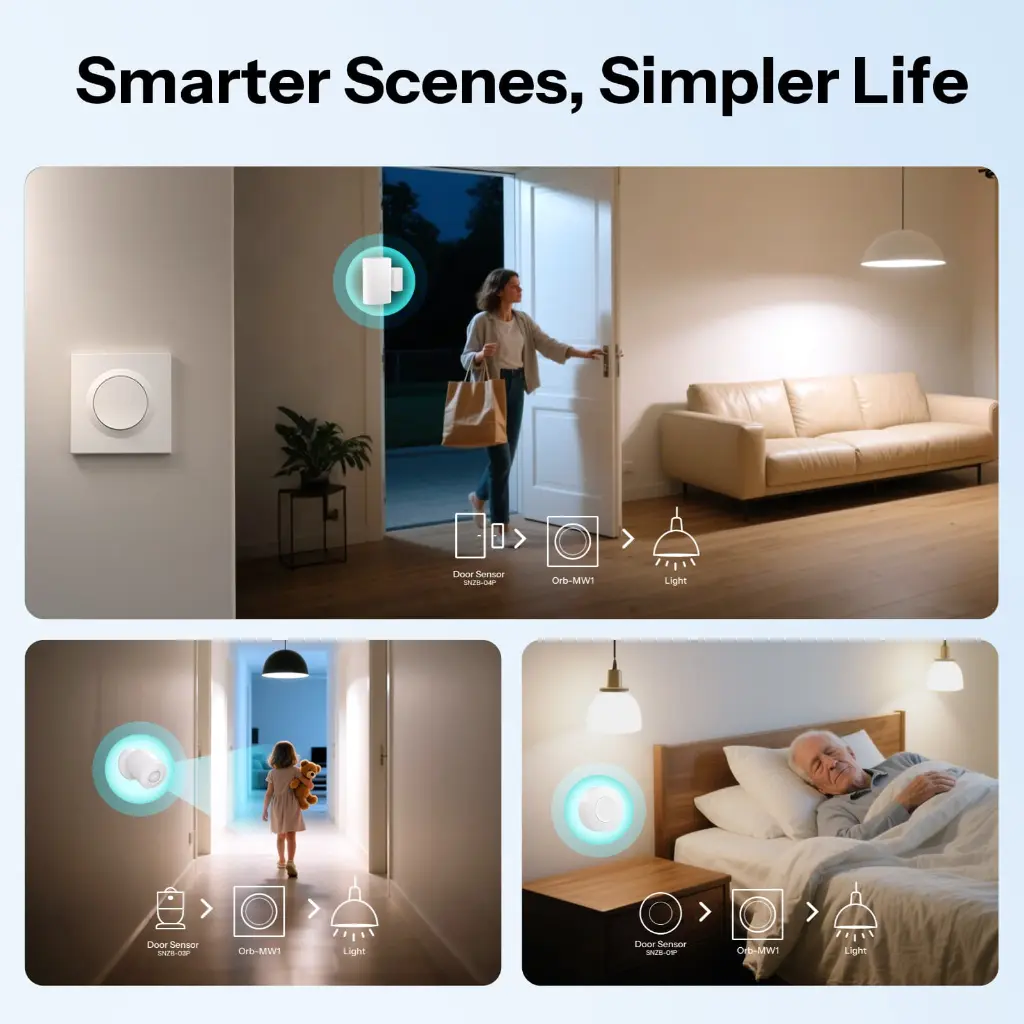

Smarter Scenes, Simpler Life
Local control does not depend on the server
Even if there is no Internet, the switch can be used with local control.
Multiple Possibilities
Power-On State
Delay appliance startup to avoid damage and safety risks from excessive current.
Voice Control
Free your hands and control devices with one comman
Set Timers
Turn on/off your appliances automatically.
Applicable Mounting Box
vation
Hub
vation
Hub
vation
Hub
Multiple Possibilities
Quick Use
Two pairing methods are available for you to choose from, the first is to add a device via the eWeLink APP.
The second is to add a device via a Matter-compatible app.
Specs & User Manual
The Orb-MW1 is a Matter single-channel smart wall switch from the SONOFF Fusion Series. With Matter protocol compatibility, it integrates seamlessly with Apple Home, Amazon Alexa, Google Home, SmartThings, and other ecosystems, enabling a unified smart home. Detach Relay Mode ensures you can still remotely control your smart devices through "Smart Scenes" even when the physical switch is turned off. And if the device goes offline, the physical switch instantly resumes full control. It also offers smart timers, countdowns, and works with Sonoff sensors and switches for a fully connected automation system.
Product Information
| Attribute | Details |
| Product Name | Orb-MW1 |
| Product Series | Fusion Series |
| Product Type | Matter over WiFi Smart Wall Switch |
| Model | MINIR4M-E |
| MCU | ESP32-C3FN4 |
| Rating | 100–240V~ 50/60Hz, 10A Max (Resistive load) μ |
| Wi-Fi | IEEE 802.11b/g/n 2.4GHz |
| Net Weight | 84 g |
| Product Dimension | 86 × 86 × 34 mm |
| Color | White |
| Casing Material | PC |
| Diameter of Wiring (Recommended) | 16 AWG to 14 AWG SOL/STR copper conductor only |
| Certification | CE / RoHS |
FAQ.
What is Matter, and why is it important?
Matter is a new smart home connectivity standard that enables devices from different brands and ecosystems (like Apple HomeKit, Google Home, Amazon Alexa, SmartThings, etc.) to work together seamlessly. Orb-MW1 supports Matter, allowing easy integration and cross-platform control.
Does Orb-MW1 require a neutral wire? ?
Yes. Orb-MW1 requires a neutral wire for proper installation and operation.
3. What is the maximum load Orb-MW1 can handle? ?
The device supports a maximum load of 10A or approximately 2400W (at 240V). For safety, avoid exceeding this limit.
