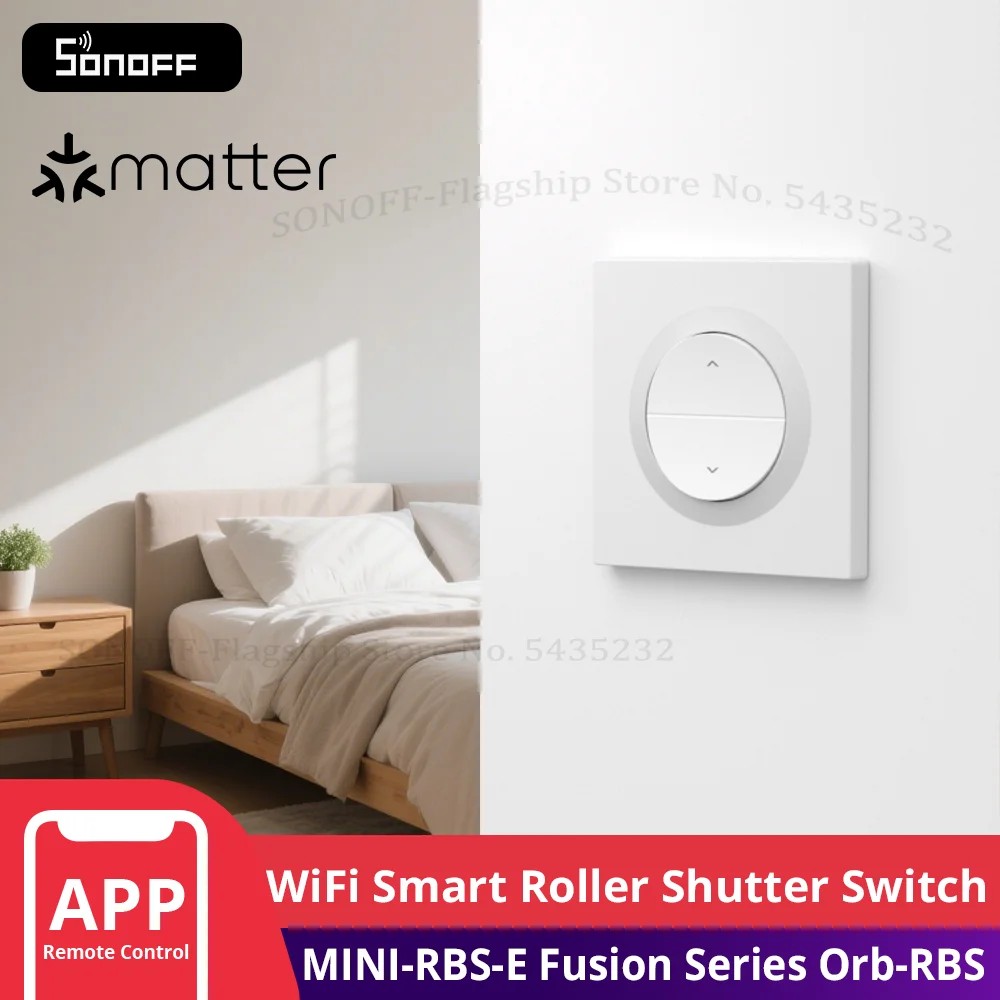

SONOFF Fusion Series Orb-RBS Matter Over WiFi Smart Roller Shutter Wall Switch | MINI-RBS-E
【Matter Compatibility】With Matter protocol support, Orb-RBS breaks down ecosystem barriers—seamlessly working with Apple Home, Google Home, Alexa, Home Assistant, and SmartThings. Enjoy effortless compatibility and build a smarter, truly connected home.
【Precise Percentage Adjustment】Adjust the opening of the roller blinds precisely according to your needs, enhancing comfort, saving energy, and adapting seamlessly to different scenarios.
【Scheduled Curtain Operation】Automate curtain opening and closing at set times aligned with your daily routine, adding both convenience and efficiency to your lifestyle.
【Direction Reverse】No need for rewiring when motor connections are reversed—simply enable this function to switch rotation direction and ensure smooth operation.

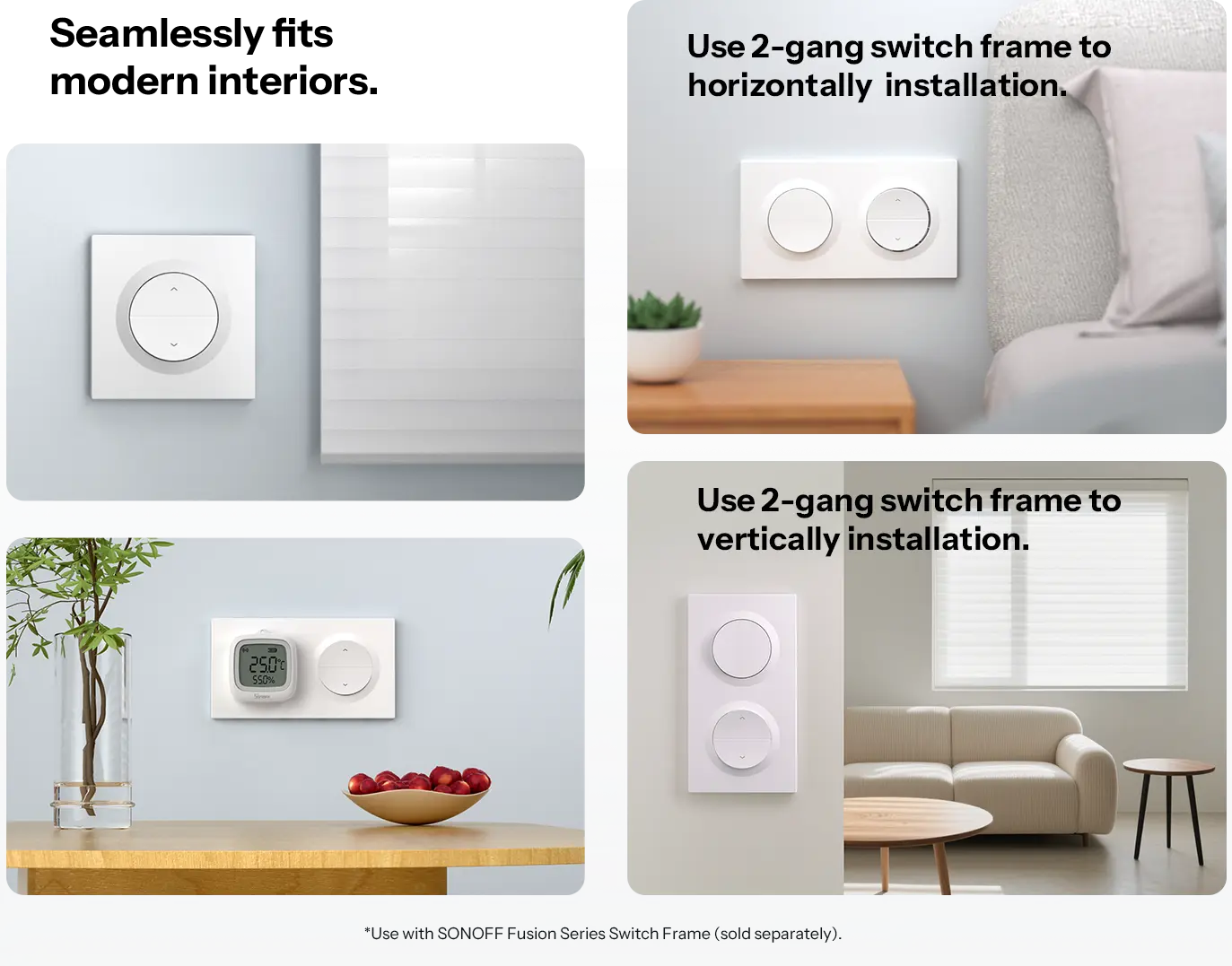

【Compatible Accessories】Orb-RBS is compatible with SONOFF Fusion Series Switch Frames (Orb-2/3 Gang, sold separately), allowing flexible vertical or horizontal installation.
🛡️ 1-Year Warranty + Dedicated Support
Need help or have questions? Our team is always here for you!
📞 9392198424 | ✉️ support@sonoff.in
Free speedy delivery PORTER Courier On-Call Delivery

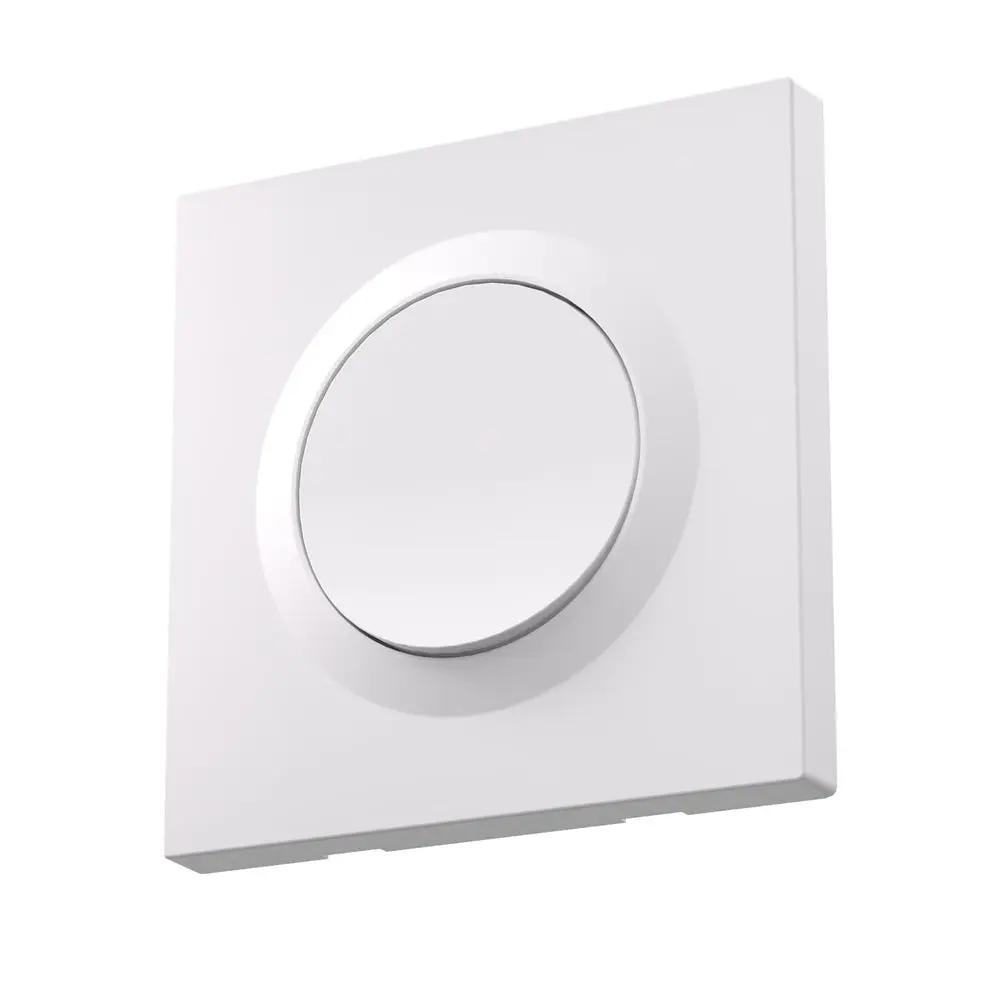

Roller Shutter Wall Switch—Orb-RBS
Upgrade Your
Curtain Experience！
Application Showcase
Perfectly Compatible with the Matter Ecosystem
With a wider working coverage! Orb-RBS supports joining the Matter ecosystem, you can integrate it into
your usual apps,such as Apple Home, Google Home and Alexa.
Works Perfectly with Apple Ecosystem
— Fully Supports Siri, iPhone, iPad and Apple Watch.
Precise Percentage Control
Adjust roller blinds to pinpoint percentages: 30% for soft morning glow, 70% to filter harsh sunlight, or any shade in between.
Automate Your Lights with
Custom Schedules
Set a timer to meet lighting needs for different time periods.
life
Leverage Smart Scenes to Protect Your Privacy
Local Control Does't Depend on the Server
Voice Control,
Made Life Easier
With a single command, say goodbye to cumbersome manual controls and enjoy unprecedented convenience for your roller blinds.

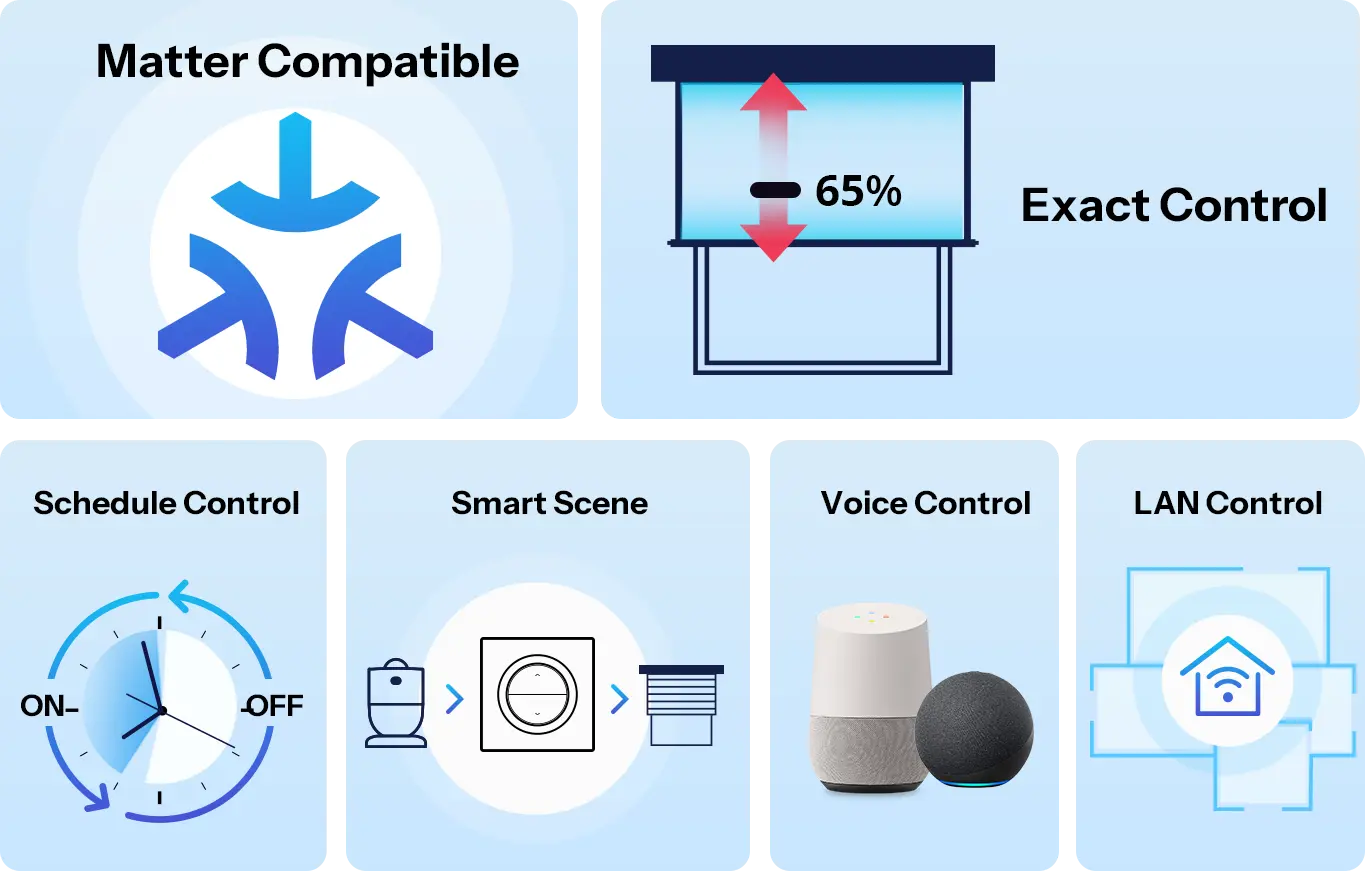

Multiple Possibilities
Power-On State
Delay appliance startup to avoid damage and safety risks from excessive current.
Voice Control
Free your hands and control devices with one comman
Set Timers
Turn on/off your appliances automatically.
Applicable Mounting Box
vation
Hub
vation
Hub
vation
Hub

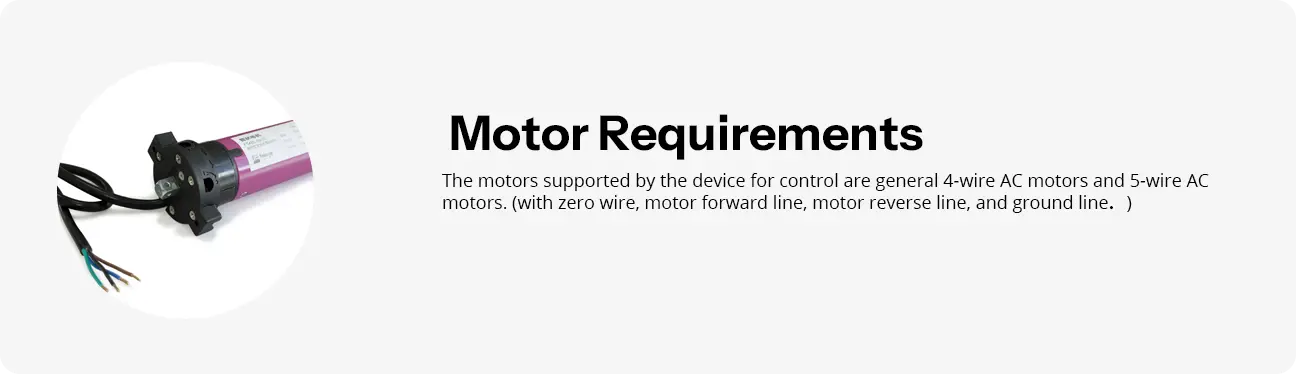

Motor Requirements
Quick Use
Two pairing methods are available for you to choose from, the first is to add a device via the eWeLink APP.
The second is to add a device via a Matter-compatible app.
Specs & User Manual
Orb-RBS is a Matter single-channel smart wall switch from the SONOFF Fusion Series, supporting 2.4GHz Wi-Fi setup with neutral-required wiring. Compatible with Matter, it works seamlessly with Apple Home, Google Home, Alexa, Home Assistant, and SmartThings. Features include precise roller blind adjustment, scheduled operation, and direction reversal, offering a flexible, energy-efficient, and fully connected smart home experience.
Product Information
| Attribute | Details |
| Product Name | Orb-RBS
|
| Product Series | Fusion Series |
Product Type | Matter over WiFi smart roller shutter wall switch |
Model |
|
| MCU | ESP32 |
| Rating | 100-240V~ 50/60Hz 1A Max
|
| Wi-Fi | IEEE 802.11b/g/n 2.4GHz |
| Net Weight | 84 g |
| Product Dimension | 86 × 86 × 34 mm |
| Color | White |
| Casing Material | PC |

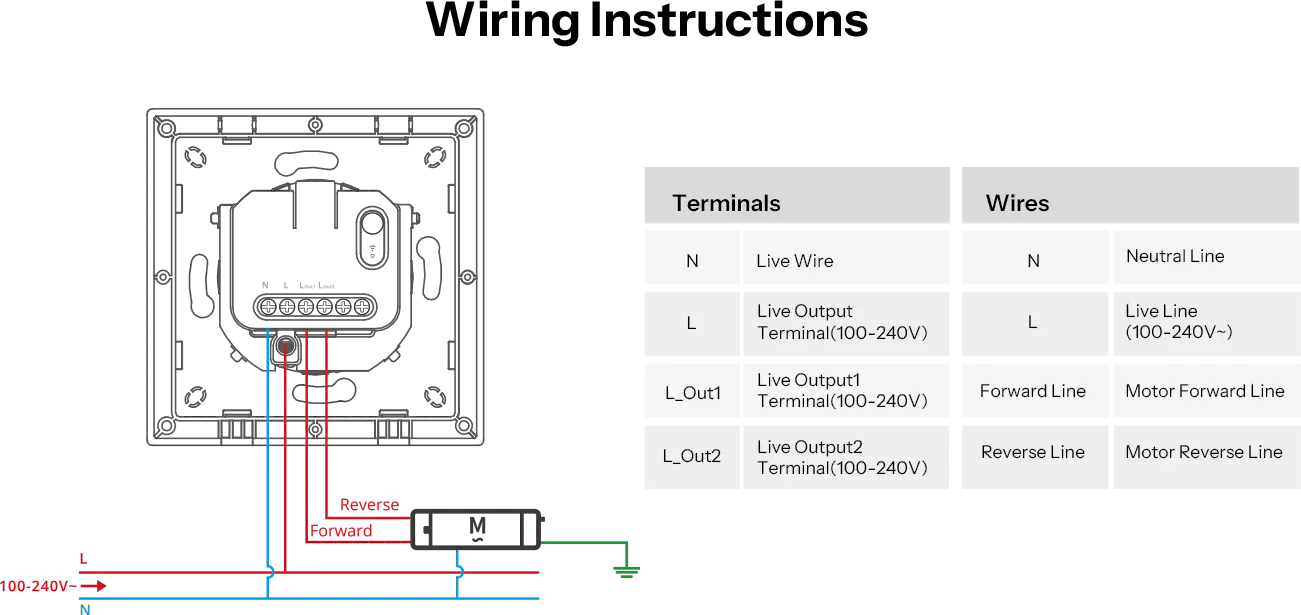

| Diameter of Wiring (Recommended) | 18AWG to 14AWG SOL/STR copper conductor only |
| Certification | CE / RoHS |
FAQ.
1. Can the motor run continuously in the same direction?
No. The motor should not operate in a single direction for more than 2 minutes. To prevent overheating and damage, the device will automatically enter a stop state after exceeding this time limit. .
2.Can two or more curtain motors be connected in parallel and controlled synchronously through the Orb-RBS?
No. Due to individual differences in each motor, even if the operating time is the same, the travel distance may not be consistent, making synchronous control impossible. .
3. Why does the app show the device as offline after clicking "Enable Pairing Mode"?
After enabling Pairing Mode in the eWeLink app, the device enters Network Pairing Mode (indicated by a "two short, one long" LED pattern) and shows as "Offline." Short-press the device button to restore "Online" status.
