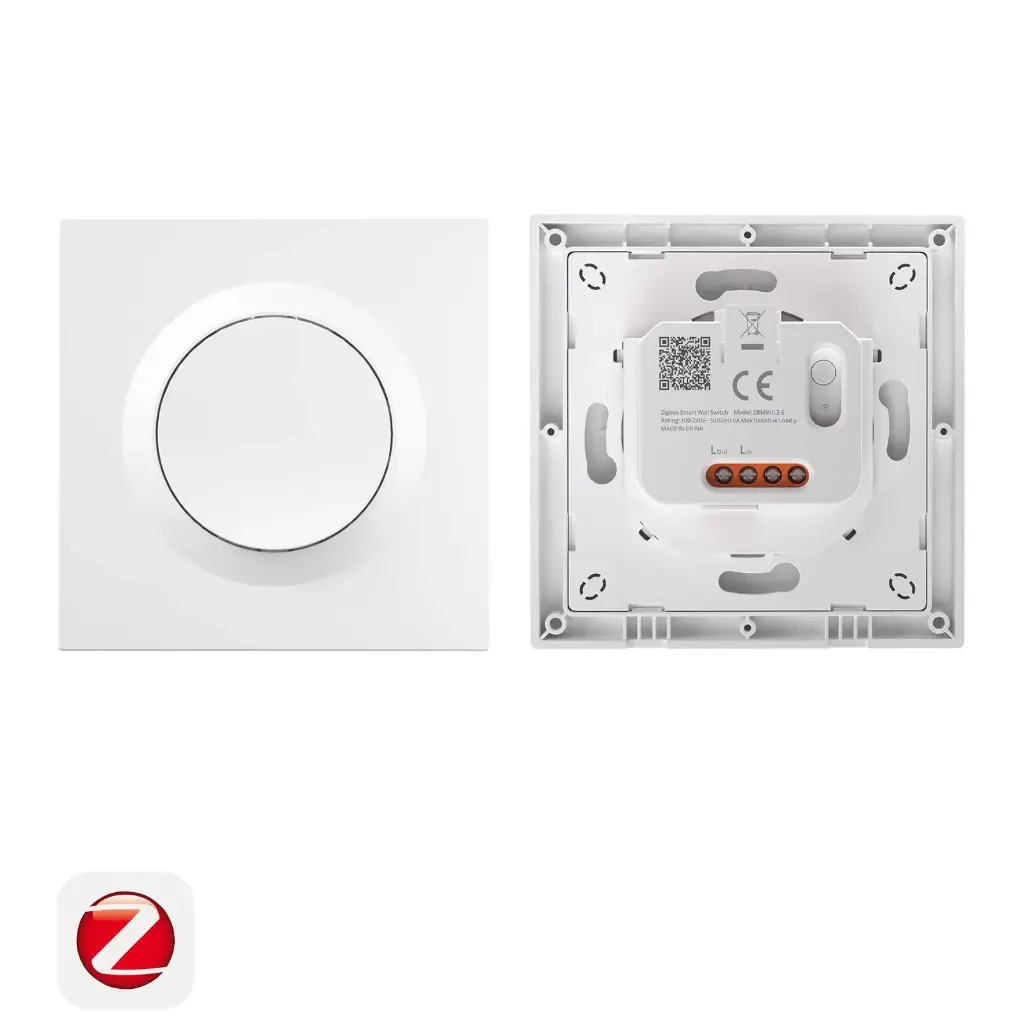

SONOFF Fusion Series Orb-ZBW1L Zigbee Smart Wall Switch (No Neutral Required) | ZBMINIL2-E
【No Neutral Wire Needed】Orb-ZBW1L works without a neutral wire, making it perfect for older homes, for effortless integration into your existing setup.

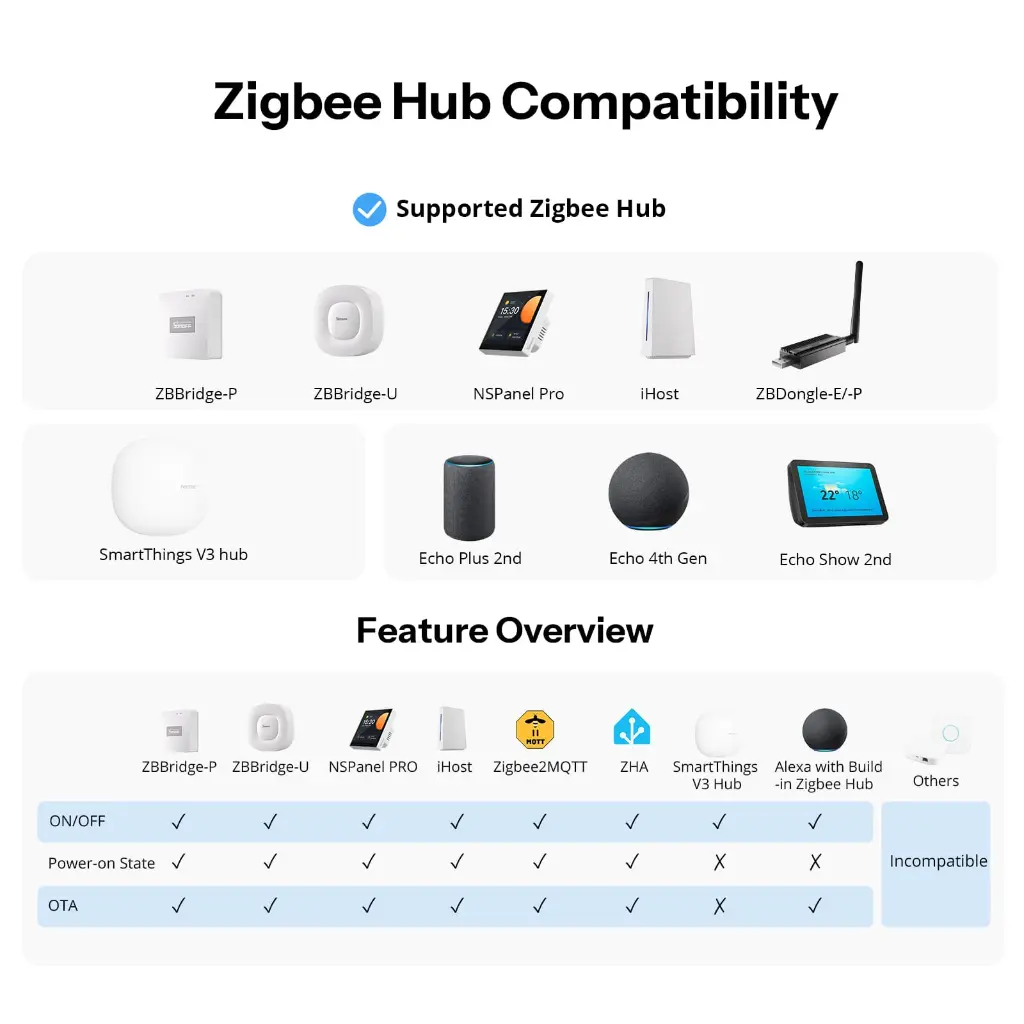

【Zigbee Hub Compatible】Supports Zigbee hubs using the Zigbee 3.0 protocol, like SONOFF iHost, NSPanel Pro, ZBBridge-P, ZBBridge-U, ZBDongle-E, ZBDongle-P, Echo 4th Gen, Echo Show 2nd, and Echo Plus 2nd, SmartThings V3 hub.
【Optimized for Low-Wattage Bulbs】Specially designed to handle low-power loads as small as 3W with no anti-flicker module required. Enjoy stable, flicker-free operation even with modern LED and energy-saving bulbs – maximum compatibility, zero headaches.
【Seamless Integration with Home Assistant】Easily add to Home Assistant for your home automation through ZHA or Zigbee2MQTT( Zigbee Dongle is required, e.g. SONOFF ZBDongle-P/ ZBDongle-E).
【Advanced Smart Scene Capabilities】Easily set countdown, schedule, or loop timers for personalized automation. Voice control is supported with Amazon Alexa and Google Assistant, enabling hands-free operation. You can also trigger other Zigbee devices based on the switch state, creating a truly intelligent and automated smart home experience.
Note 1: The Zigbee Hub is needed.
Note 2: Orb-ZBW1L is a Zigbee End-Device

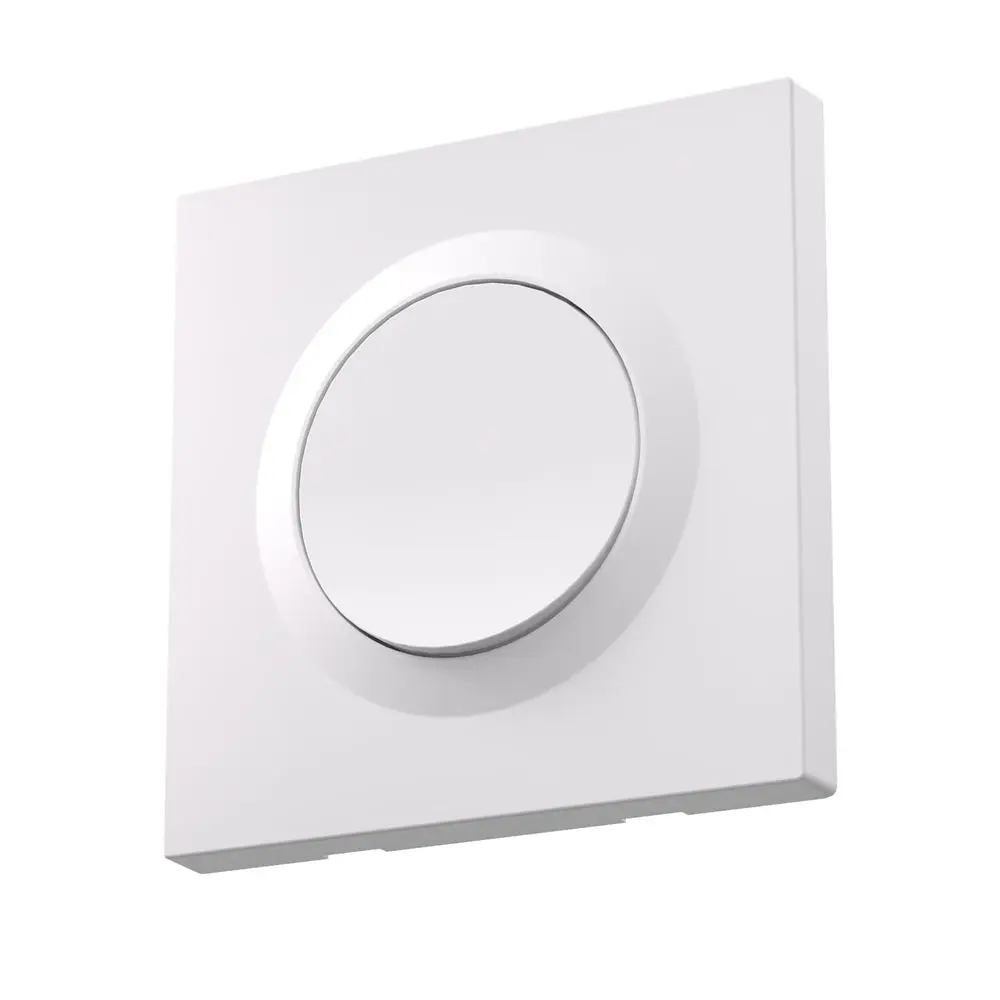

1-Gang Wall Switch—Orb-ZBW1L
No Neutral-Required,
Upgrade Effortlessly!
e
Application Showcase
Automate Your Lights with Custom Schedules
Set personalized schedules and countdown timers to automate your lights, perfectly aligning with your daily routine.
Smarter Scenes, Simpler Life
No More Turning Lights on One by One
Multi switch in different room can set in a group, enabling unified control for all devices in the group.
Light Up with Your Voice
Matter Enabled
Keep the Zigbee Bridge Ultra and the Matter hub in the same LAN,
then the Orb-ZBW1L can be seamlessly integrated with the Matter ecosystem.
Applicable Mounting Box
vation
Hub
vation
Hub
vation
Hub
Multiple Possibilities
Power-On State
Delay appliance startup to avoid damage and safety risks from excessive current.
Voice Control
Free your hands and control devices with one comman
Set Timers
Turn on/off your appliances automatically.
Multiple Possibilities

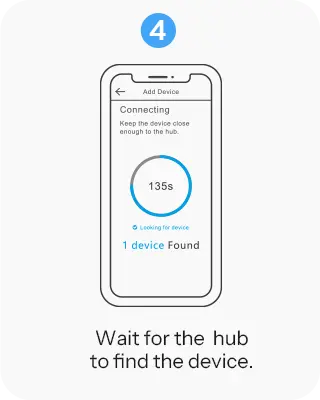

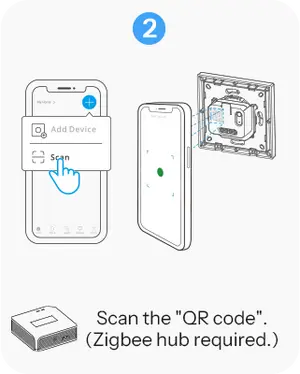

4 Steps to Use
Easily set up. Download the APP, scan the QR code to connect with the zigbee hub and control!
*Requires the compatible SONOFF Zigbee hub.
.

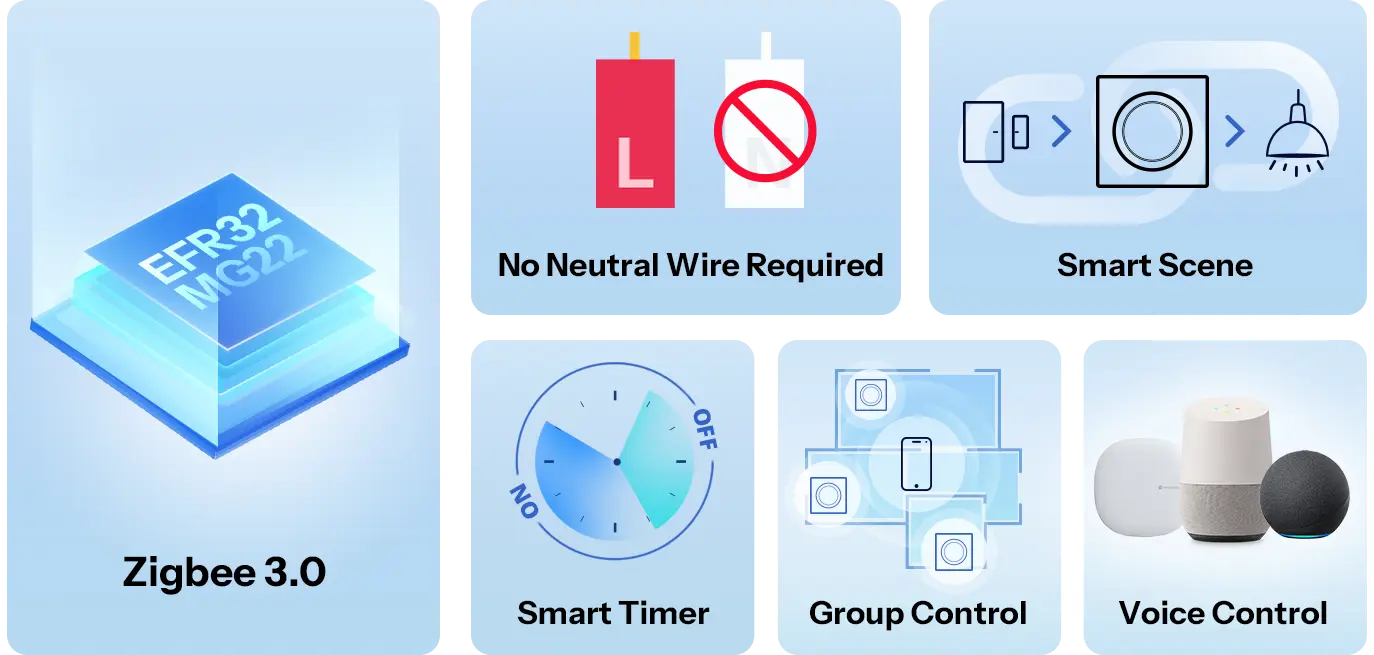

Incredible
Features
Advanced
Capabilities
Specs & User Manual
Orb-ZBW1L is a Zigbee 3.0 single-channel smart wall switch; It works reliably with low-wattage LED bulbs from 3W, ensuring flicker-free lighting. Fully compatible with Zigbee hubs such as SONOFF iHost, ZBDongle-E/P, SmartThings, Echo Plus, and integrates with Home Assistant (ZHA & Zigbee2MQTT). Create smart scenes, set schedules, and enjoy voice control via Alexa or Google Assistant for a truly automated home.
Product Information
| Product Name | Orb-ZBW1L |
| Product Series | Fusion Series |
| Product Type | Zigbee smart wall switch (No neutral required) |
| Model | ZBMINIL2-E |
| MCU |
EFR32MG22
|
| Rating | 100-240V~ 50/60Hz 6A Max Resistive load μ
|
| Wireless connectivity | Zigbee 3.0 |
| Net Weight | 80 g |
| Product Dimension | 86 × 86 × 35.8 mm |
| Color | White |
| Casing Material | PC |
| Diameter of Wiring (Recommended) | 16AWG to 14AWG SOL/STR copper conductor only
|
| Certification | CE / RoHS |
FAQ.
Does Orb-ZBW1L support installation without a neutral wire?
Yes. Orb-ZBW1L is designed to work without a neutral wire, making it ideal for retrofit installations in most standard wall switch boxes.
Does it support timers and automation?
Yes. Once paired with a Zigbee hub, you can set schedules, countdowns, and smart scenes/automation rules.
What is the maximum load supported by Orb-ZBW1L?
Orb-ZBW1L is rated for 6A. Do not connect devices that exceed this rating.
5. Do I need to connect a flash suppression module (anti-flicker device)?
No. Orb-ZBW1L does not support external flash suppression modules. Connecting one may damage the device.
3. What types of loads can it control?
It is suitable for most resistive loads like LED lights, incandescent bulbs, and tungsten lamps.
6. Can Orb-ZBW1L work as a Zigbee router/repeater (relay device)?
No. Orb-ZBW1L is designed as a Zigbee end device, not a router.
To minimize power consumption and prevent light flickering, it uses a low-power design and does not relay Zigbee signals to other devices.
To extend Zigbee network range, consider using Zigbee router devices such as ZBMicro.
