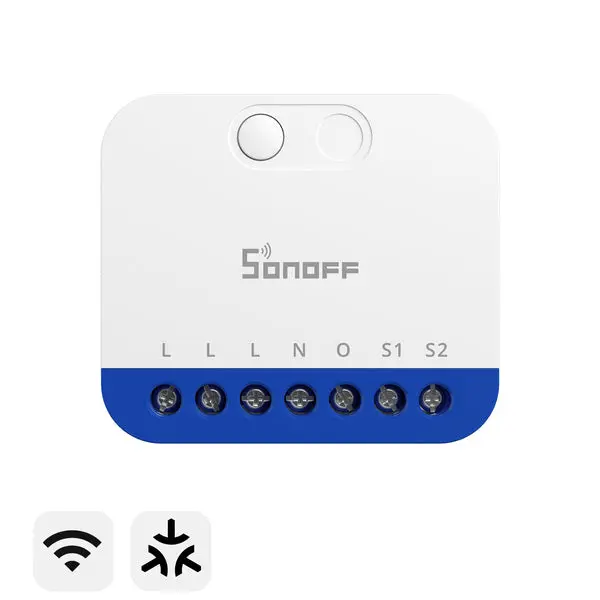

SONOFF MINI Extreme Matter Over WiFi Dimmer Switch | MINI-DIM
【Wide Lighting Compatibility】Supports dimmable LEDs up to 200VA, incandescent and halogen lamps up to 400W, and dimmable electronic transformers up to 200W, covering a wide range of residential lighting types.
【Matter Smart Ecosystem Support】Matter-enabled for seamless integration with Apple Home, Google Home, and Amazon Alexa, enabling cross-platform automation, smart scenes, and hands-free voice control.【Smooth Calibrated Dimming】Automatic or manual calibration ensures the dimmer is better adapted to your lighting fixtures, identifying the actual brightness response range of the fixtures for stable, flicker-free dimming.
【Real-Time Power Monitoring】Continuously detects and synchronizes power consumption data, giving clear insights into real-time energy usage.
【Built-In Overheat Protection】Integrated temperature detection triggers UI alerts and automatically cuts power output when overheating occurs, protecting both the device and connected lighting.
Note: 220–240V only. Do not exceed or go below voltage limits.
| Brand: Sonoff |
⭐ 100% Original Products 🛡️ 12-Month Warranty
✔️ 100% Buyer Protection 🌍 Worldwide Reach
Free speedy delivery PORTER Courier On-Call

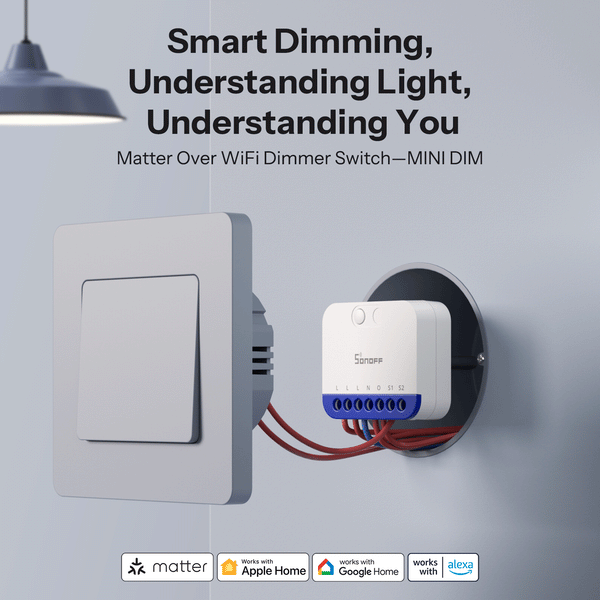

Smart Dimming,
Understanding Light,
Understanding You
Matter Over WiFi Dimmer Switch——MINI DIM

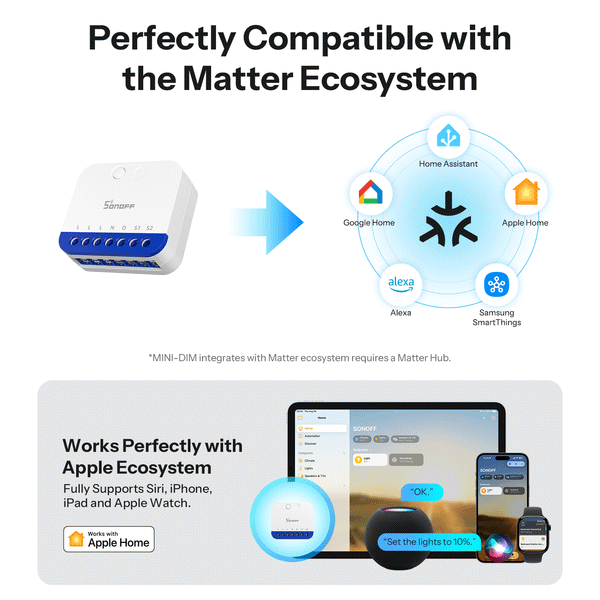

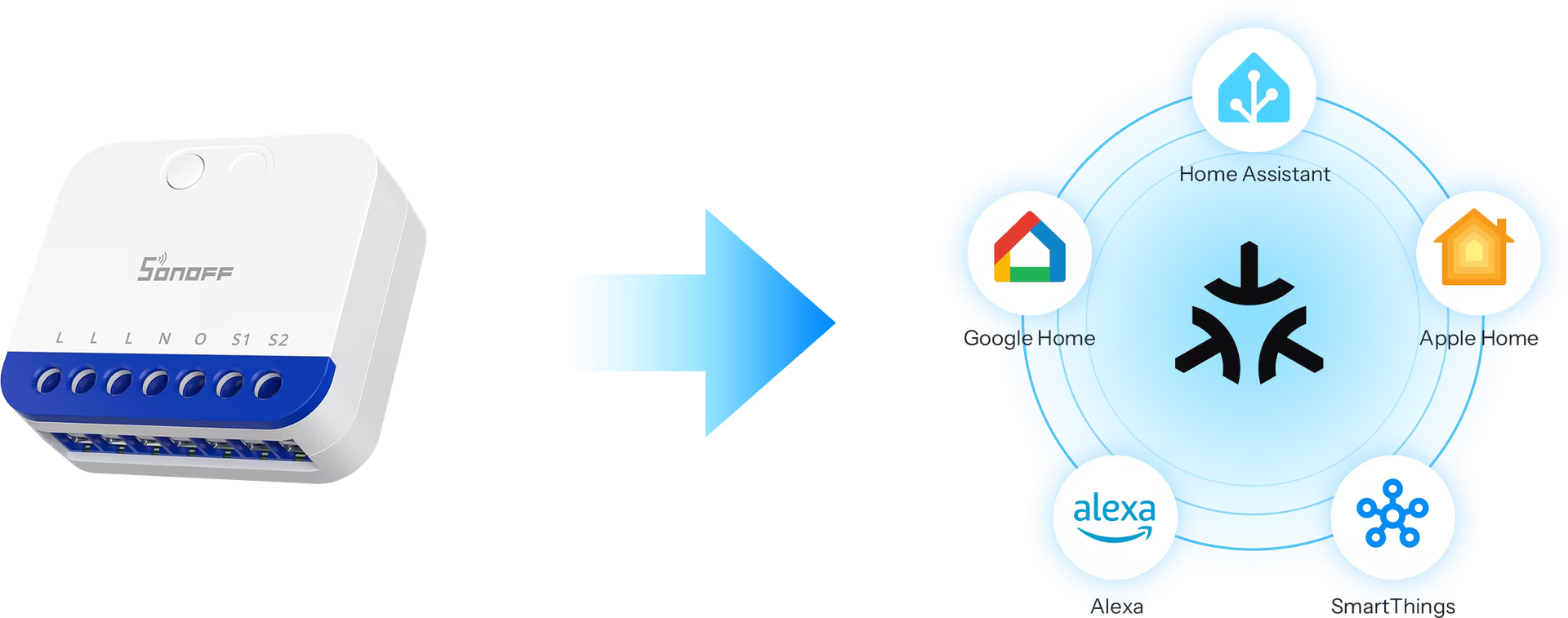

Perfectly Compatible with the Matter Ecosystem
With a wider working coverage! MINI-DIM supports joining the Matter ecosystem, you can integrate it into your usual apps, such as Apple Home, Google Home and Alexa.
*To integrate with Matter ecosystem, MINI-DIM requires a Matter Hub.
Works Perfectly with Apple Ecosystem
— Fully Supports Siri, iPhone, iPad and Apple Watch.
Voice Control Frees Your Hands
In one command, set your custom brightness and say goodbye to cumbersome manual controls.
Wide Compatibility—No More Hassle Choosing Lights.
Uses trailing-edge dimming technology for broader lamp compatibility, especially with modern dimmable LED lights.
Tune the Brightness Range to Fit Your Light
Different lamps have different dimming ranges. A simple brightness calibration helps the dimmer adapt better to your lamp, delivering smoother and more stable performance.
*Please perform brightness calibration before use.

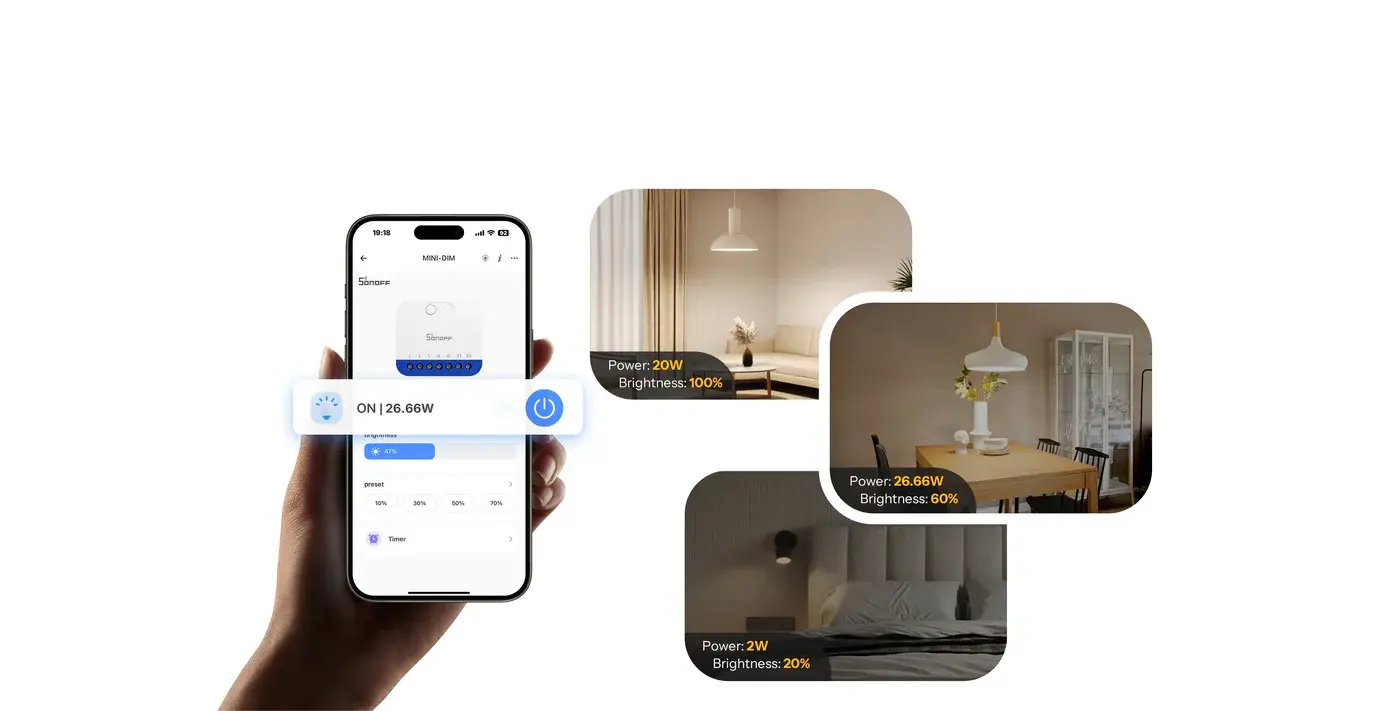

Your Personal Energy Detective
Adjusting brightness instantly displays power output, enabling precise energy management.
Independent Control from Any Two Locations
It supports two momentary or rocker switches, each simultaneously controlling the same light. You can install the switches at any two locations for flexible, convenient control—no need to walk back and forth.
Smart Timer
Set timed, delayed, and recurring tasks at will to achieve autonomous lighting control.
Let the light guide you to sleep.
Gentle light eases nighttime fear and shuts off automatically.
Cyclic scheduling gives your home a steady rhythm.
Independent Control from Any Two Locations
It supports two momentary or rocker switches, each simultaneously controlling the same light. You can install the switches at any two locations for flexible, convenient control—no need to walk back and forth.

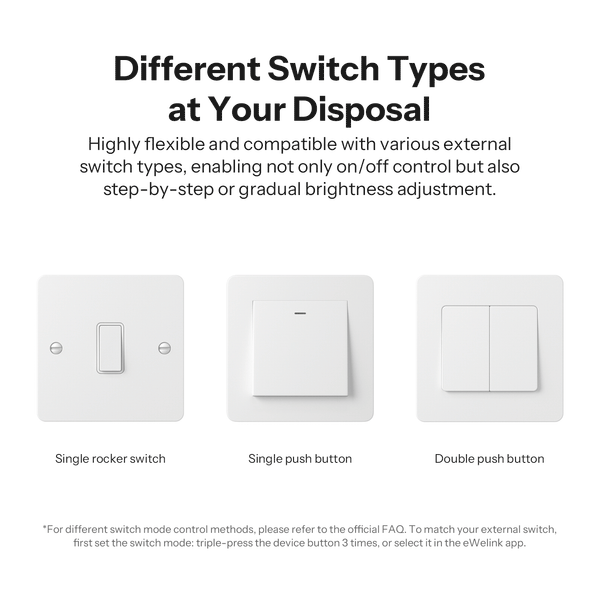

Different Switch Types at Your Disposal
Highly flexible and compatible with various external switch types, enabling not only on/off control but also step-by-step or gradual brightness adjustment
*For different switch mode control methods, please refer to the official FAQ.
To match your external switch, first set the switch mode: triple-press the device button 3 times,
or select it in the eWelink app.
Ensuring Safe Use with High Quality

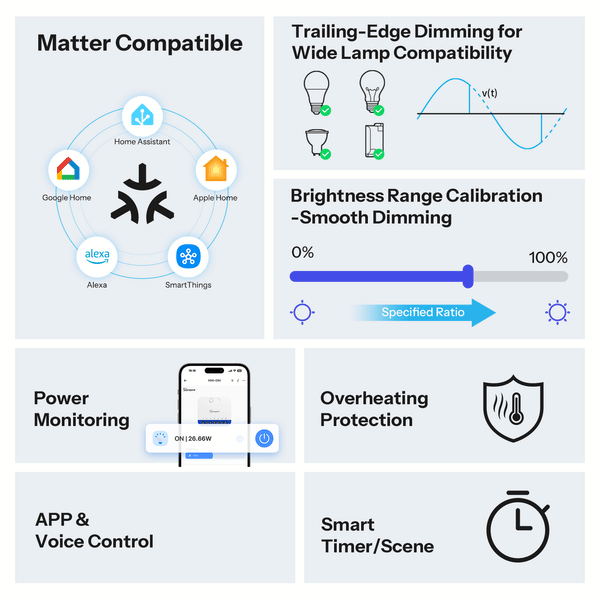

Feature Overview
Choose Your MINI DIM
Wiring Instructions
Compatible Mounting Box Sizes
Quick Use
Two pairing methods are available for you to choose from, the first is to add a device via the eWeLink APP.
The second is to add a device via a Matter-compatible app.

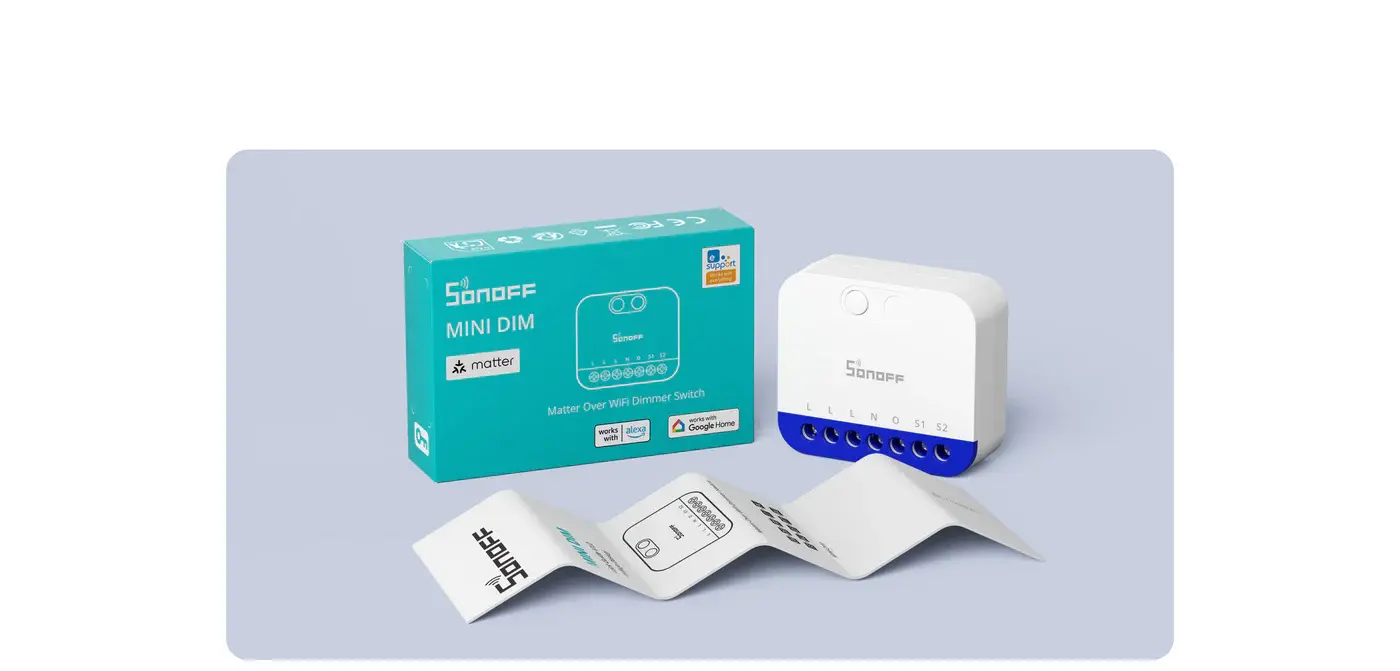

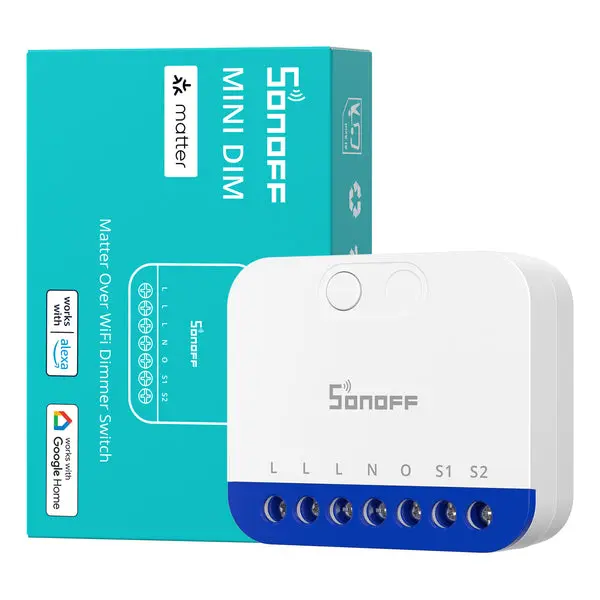

Package
Specifications
Specs & User Manual
MINI-DIM is a Matter over Wi-Fi smart dimmer switch designed to upgrade traditional lighting with intelligent, precise dimming control. It supports a wide range of lighting types, including dimmable LEDs, incandescent and halogen lamps, and electronic transformers. With auto or manual calibration, MINI-DIM delivers smooth, flicker-free dimming from the lowest to the highest brightness. Integrated with Apple Home, Google Home, and Amazon Alexa, it enables smart scenes, voice control, and cross-platform automation. Real-time power monitoring and built-in overheat protection further ensure safe, reliable, and efficient operation for modern smart homes.
| Model | MINI-DIM |
| Product Series | MINI Extreme series |
| Rated Voltage | 220–240 V |
| Rated Frequency | 50 Hz |
| Max Load | 2 A |
| Wi-Fi | 2.4 GHz |
| Net Weight | 24.5 g |
| Product Dimension | 45 × 39.4 × 16.8 mm |
| Working Temperature | −10℃ to 40℃ |
| Casing Material | PC |
FAQ
Yes. With its ultra-compact design, it can be easily installed inside standard wall switch boxes without taking extra space.
MINI DIM is compatible with the following load types:
*Dimmable LED lamps: up to 200VA
*Incandescent bulbs: up to 400W
*Halogen bulbs: up to 400W
*Dimmable electronic transformers: up to 200W

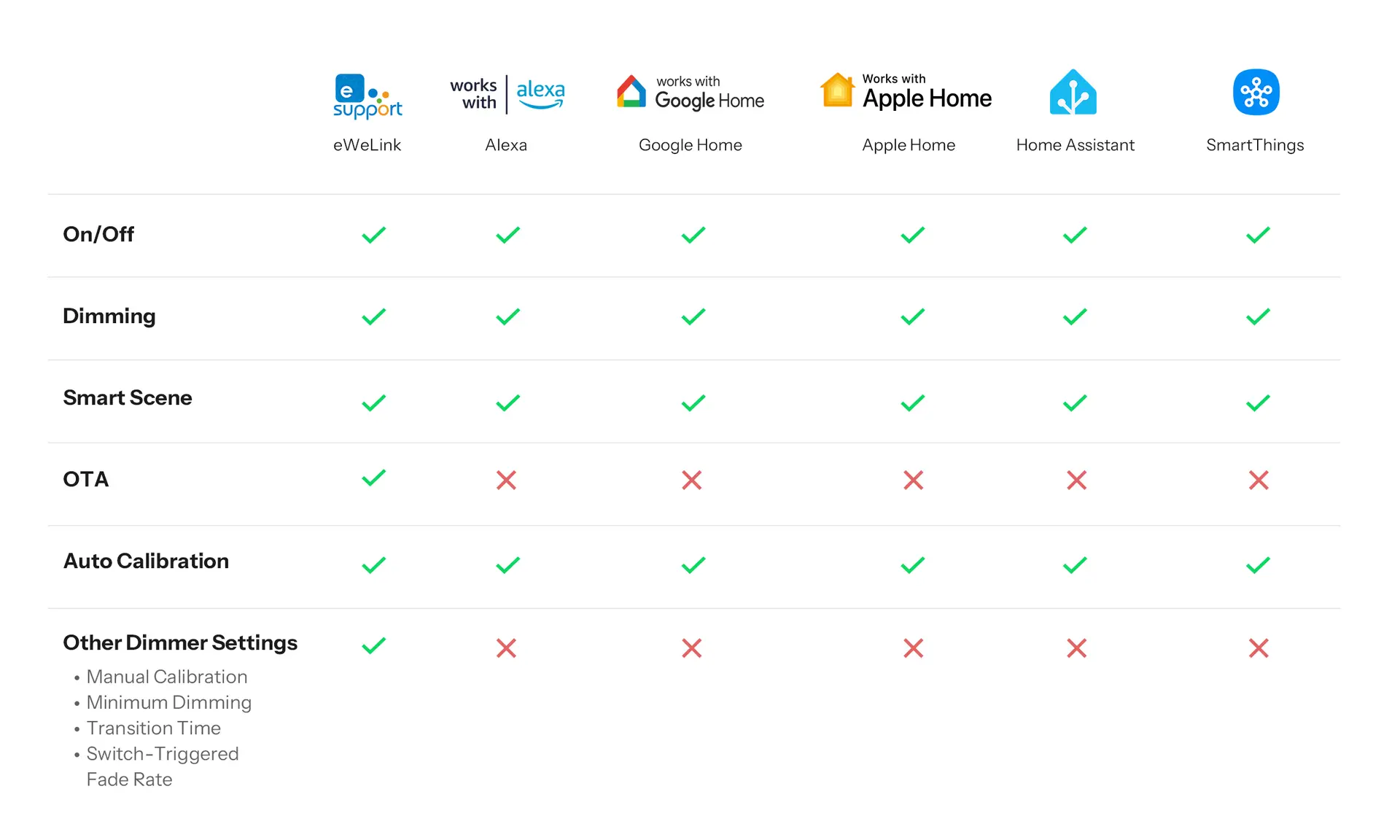

With Matter support, it works with:
Apple Home
Google Home
Amazon Alexa
Home Assistant
Samsung SmartThings
All these platforms support both switching the light on/off and adjusting its brightness.
*Using the eWeLink app, calibration can be done via the app or by pressing and holding the device button for 10 seconds
*With third-party apps, press and hold the button for 10 seconds
The LED will show a breathing light during the calibration process.
