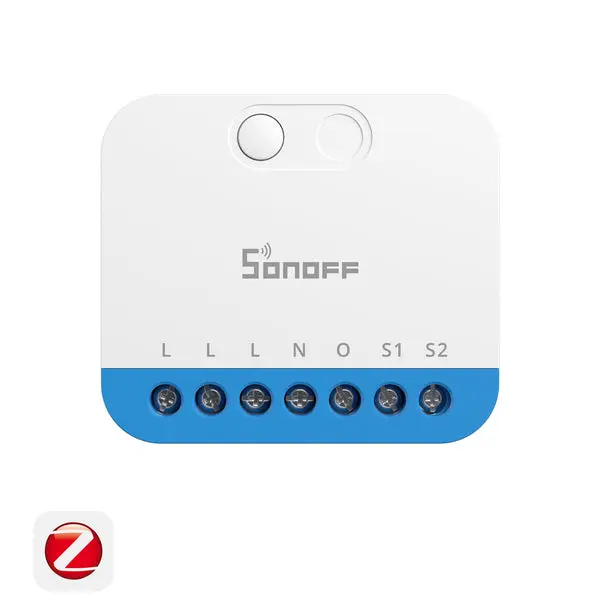

SONOFF MINI Extreme Zigbee Dimmer Switch | MINI-ZBDIM
【Broader Lamp Compatibility】Supports up to 200VA dimmable LED lamps, 400W incandescent and halogen bulbs, and 200W dimmable electronic transformers, ensuring broad compatibility across most residential lighting setups.
【Zigbee Smart Integration】Built on the Zigbee 3.0 standard, fully integrable with Home Assistant (via ZHA or Zigbee2MQTT) for local automation and other smart home systems like Alexa, Google Assistant, and IFTTT to enable smart scenes, automation, and convenient hands-free voice control.
【Smooth & Precise Dimming】Flicker-free dimming across the full brightness range, with automatic or manual calibration to better adapt to your fixtures for stable, refined lighting control.
【Real-Time Power Monitoring】Continuously measures and synchronizes power consumption data, giving you clear insights into energy usage and helping optimize efficiency across connected lighting circuits.
【Advanced Overheat Protection】Features built-in TC temperature sensing; when overheating is detected, the UI alerts you and safely cuts power output, stopping operation to protect both the device and connected lighting.
Note: 220–240V only. Do not exceed or go below voltage limits.
| Brand: Sonoff |
⭐ 100% Original Products 🛡️ 12-Month Warranty
✔️ 100% Buyer Protection 🌍 Worldwide Reach
Free speedy delivery PORTER Courier On-Call

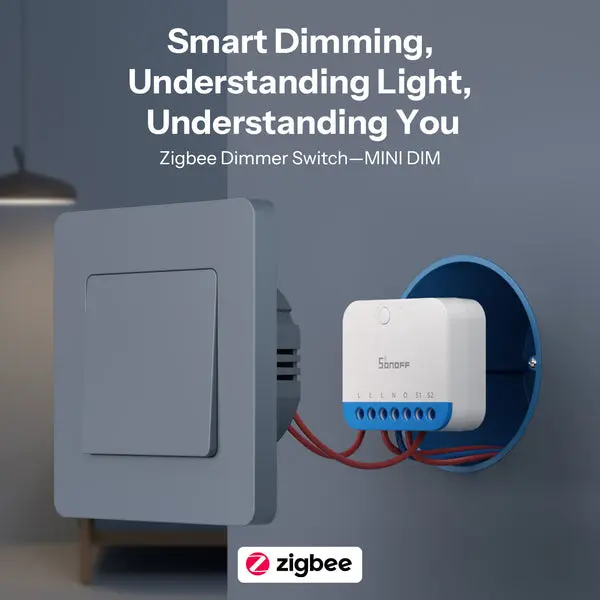

Smart Dimming,
Understanding Light,
Understanding You
Zigbee Dimmer Switch——MINI ZBDIM
Wide Compatibility—No More
Hassle Choosing Lights.
Uses trailing-edge dimming technology for broader lamp compatibility,
especially with modern dimmable LED lights.
Tune the Brightness Range to Fit Your Light
Different lamps have different dimming ranges. A simple brightness calibration helps the dimmer adapt better to your lamp, delivering smoother and more stable performance.
*Please perform brightness calibration before use.

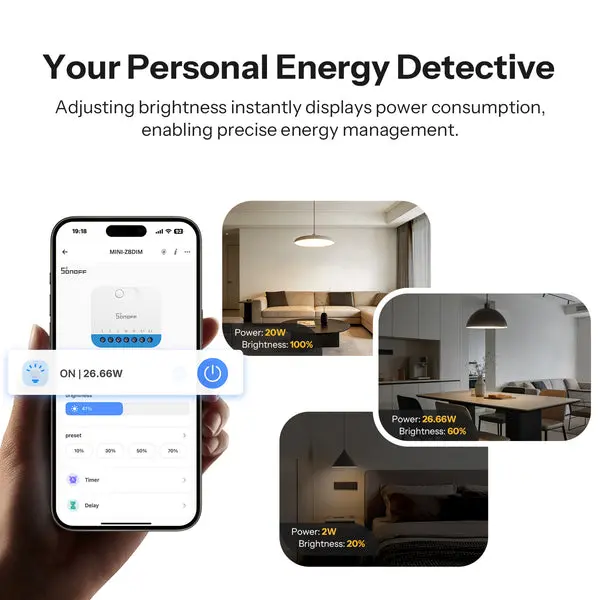

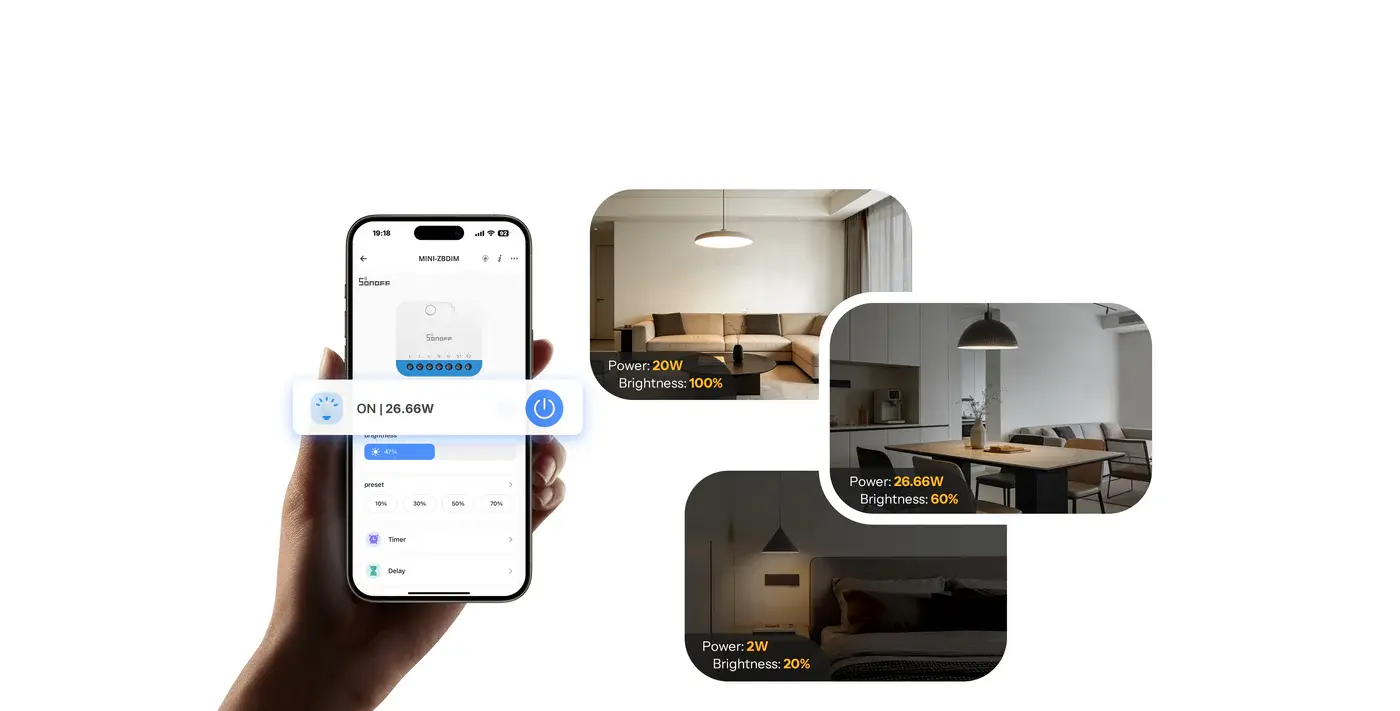

Your Personal Energy Detective
Adjusting brightness instantly displays power output, enabling precise energy management.
Independent Control from Any Two Locations

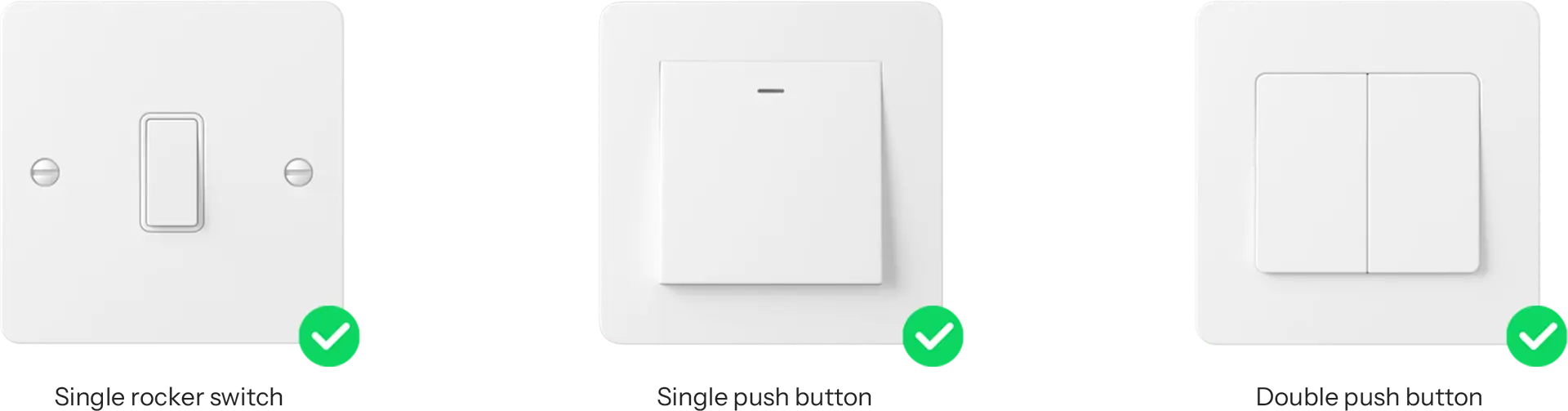

It supports two momentary or rocker switches, each simultaneously controlling the same light. You can install the switches at any two locations for flexible, convenient control—no need to walk back and forth.
Smart Timer
Set timed, delayed, and recurring tasks at will to achieve autonomous lighting control.
Let the light guide you to sleep.
Gentle light eases nighttime fear and shuts off automatically.
Cyclic scheduling gives your home a steady rhythm.
Voice Control Frees Your Hands
In one command, set your custom brightness and say goodbye to cumbersome manual controls.
Voice Control Frees Your Hands
In one command, set your custom brightness and say goodbye to cumbersome manual controls.

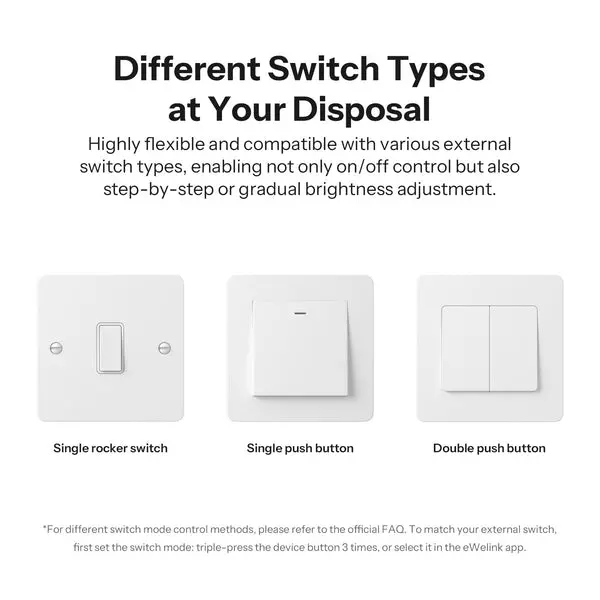

*For different switch mode control methods, please refer to the official FAQ.
To match your external switch, first set the switch mode: triple-press the device button 3 times,
or select it in the eWelink app.
Ensuring Safe Use with High Quality
Extended
Zigbee Coverage
Eliminate dead zones and enjoy
whole-home connectivity. Equipped with
Zigbee 3.0, it works as a router to bridge
and reinforce connections,
ensuring stable and smooth coverage
in every corner of your home.

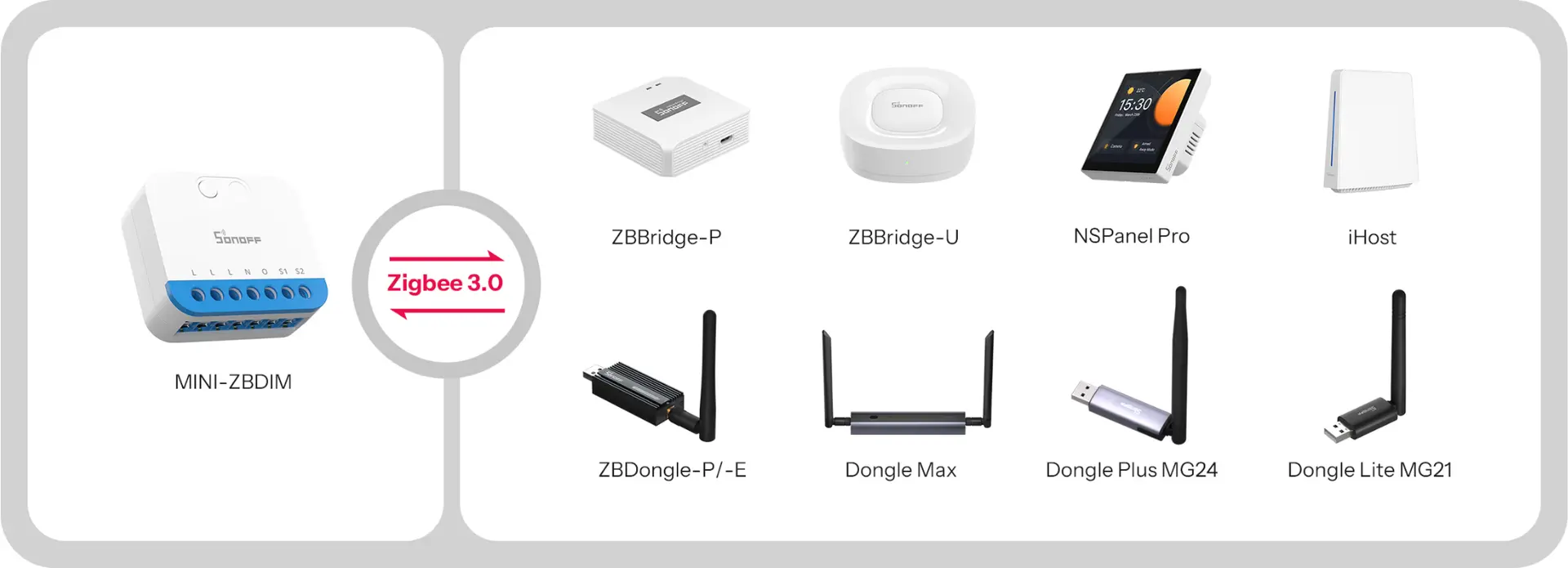

Compatible with Multiple Zigbee Hubs

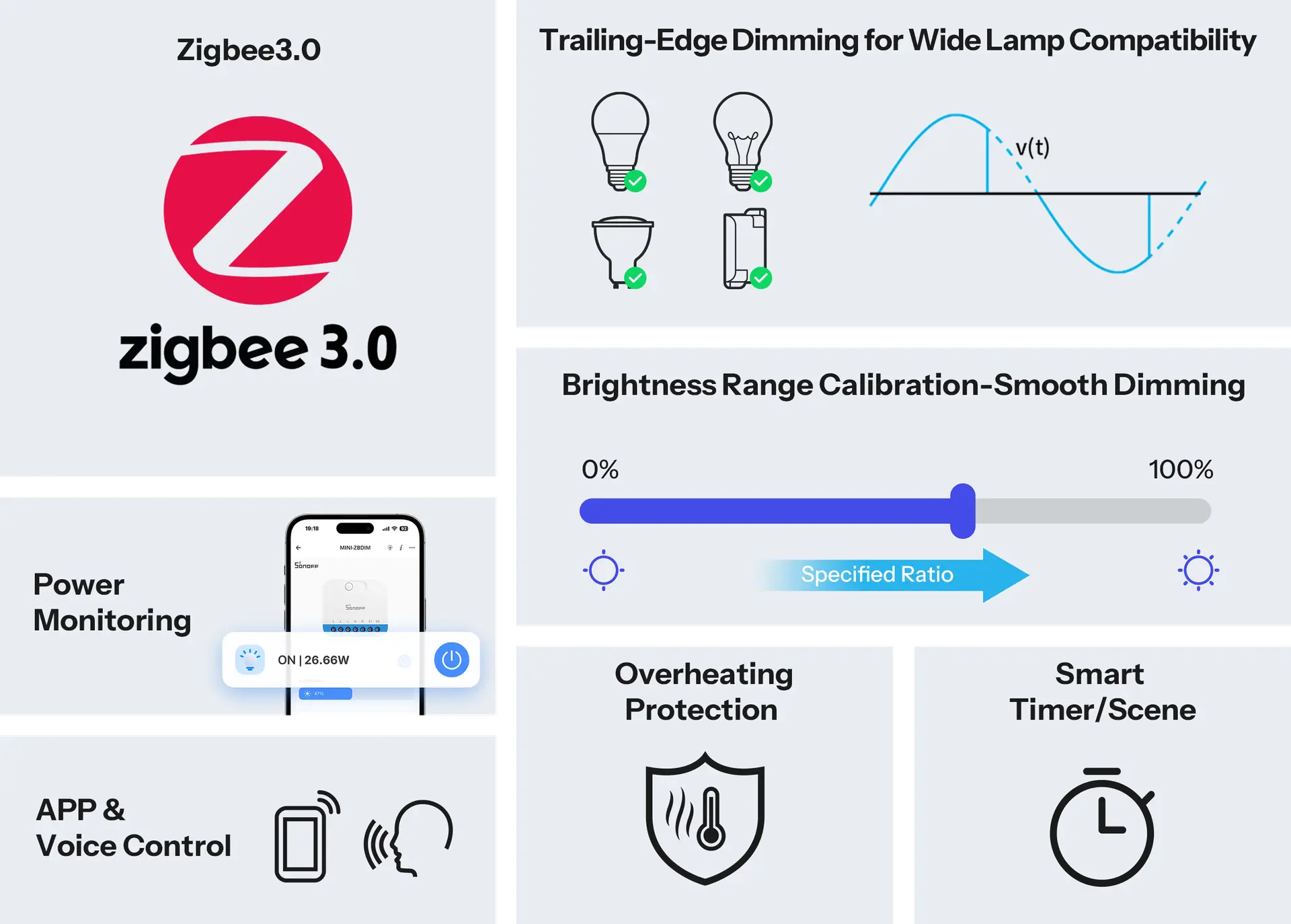

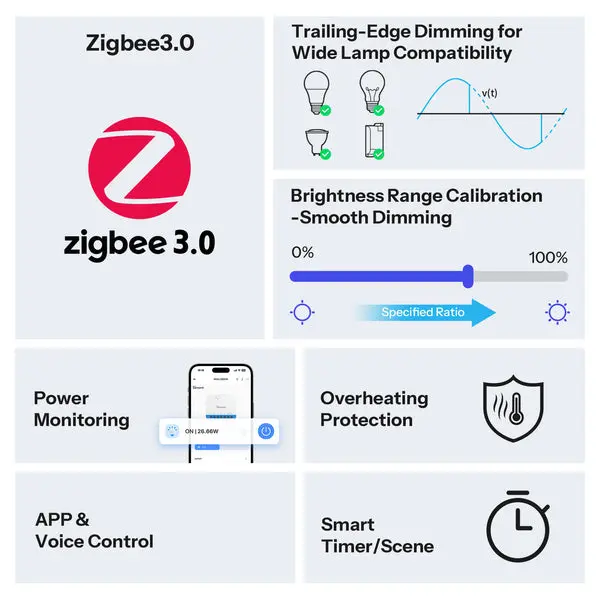

Feature Overview

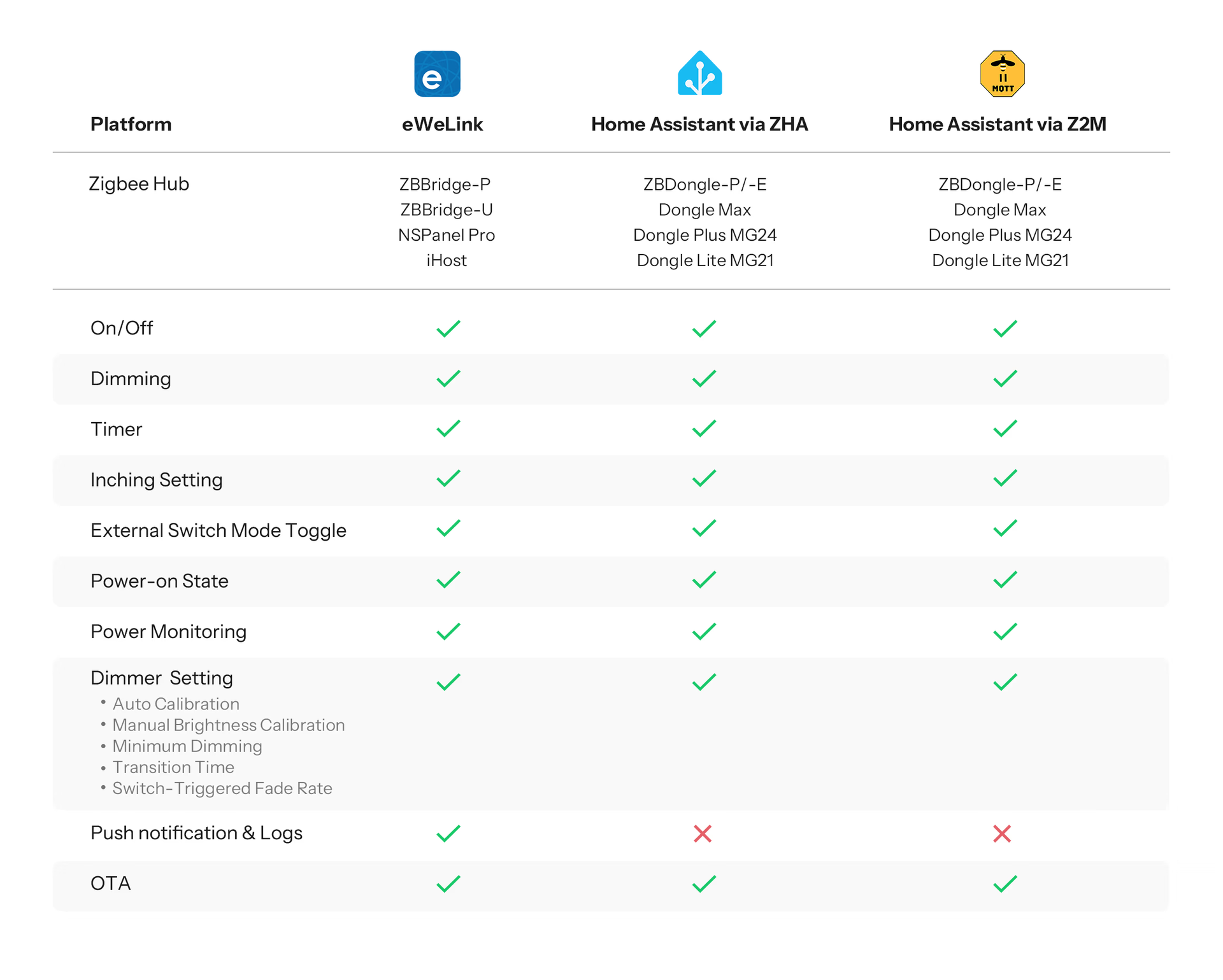

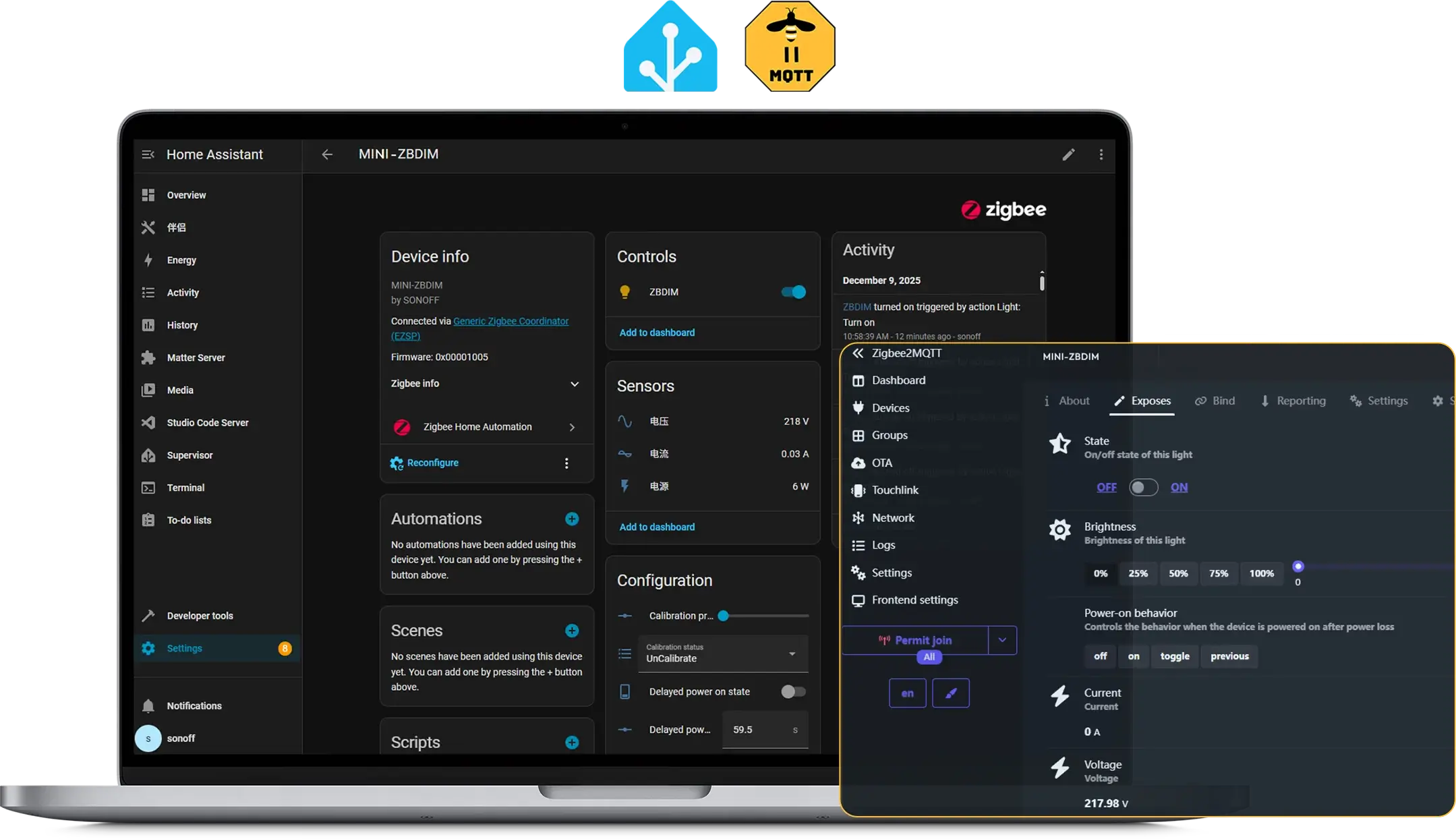

Integration with Third-party Platforms

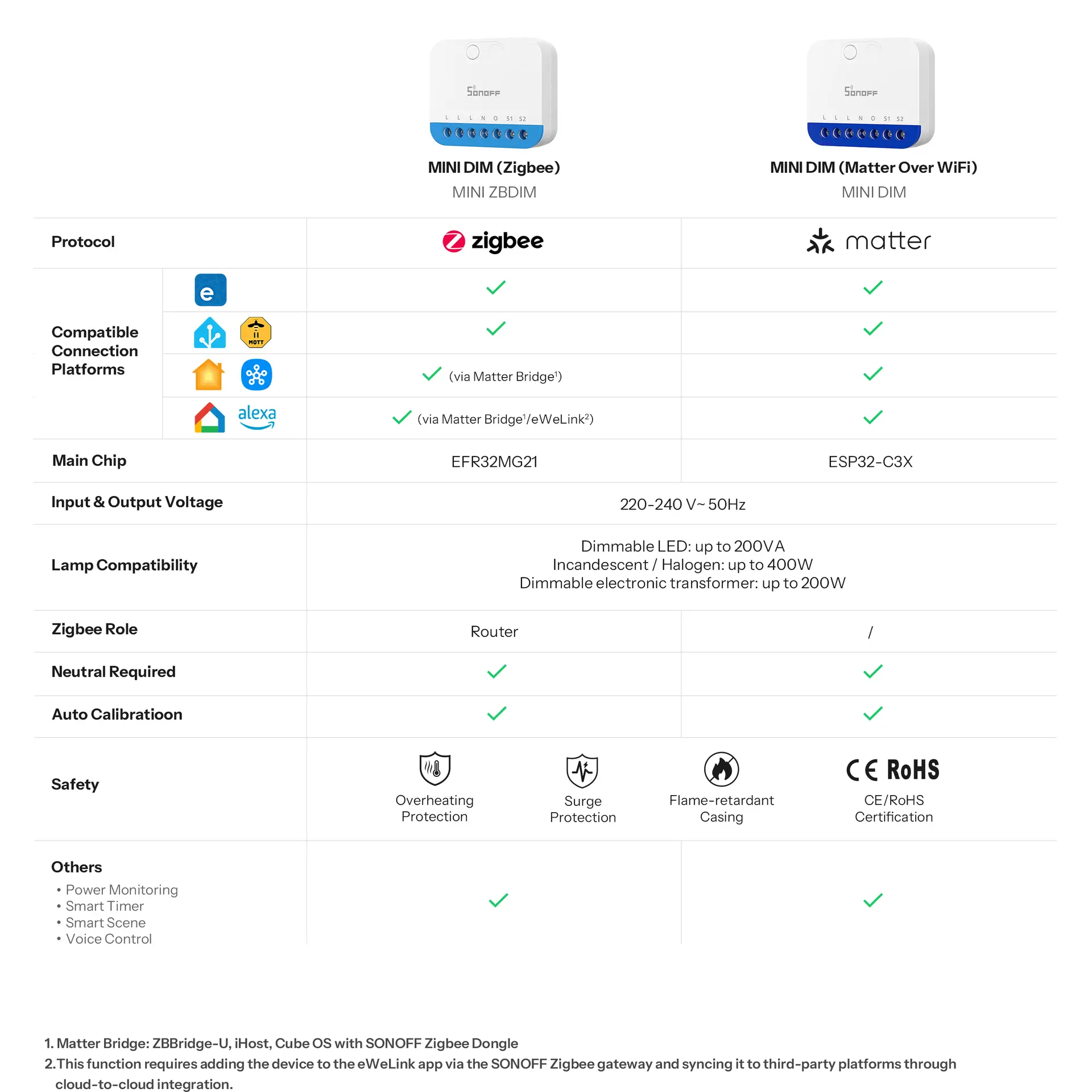

Choose Your MINI DIM

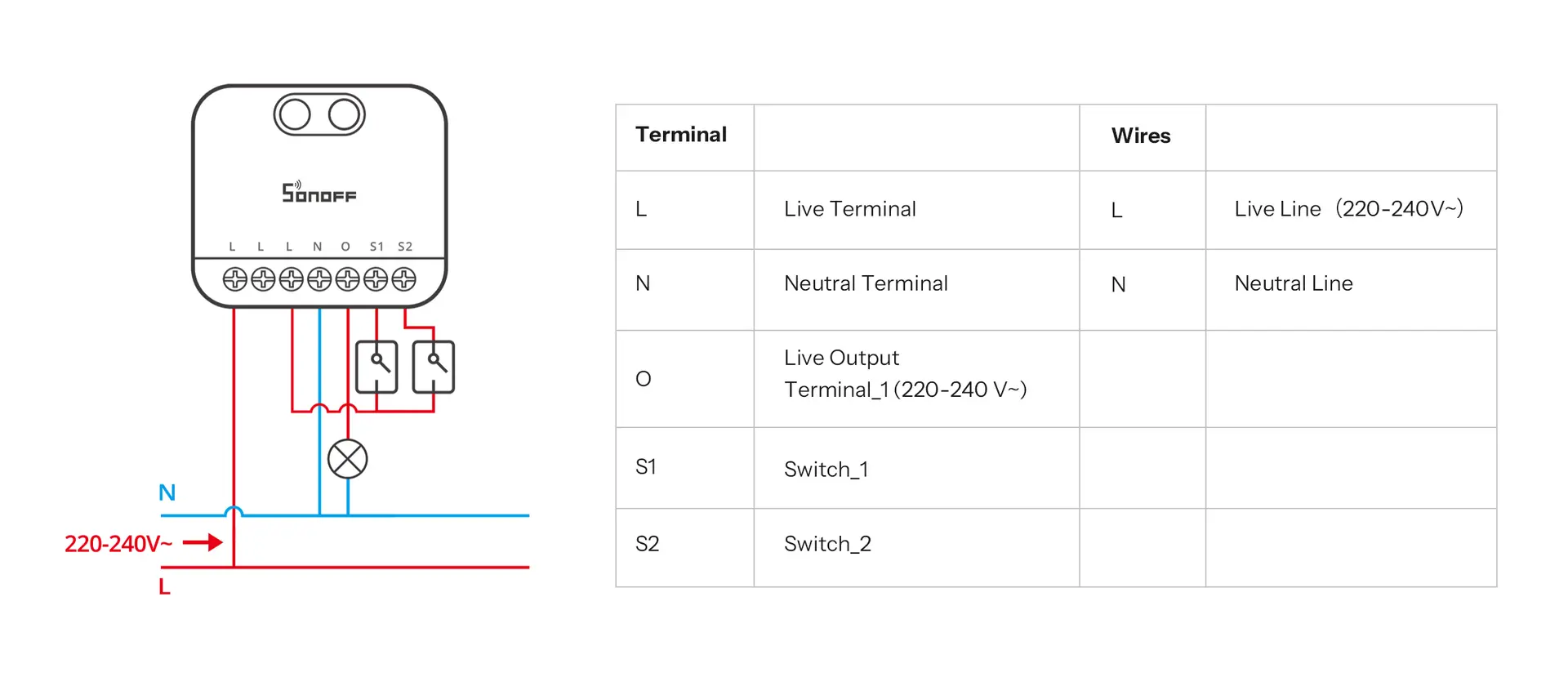

Wiring Instructions

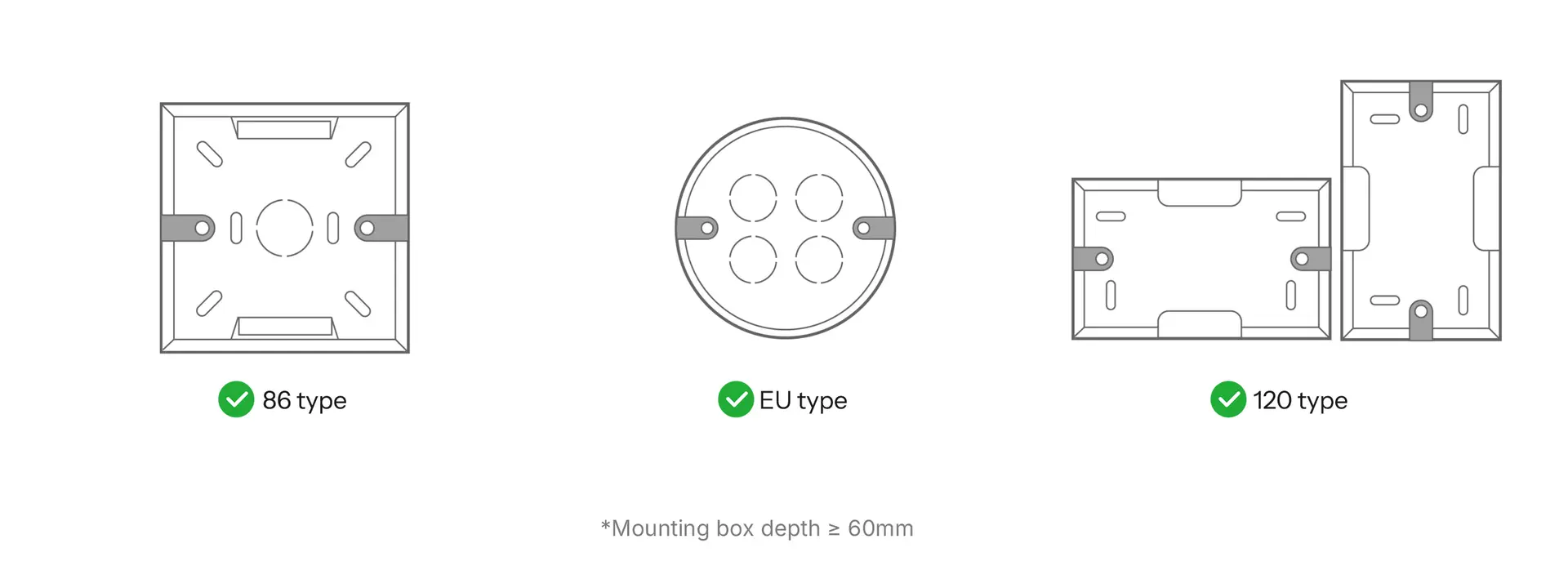

Compatible Mounting Box Sizes
Quick Use

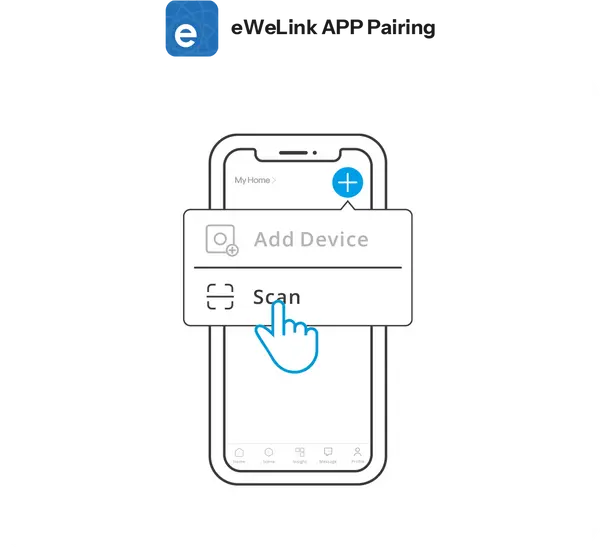

Two pairing methods are available for you to choose from, the first is to add a device via the eWeLink APP.

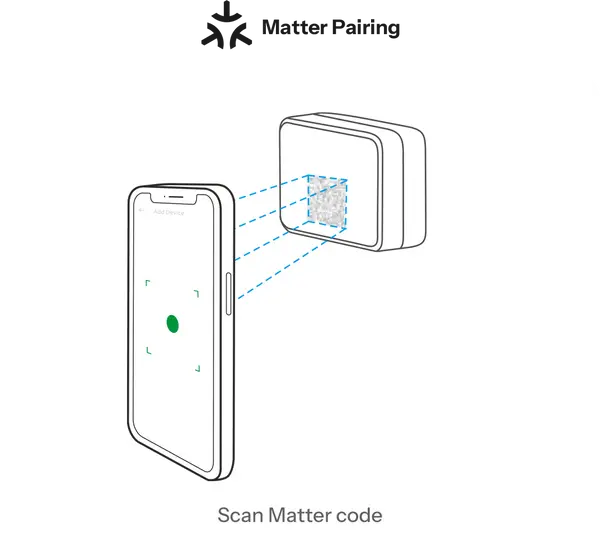

The second is to add a device via a Matter-compatible app.

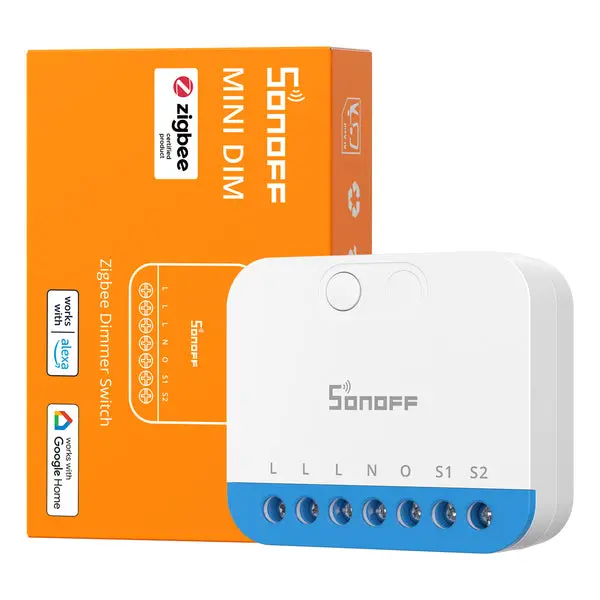

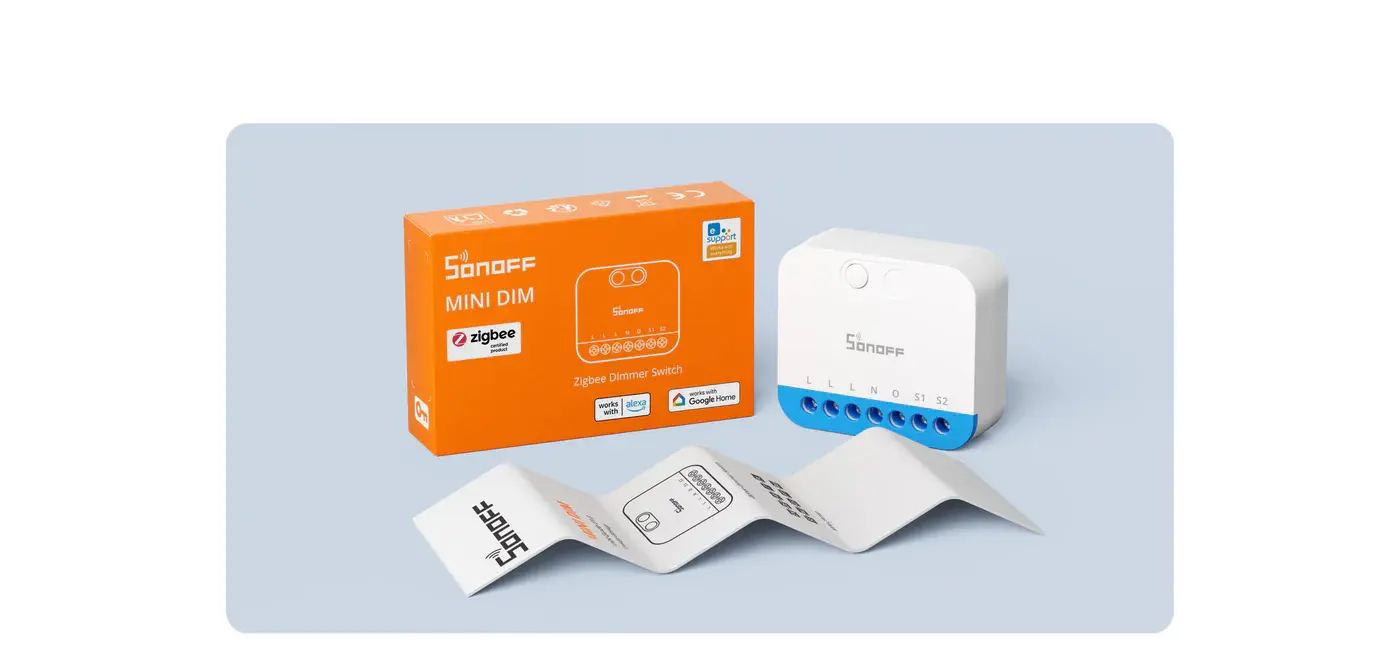

Package
Specifications
Specs & User Manual
MINI-ZBDIM is a Zigbee smart switch designed for reliable and flexible lighting control. It supports a wide range of loads, including dimmable LEDs, incandescent and halogen lamps, and electronic transformers, and can seamlessly integrate with Alexa, Google Assistant, and IFTTT. With smooth and stable dimming, real-time power monitoring, advanced overheat protection, intelligent scene settings, and support for voice and app control, MINI-ZBDIM delivers safe, smart, and effortless lighting management.
| Model | MINI-ZBDIM |
| Product Series | MINI Extreme Series |
| Rated Voltage | 220–240 V |
| Rated Frequency | 50 Hz |
| Max Load | 2 A |
| Net Weight | 24.5 g |
| Product Dimensions | 45 × 39.4 × 16.8 mm |
| Working Temperature | −10℃ to 40℃ |
| Casing Material | PC |
FAQ
Yes. Once added to the eWeLink platform, it can be integrated with third-party services such as Amazon Alexa, Google Assistant, or Home Assistant for voice control.
Yes. With its ultra-compact design, it can be easily installed inside standard wall switch boxes without taking extra space.
MINI ZBDIM is compatible with the following load types:
*Dimmable LED lamps: up to 200VA
*Incandescent bulbs: up to 400W
*Halogen bulbs: up to 400W
*Dimmable electronic transformers: up to 200W
MINI ZBDIM supports third-party platforms like Home Assistant and Zigbee2MQTT when paired with the SONOFF Dongle, enabling cross-brand device integration.
*Using the eWeLink app, calibration can be done via the app or by pressing and holding the device button for 10 seconds
*With third-party apps, press and hold the button for 10 seconds
The LED will show a breathing light during the calibration process.
