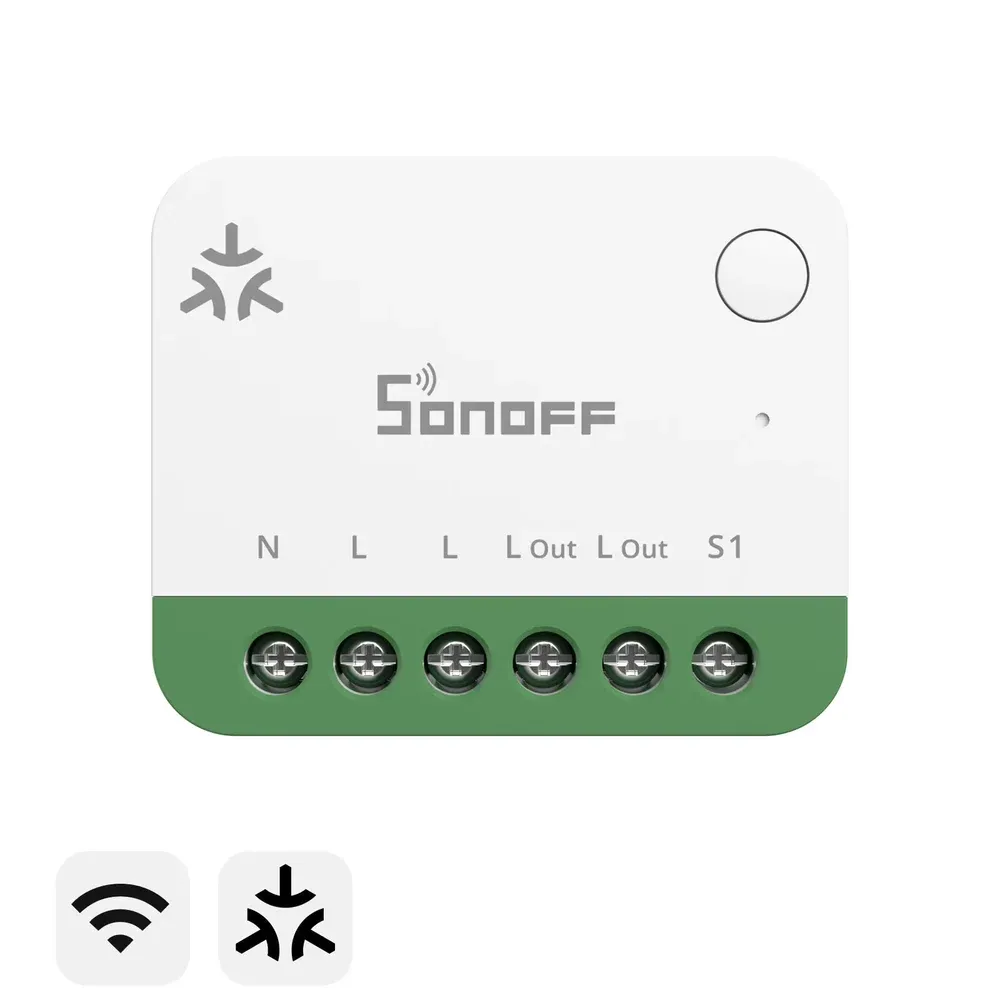

Matter Over WiFi Smart Switch — MINI ONE PM (MINI-1GSP)

Mini Extream Series Gen5

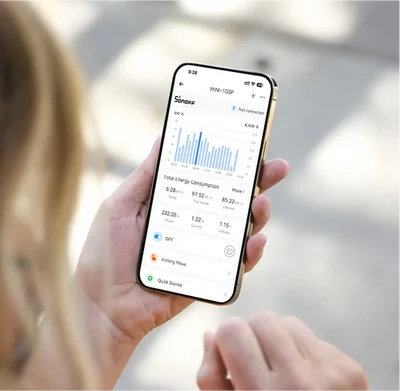

Know Every Watt, Anywhere

Keep track of energy usage in real time and review historical trends through the app, local web interface, or

Home Assistant for a better understanding and management of your energy consumption.

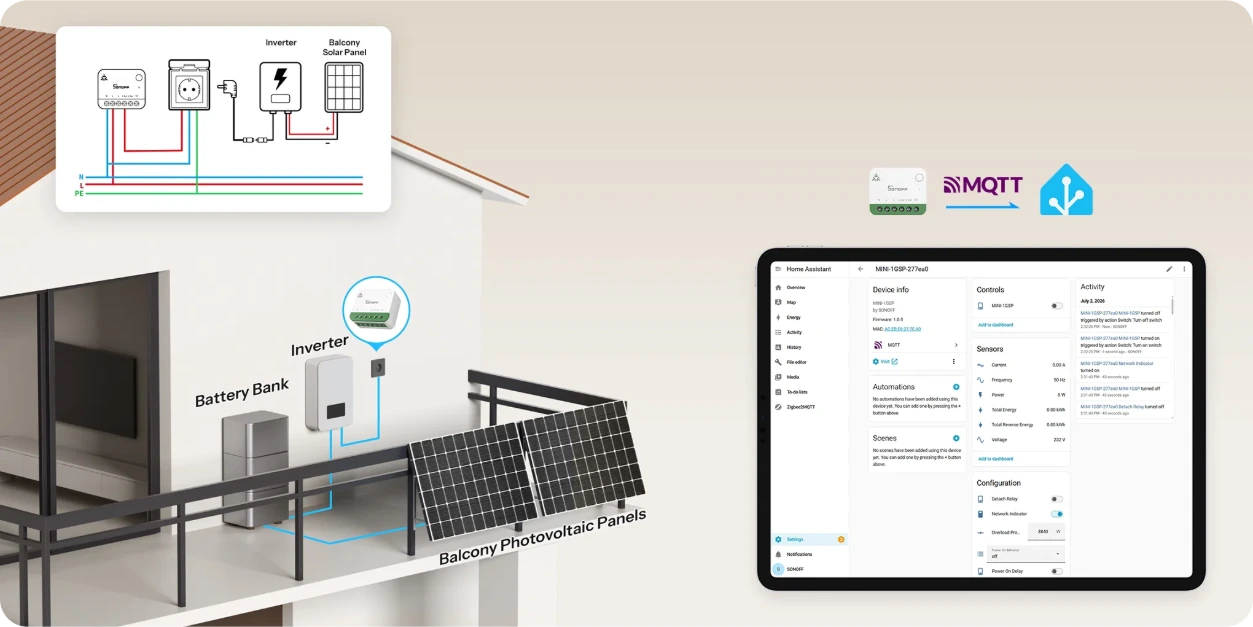

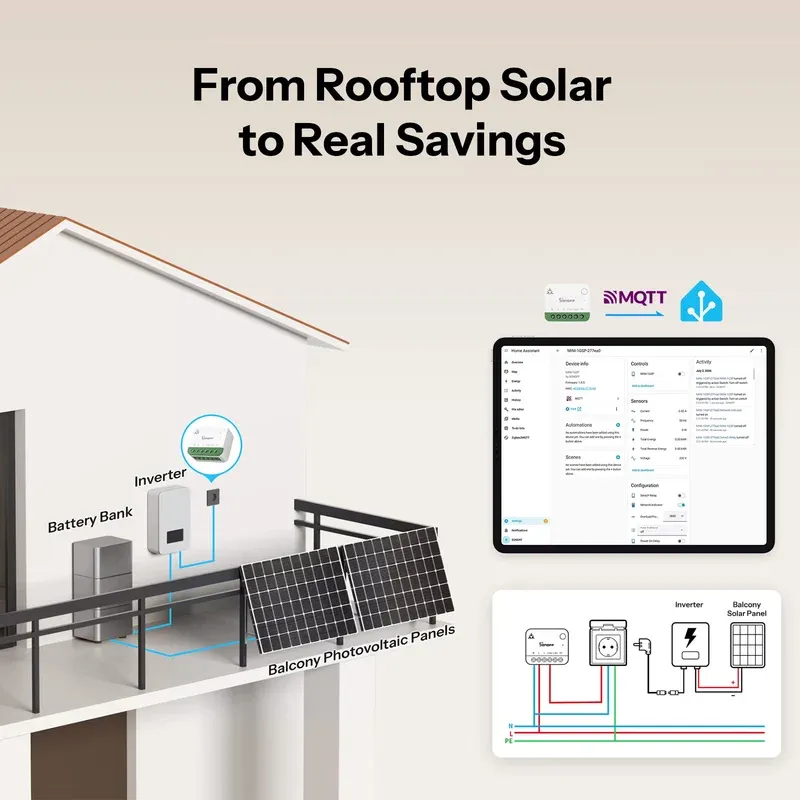

From Rooftop Solar to Real Savings

Track the energy generated by your solar panels and understand the impact on your household electricity costs with clear, real-time insights.

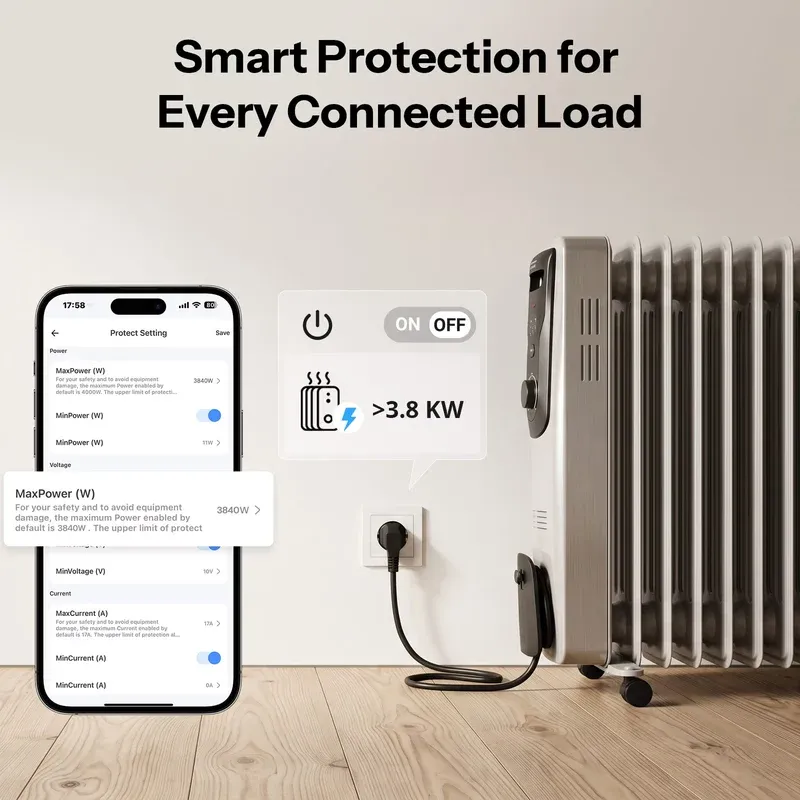

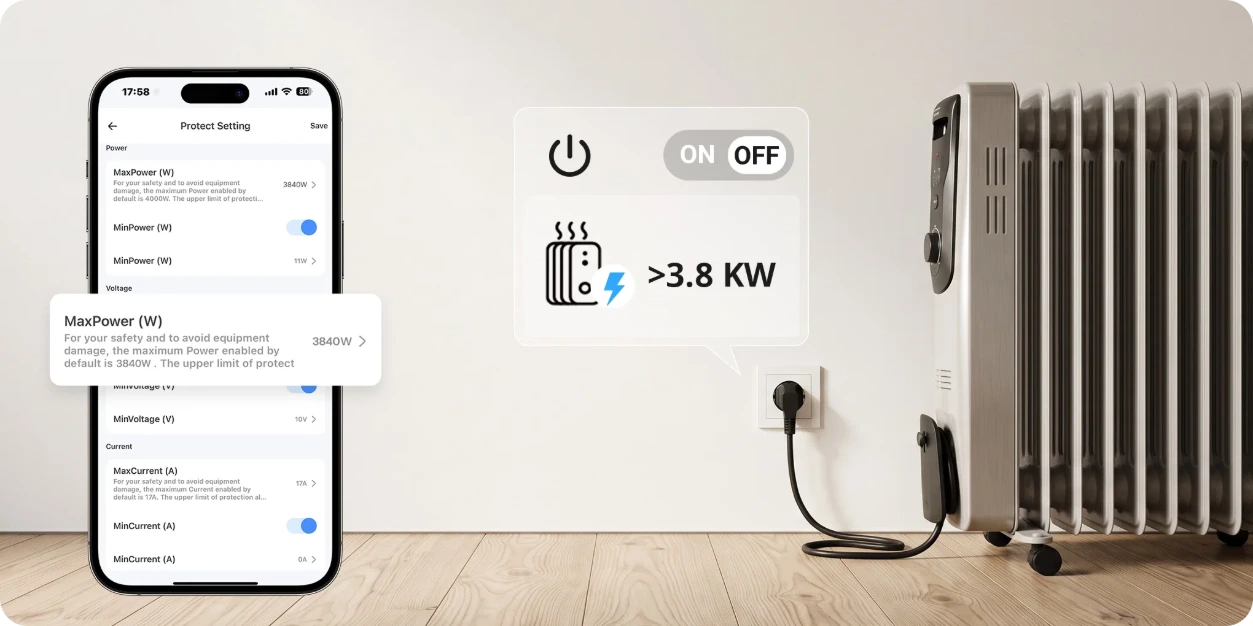

Smart Protection for Every Connected Load

Set safety thresholds for current, voltage, and power. The device automatically switches off before

 electrical issues turn into appliance failures.

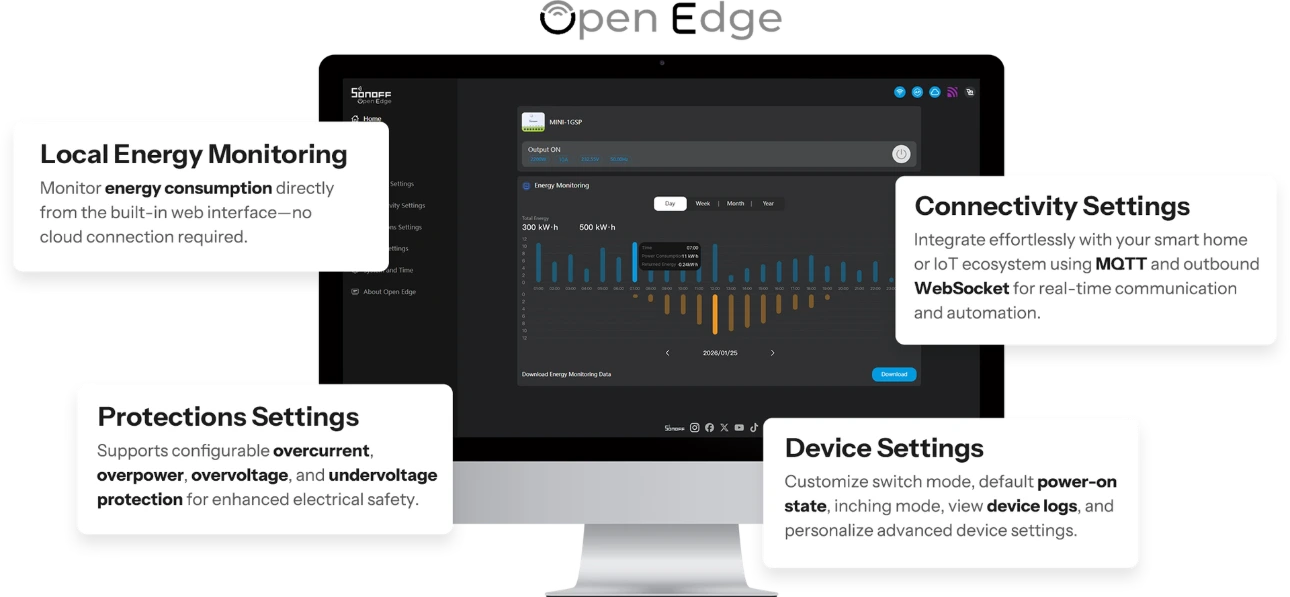

SONOFF 'OpenEdge' Console

Configure, monitor, and control your device directly from a web browser on your local network.

Reduce cloud dependency while enjoying faster local access and enhanced privacy.

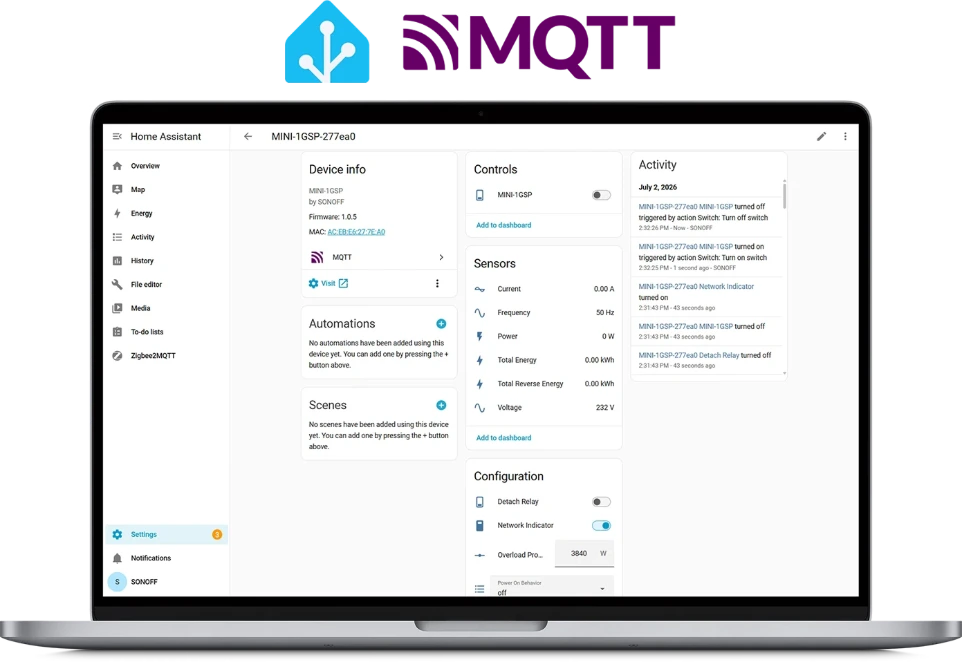

Home Assistant Integration via MQTT Discovery

Connect your device to Home Assistant using MQTT Discovery for real-time data, automation, and seamless smart home integration.

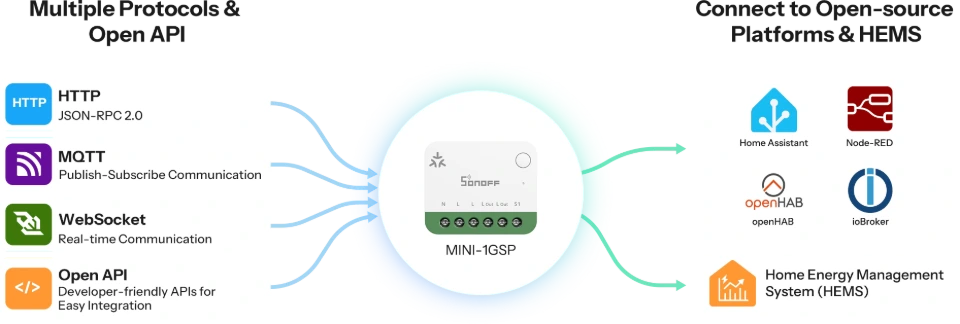

Open API for Unlimited Possibilities

Supports JSON-RPC 2.0 via HTTP, WebSocket, and MQTT for accessing device data and control functions.

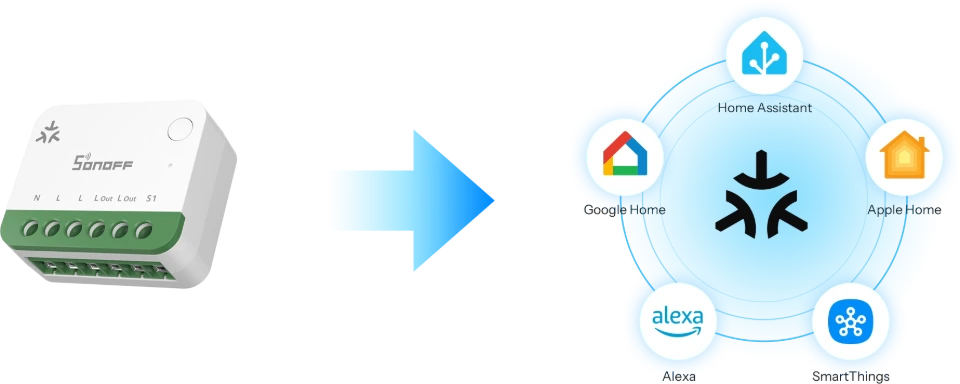

Perfectly Compatible with the Matter Ecosystem

With a wider working coverage! MINI-1GSP supports joining the Matter ecosystem, you can integrate it into your usual apps,

such as Apple Home, Google Home, and Alexa.



Works Perfectly with Apple Ecosystem

— Fully Supports Siri, iPhone, iPad and Apple Watch.



Smarter Control, Simpler Living

Control devices remotely, use voice commands, create schedules, and

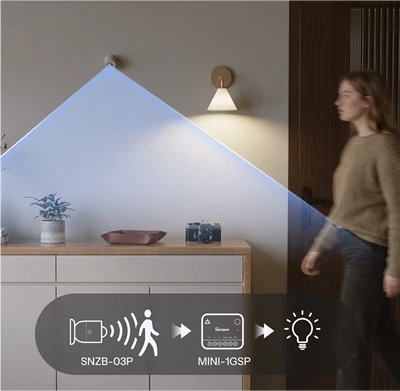

build smart automations that fit your daily routine.

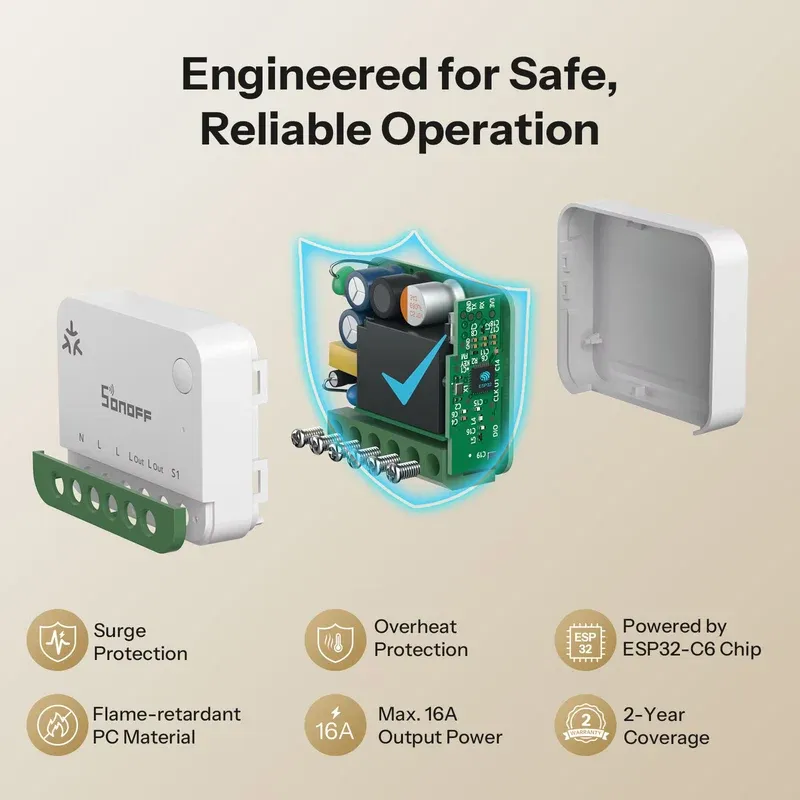

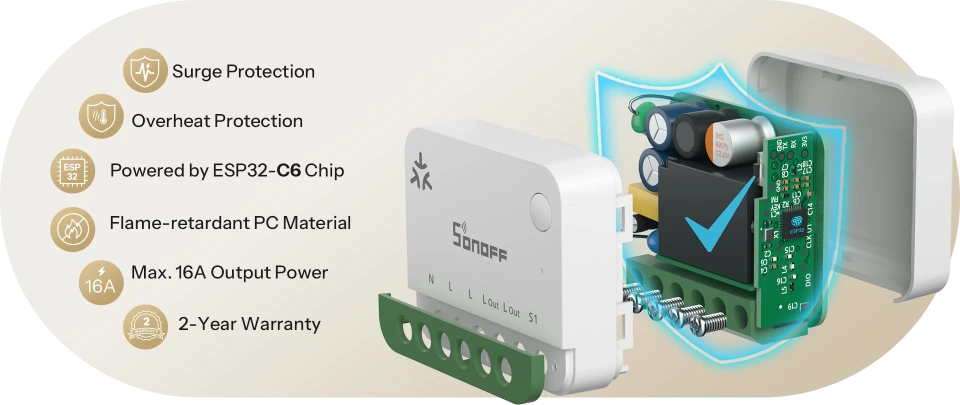

Engineered for Safe, Reliable Operation

Designed with premium components and built-in protections to ensure safe operation and long-term reliability.

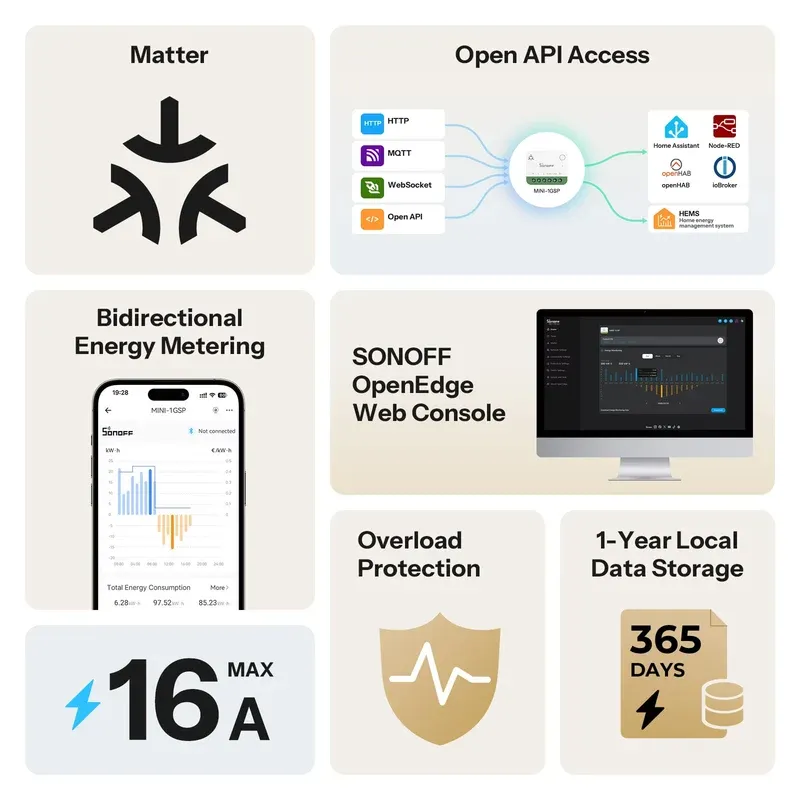

Feature Overview

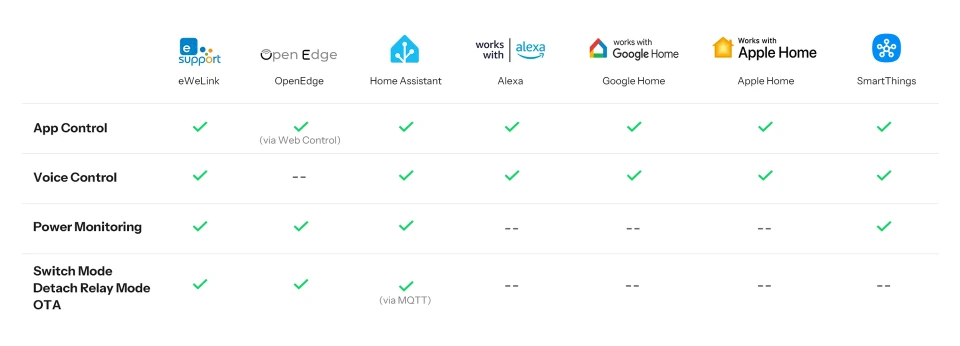

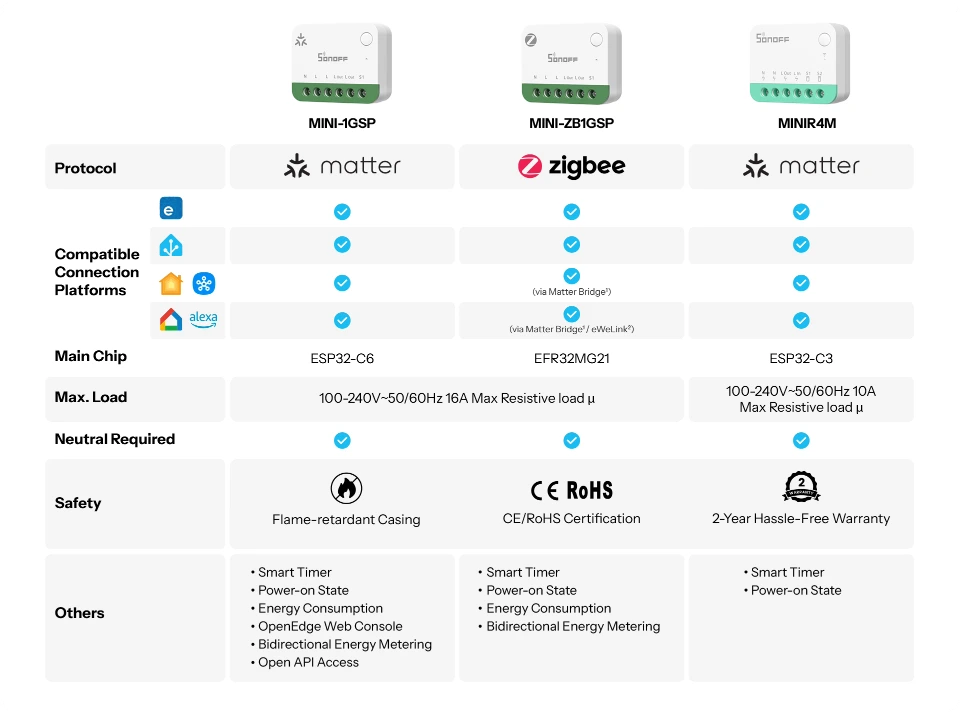

Product Comparison

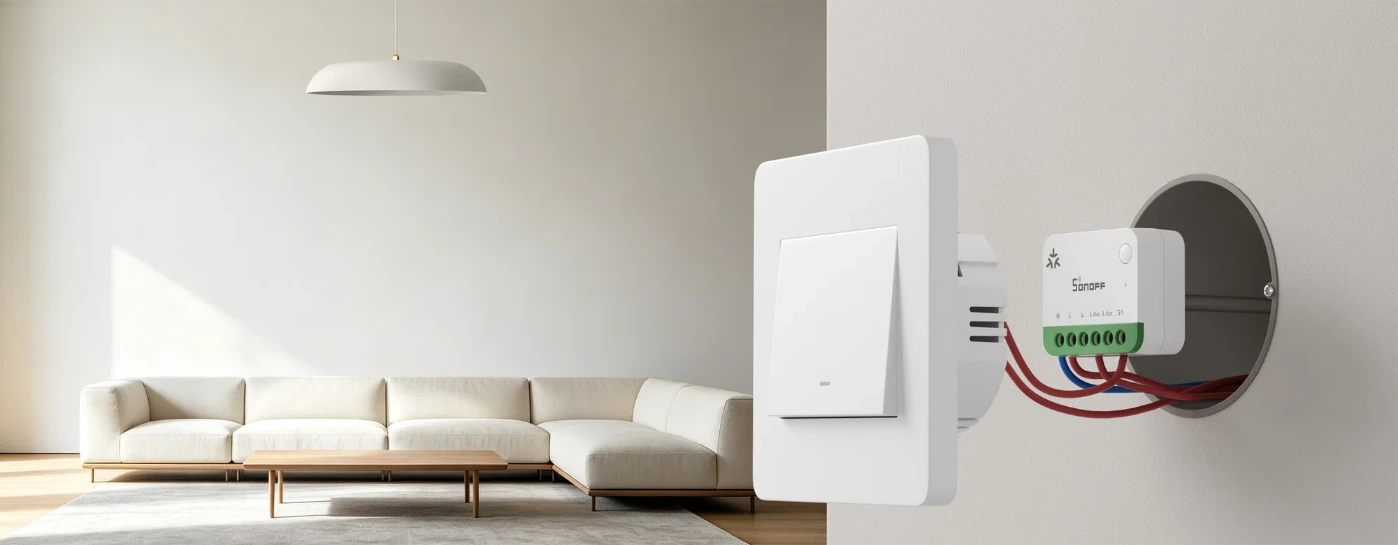

Wiring Instructions

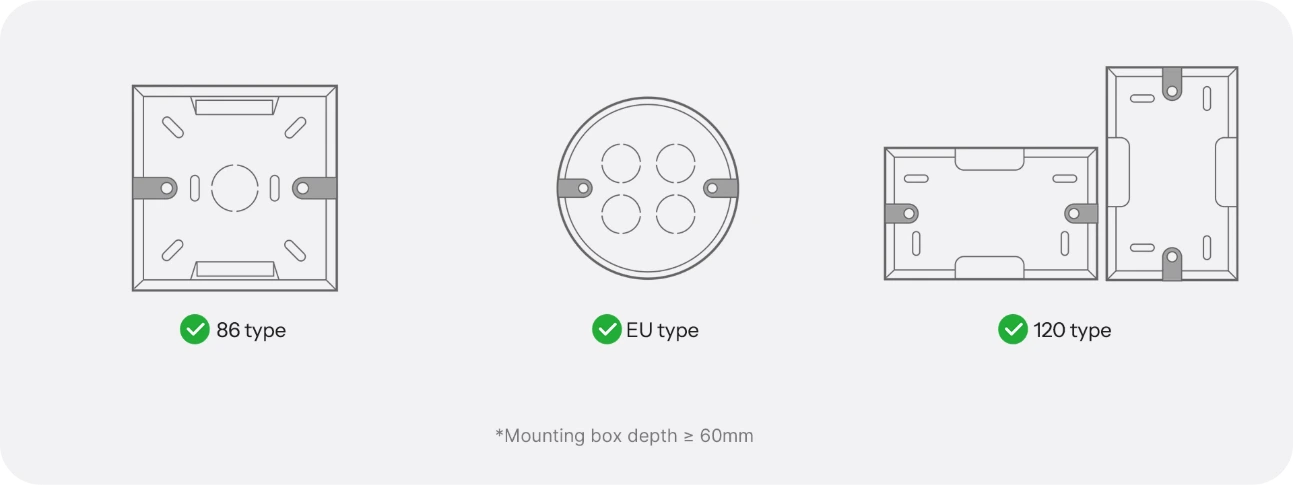

Compatible Mounting Box Sizes



Specification

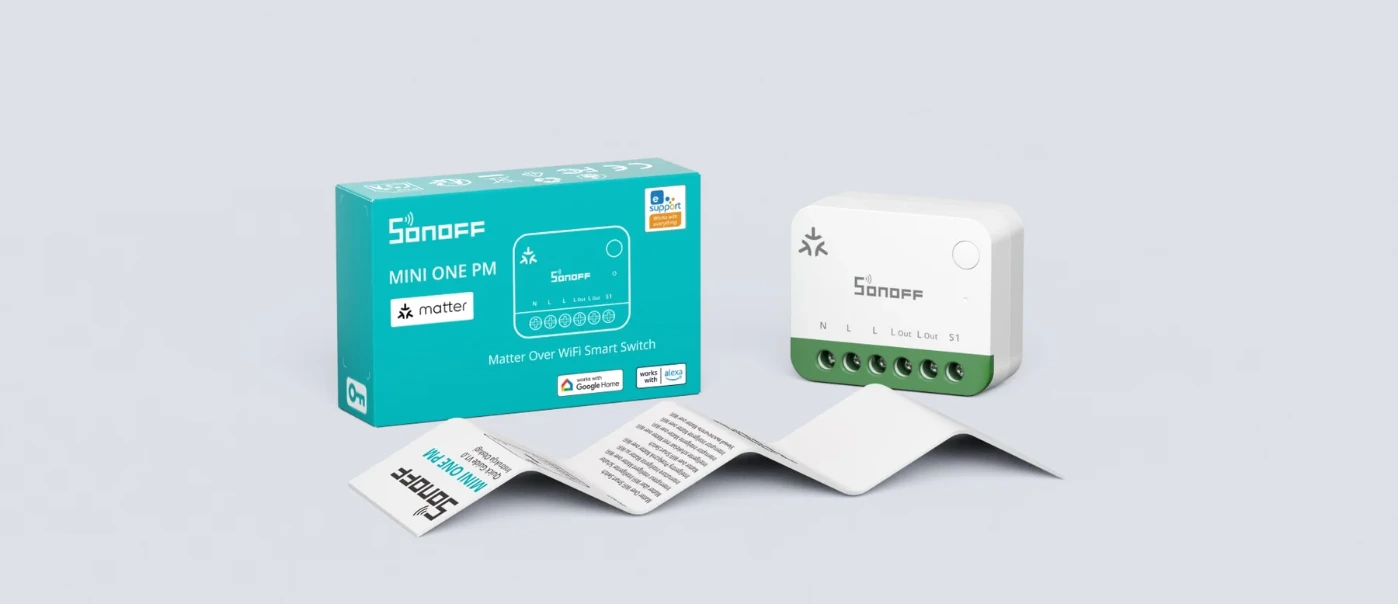

Package



Specs & User Manual

MINI-1GSP is a Matter-over-Wi-Fi smart metering switch designed for smarter control, open connectivity, and efficient energy management. It provides local web access for private device configuration and control. Through HTTP, WebSocket, MQTT, and open API interfaces, you can access device data and functions and seamlessly integrate MINI-1GSP with third-party platforms such as Home Assistant, OpenHAB, ioBroker, and Node-RED. With energy monitoring and data visualization, it helps optimize energy usage. Built-in safety protection ensures reliable operation, while Matter compatibility enables seamless integration with major Matter-compatible smart home platforms.

User Manual(PDF)

​​​​​​​​​​​​​​​​​​

Product Series	MINI Extreme Series Gen5
Product Name	Matter Over WiFi Smart Switch
Product Model	MINI-1GSP
MCU	ESP32-C6
Rating	16A 100–240V~ 50/60Hz Max Resistive Load μ
WiFi	IEEE 802.11 b/g/n 2.4GHz
Net Weight	27.3g
Dimensions	39.5 × 33 × 16.8mm
Color	White + Green
Housing Material	PC
Recommended Wire Gauge	18 AWG to 14 AWG (0.75mm² to 2.5mm²), SOL/STR copper conductor only
Installation Location	Indoor concealed installation
Operating Temperature	-10℃ ~ 40℃
Operating Humidity	10% ~ 90% RH, non-condensing
Certifications	CE / RoHS / FCC

FAQ

​

1.Will energy data still be recorded when the device is offline?

In eWeLink, when the device is offline, energy data will continue to be stored locally. Once the device comes back online, the local data will be re-synchronized and displayed.

In a LAN-only environment, the device's local web interface and Home Assistant (via MQTT integration) still synchronize data in real time.

Note: If the device is completely powered off, data cannot be stored.

2.Can this device monitor the power level of balcony solar panels?

Yes. The device features bi-directional metering, and you can set the device's power generation as a negative value in the app.

3.Does MINI-1GSP require a neutral wire?

Yes, the MINI-1GSP requires a neutral wire for installation.
