Compact Size.
More Possibilities.

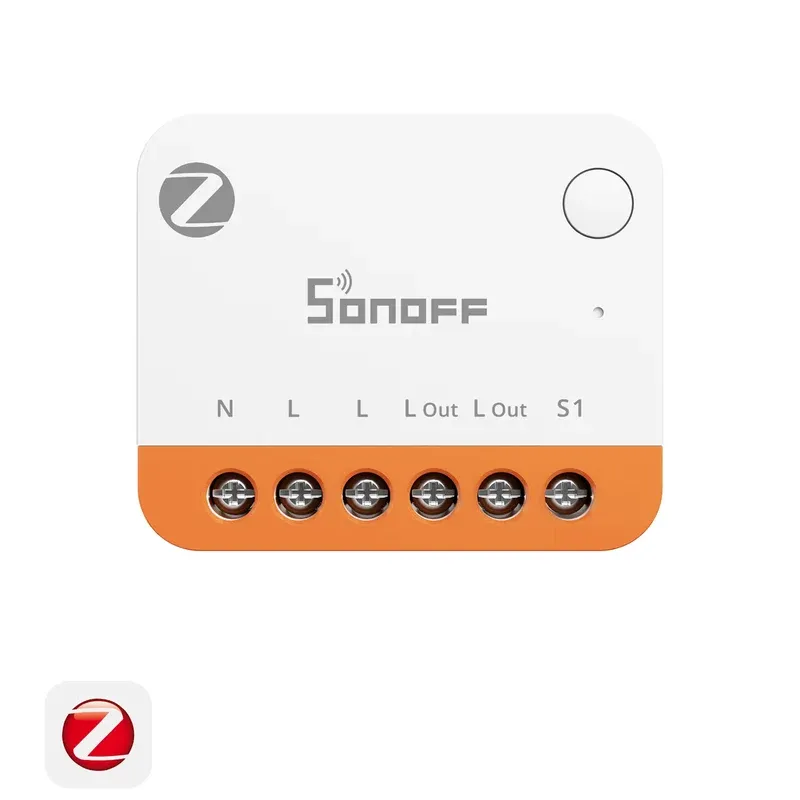

SONOFF Zigbee Smart Switch— MINI ONE
(Zigbee) | MINI-ZB1GS
*Require a Zigbee Hub

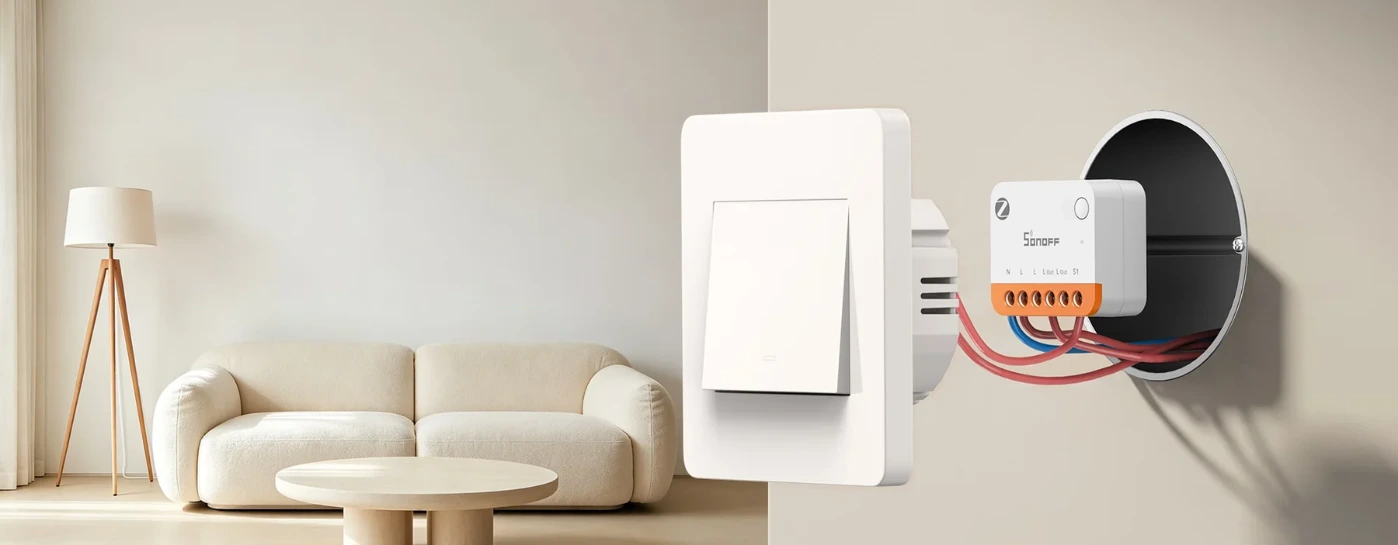

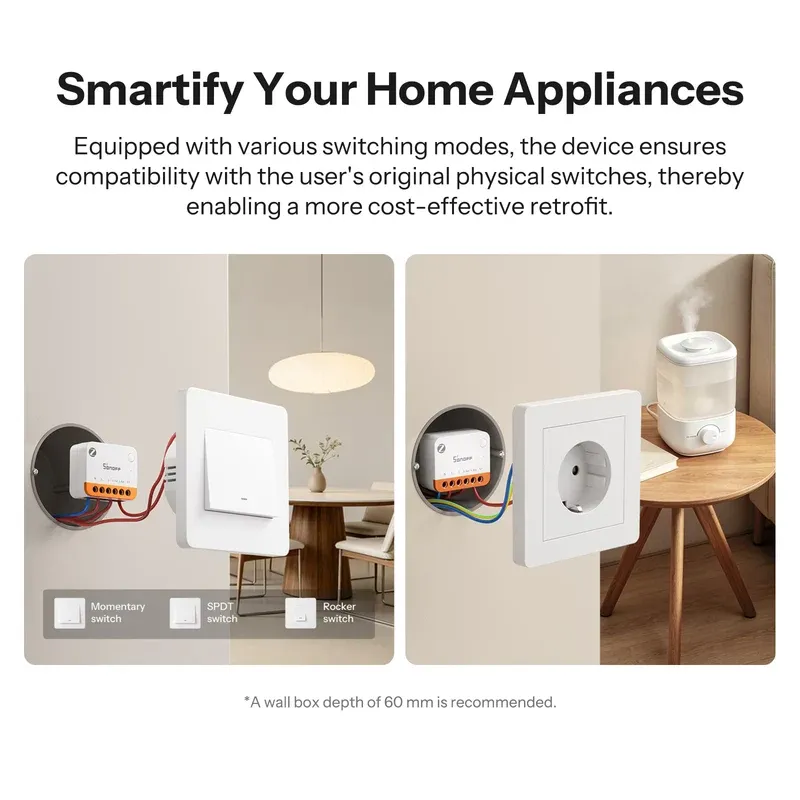

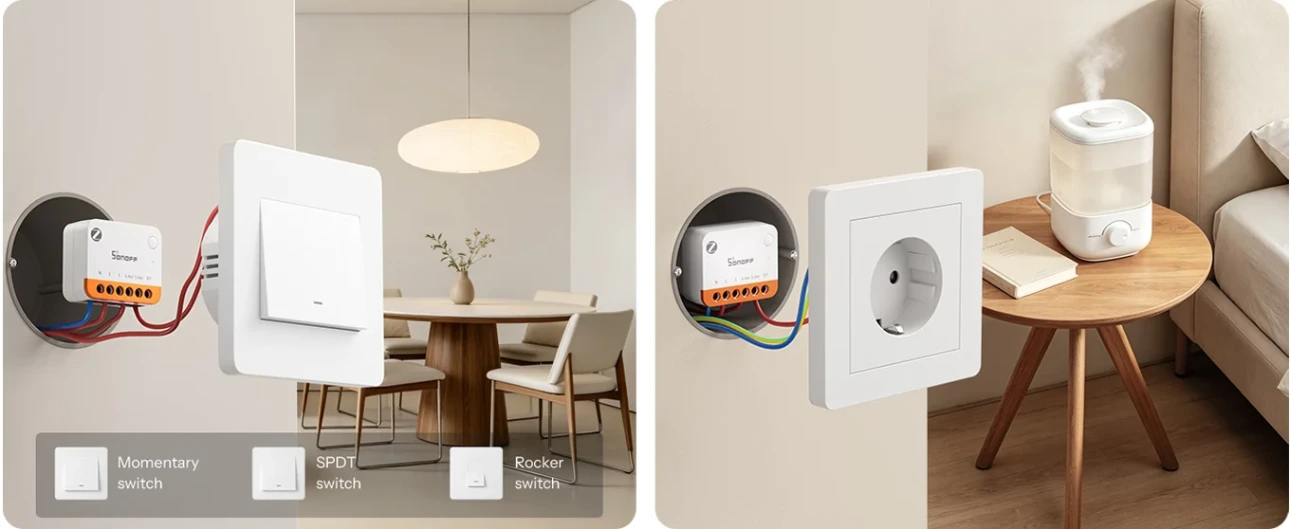

Smartify Your Home Appliances
Equipped with various switching modes, the device ensures compatibility with the user's original
physical switches, thereby enabling a more cost-effective retrofit.
*A wall box depth of 60 mm is recommended.
16A Capacity for More Applications
Handle higher loads with confidence, from lighting circuits to electric heating and ventilation.

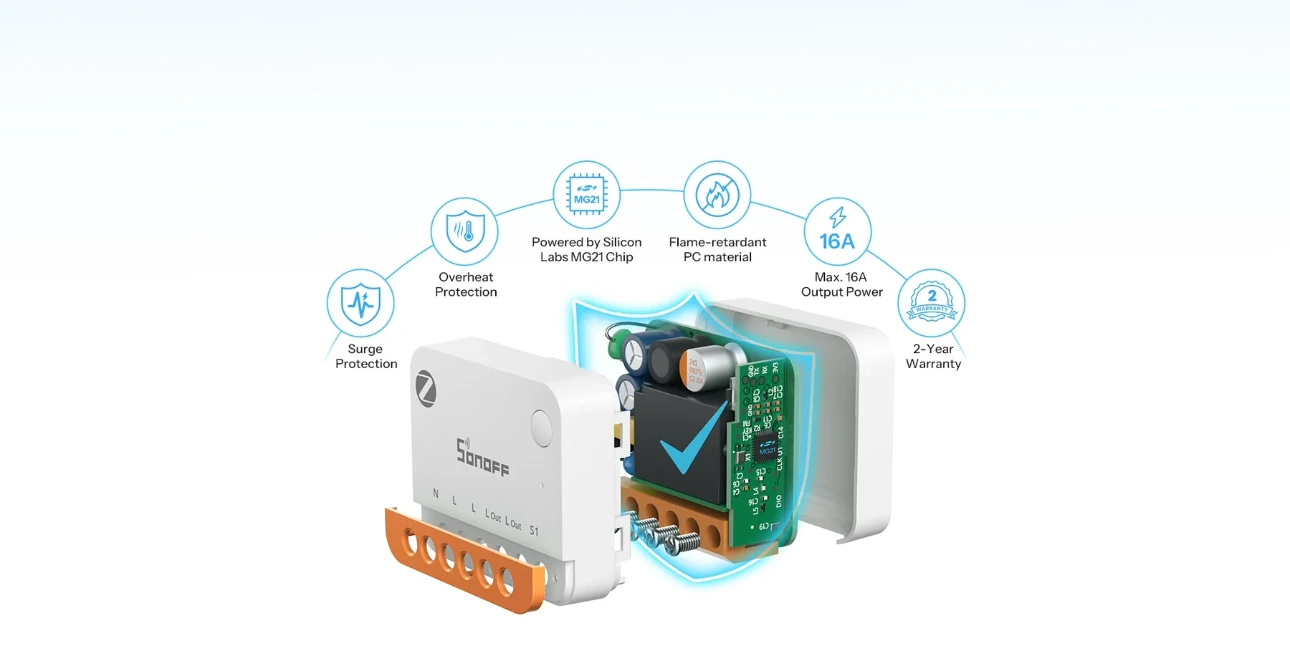

Safe and Reliable
Automatically cuts off power in case of an emergency to ensure the safety of your home's electrical system.

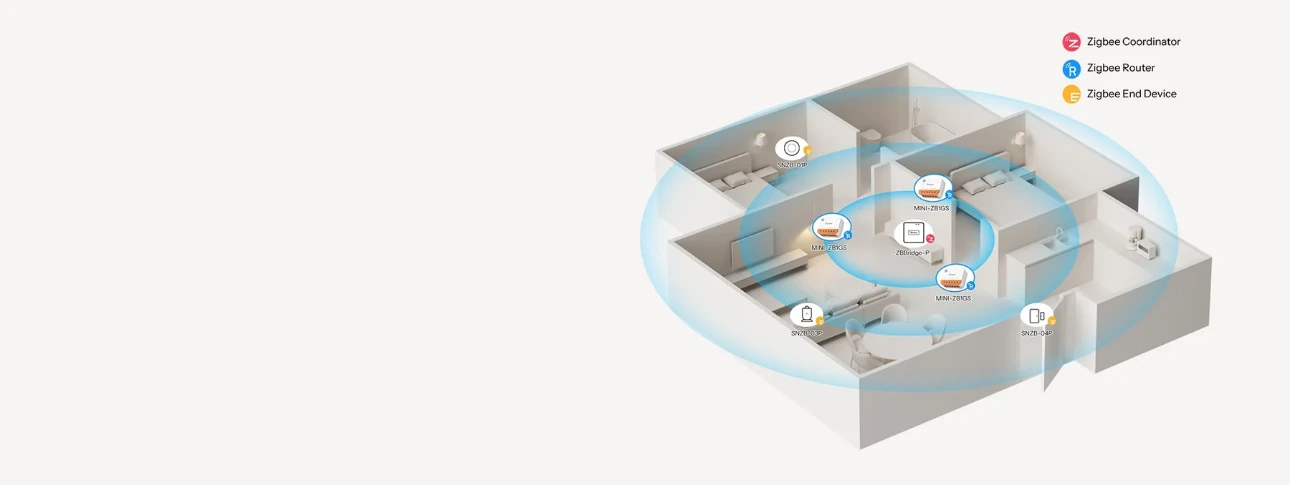

Strengthen Your
Zigbee Mesh Network
MINI ONE (Zigbee) can work as a zigbee signal repeater,
transmit the zigbee signal among your zigbee devices.
*MINI ONE (Zigbee) effective communication distance to the gateway
is 180 meters by default. With Turbo mode enabled, it reaches 250 meters.

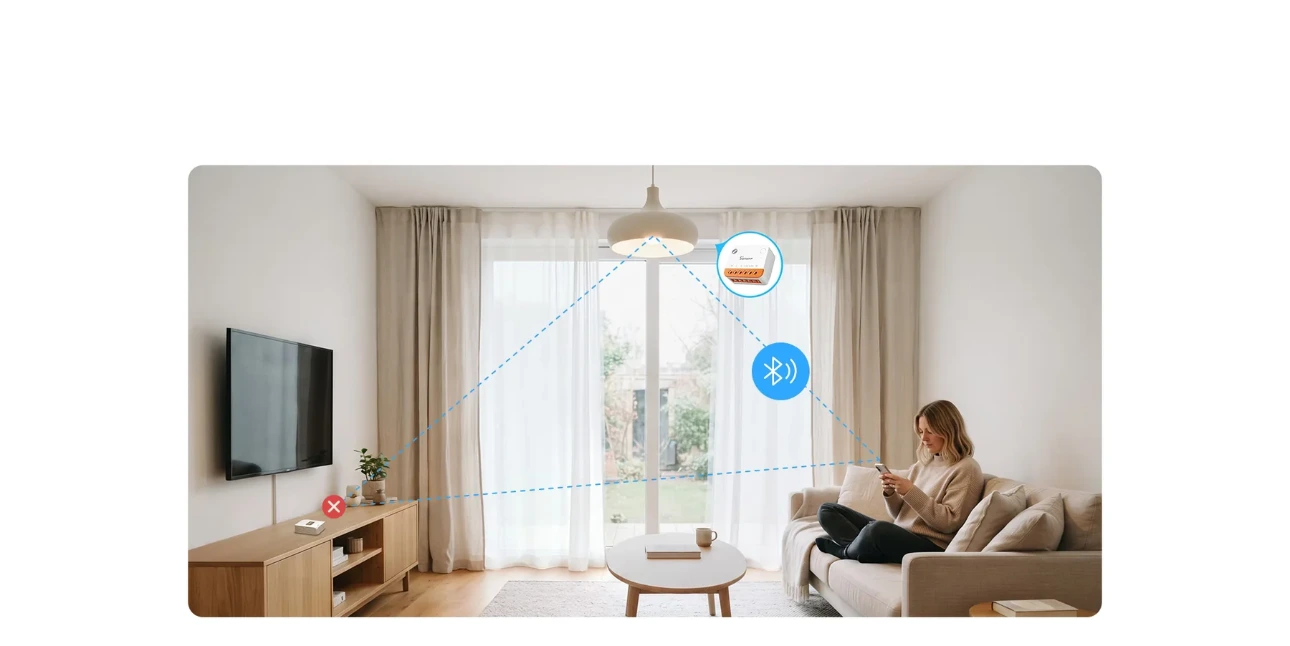

Gateway-Free Setup — Proximity Mode
No Zigbee gateway? No stable signal? Just use Proximity Mode to connect your phone directly for irrigation control and basic settings.
.

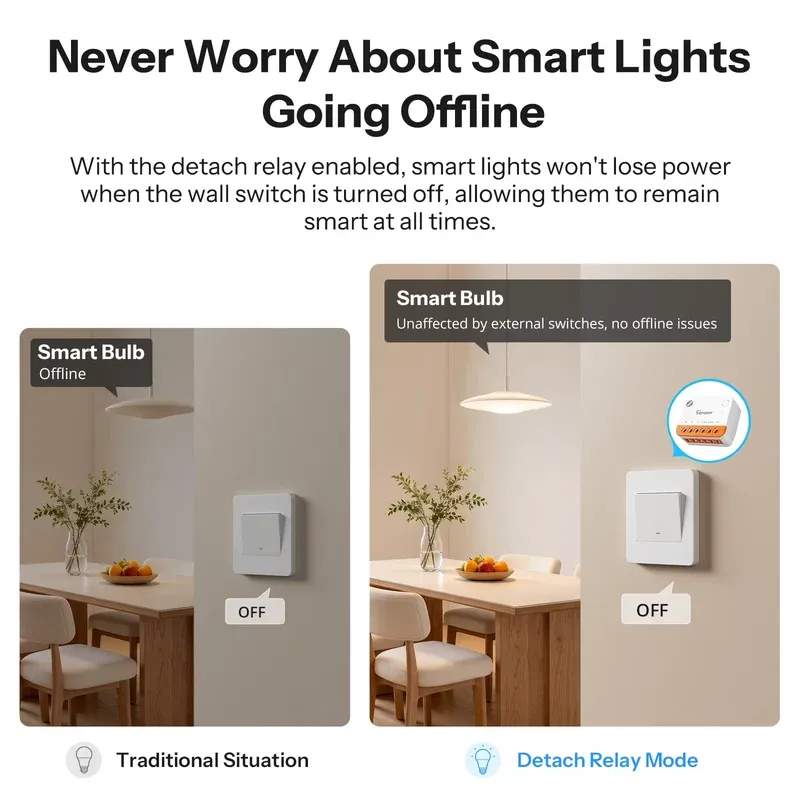

Never Worry About Smart Lights Going Offline
With the detach relay enabled, smart lights won't lose power when the wall switch is turned off, allowing them to remain smart at all times.
.

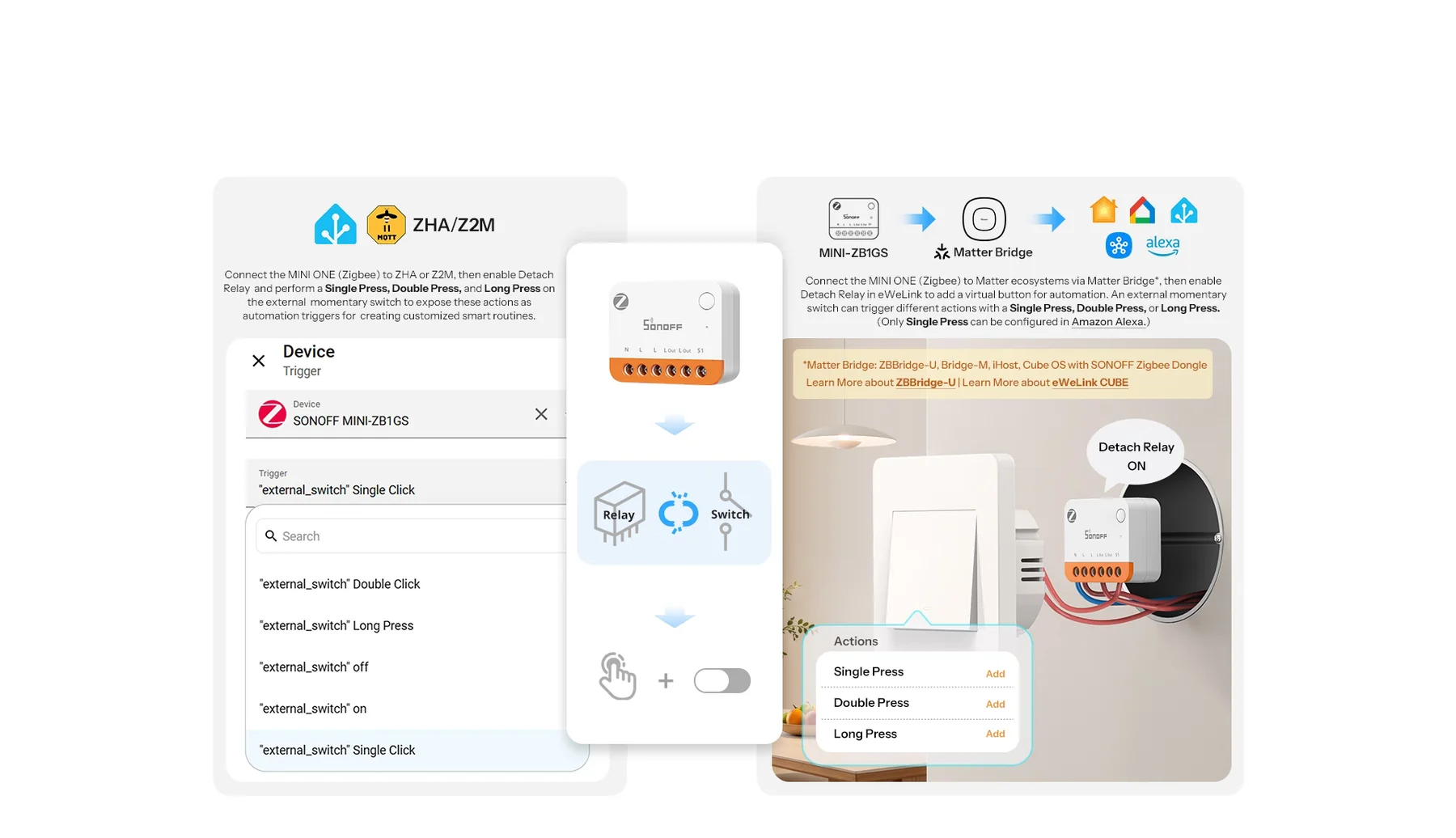

One Switch, Multiple Actions
Detach Relay unlocks more possibilities for your smart home.

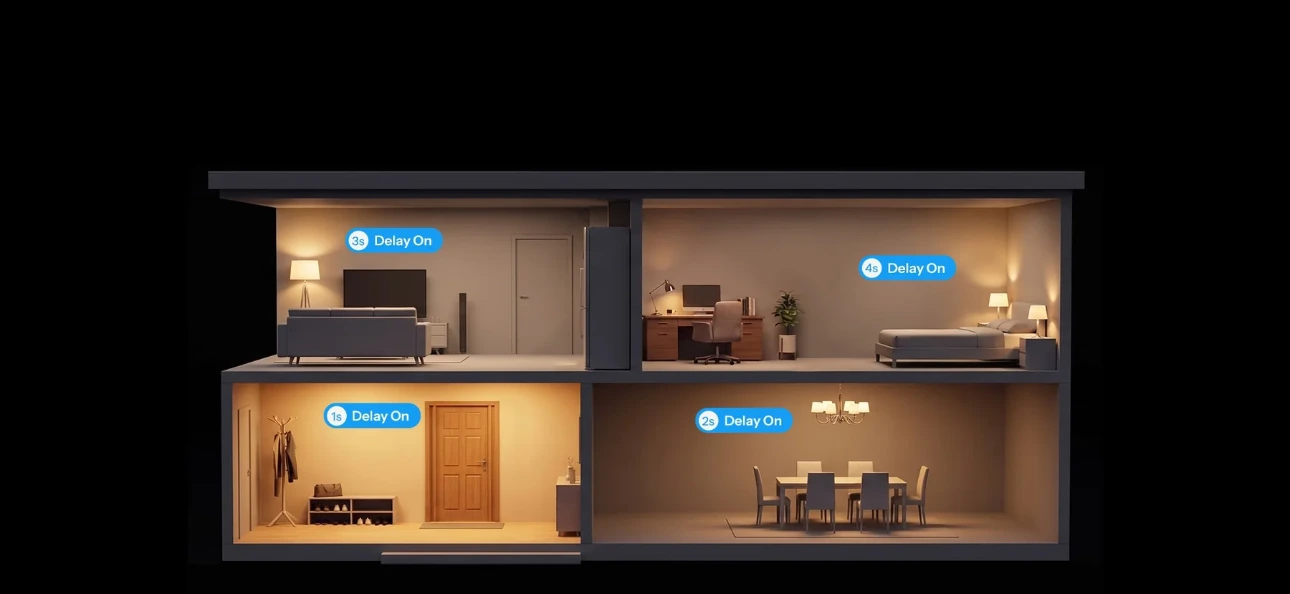

Delay Power-on for Load Protection
Worried about damage from sudden power restoration after an outage? Delay power-on is your solution,
preventing harm from high currents when multiple loads turn on simultaneously.
Enjoy Smart and Convenient Life

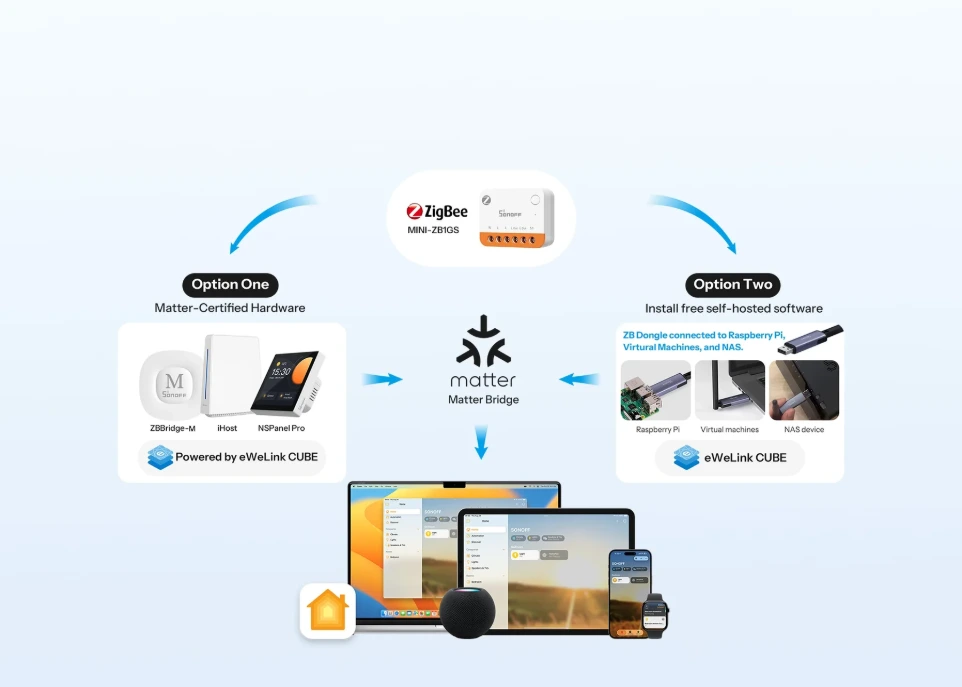

Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF Zigbee devices into your Apple ecosystem via Matter Bridge, enabling seamless interconnected device control.
Learn More about ZBBridge-M | Learn More about eWeLink CUBE
Easily Integrates with Open-Source Platforms
Integrate MINI ONE (Zigbee) into Home Assistant open-source platform with SONOFF Dongle Series.

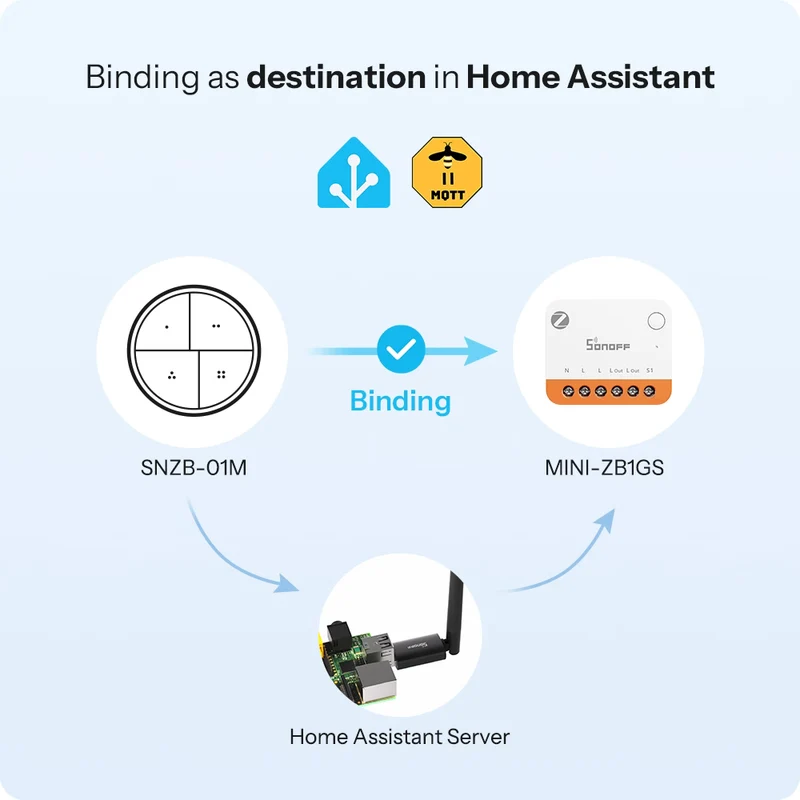

Zigbee Binding Enables Direct, Reliable Control
After a one-time setup in Home Assistant, your SNZB-01M button communicates directly with the MINI-ZB1GS—no gateway required.

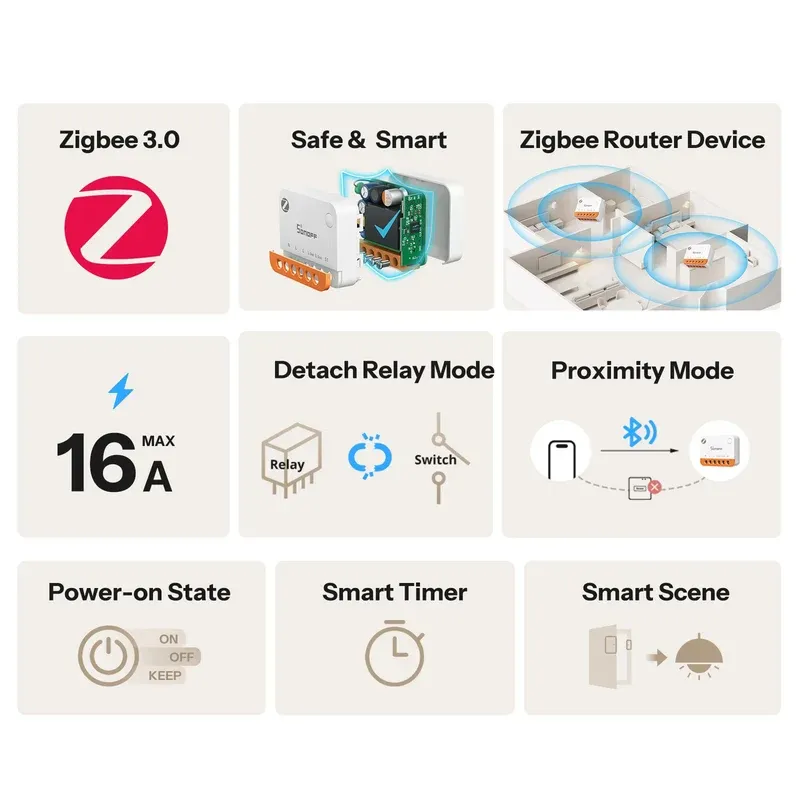

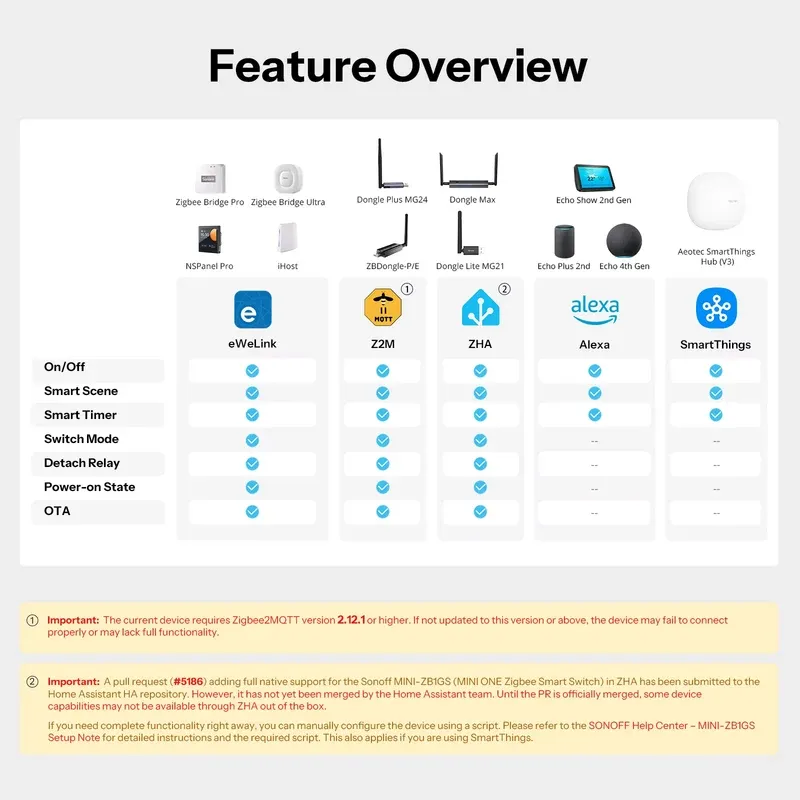

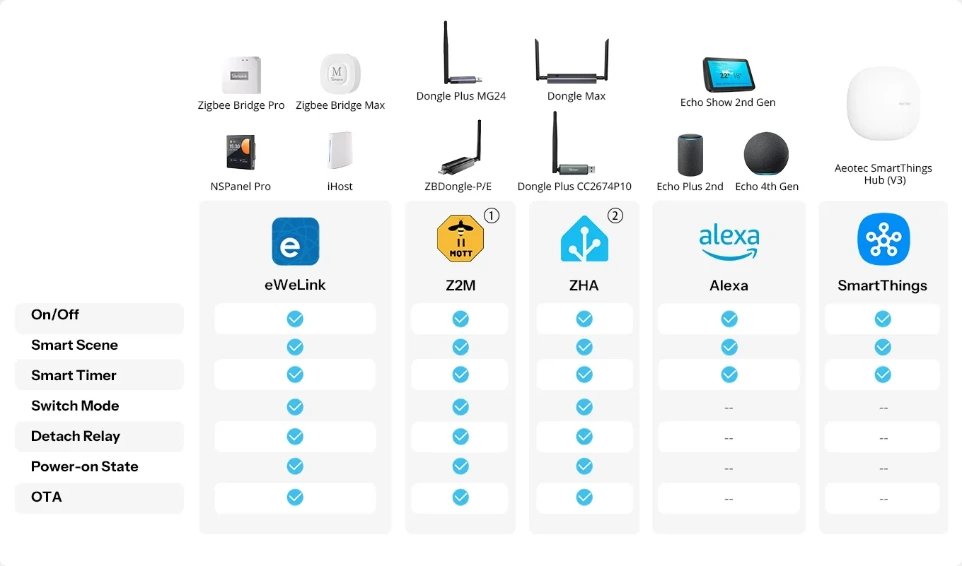

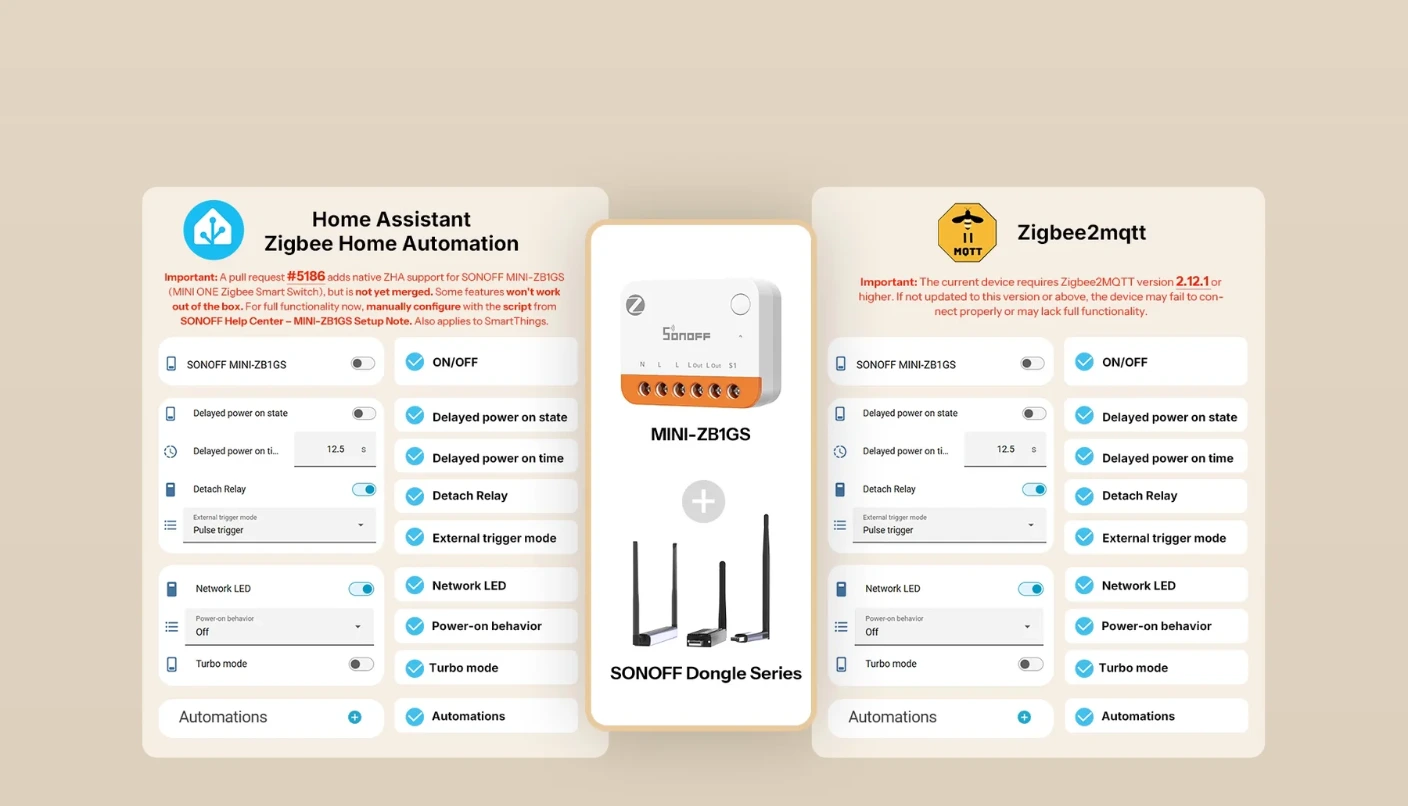

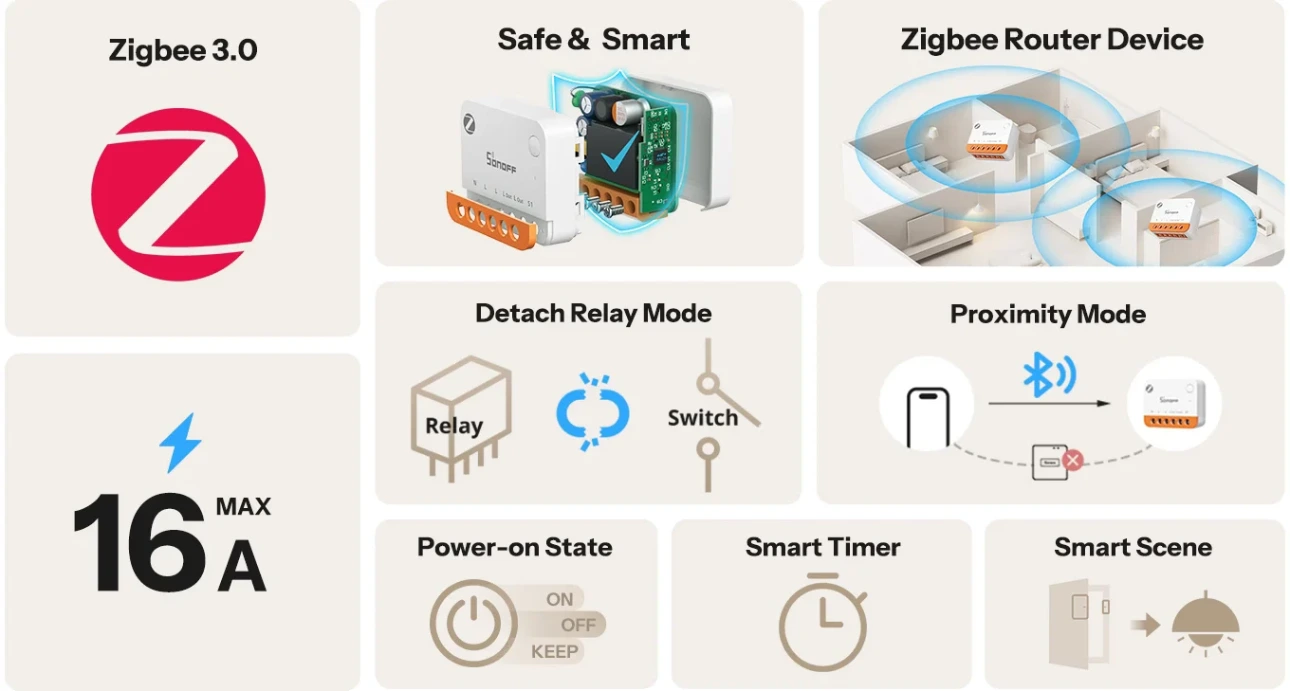

Feature Overview
① Important: The current device requires Zigbee2MQTT version 2.12.1 or higher. If not updated to this version or above, the device may fail to connect
properly or may lack full functionality.
② Important: Important: A pull request (#5186) adding full native support for the Sonoff MINI-ZB1GS (MINI ONE Zigbee Smart Switch) in ZHA has been submitted to the Home Assistant HA repository. However, it has not yet been merged by the Home Assistant team. Until the PR is officially merged, some device capabilities may not be available through ZHA out of the box.
If you need complete functionality right away, you can manually configure the device using a script. Please refer to the SONOFF Help Center – MINI-ZB1GS Setup Note for detailed instructions and the required script. This also applies if you are using SmartThings.

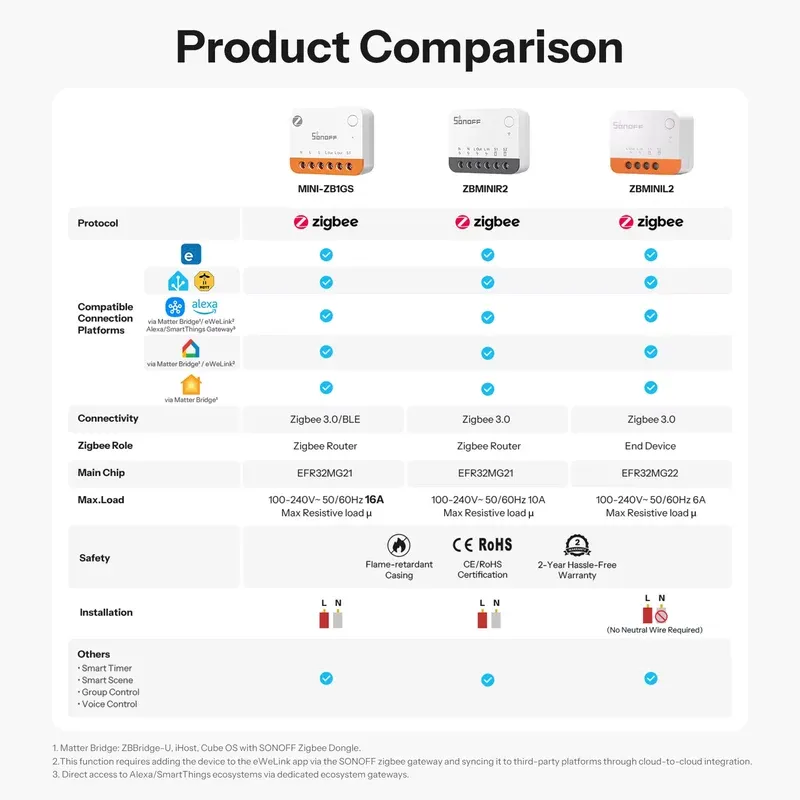

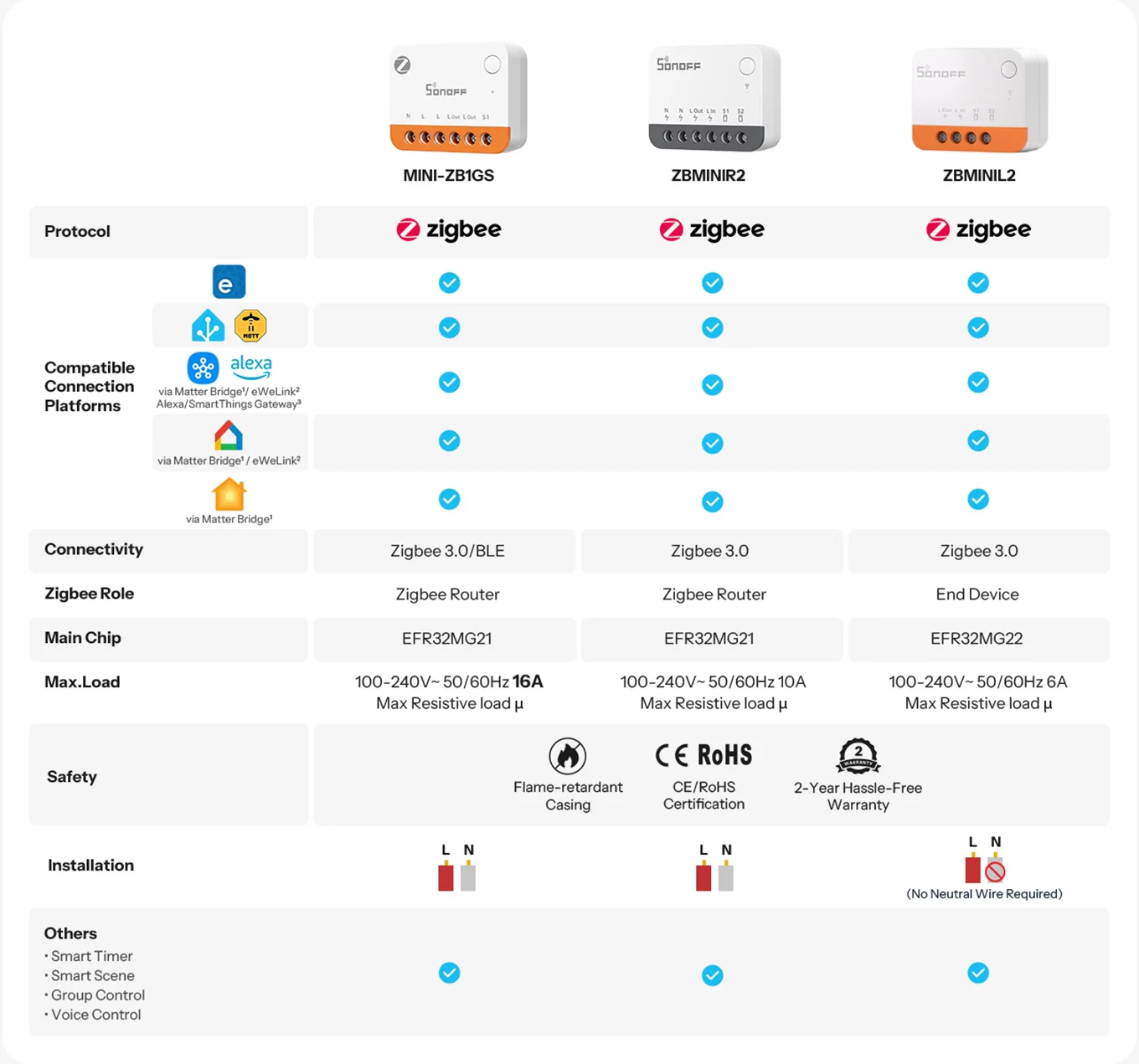

Product Comparison
- Matter Bridge: Bridge-M, ZBBridge-U, iHost, Cube OS with SONOFF Zigbee Dongle
- This function requires adding the device to the eWeLink app via the SONOFF zigbee gateway and syncing it to third-party platforms through cloud-to-cloud integration.
- Direct access to Alexa/SmartThings ecosystems via dedicated ecosystem gateways.
Wiring Instructions
*The two Lout terminals are parallel. If you connect a load to each of them, both loads will be switched on and off simultaneously.

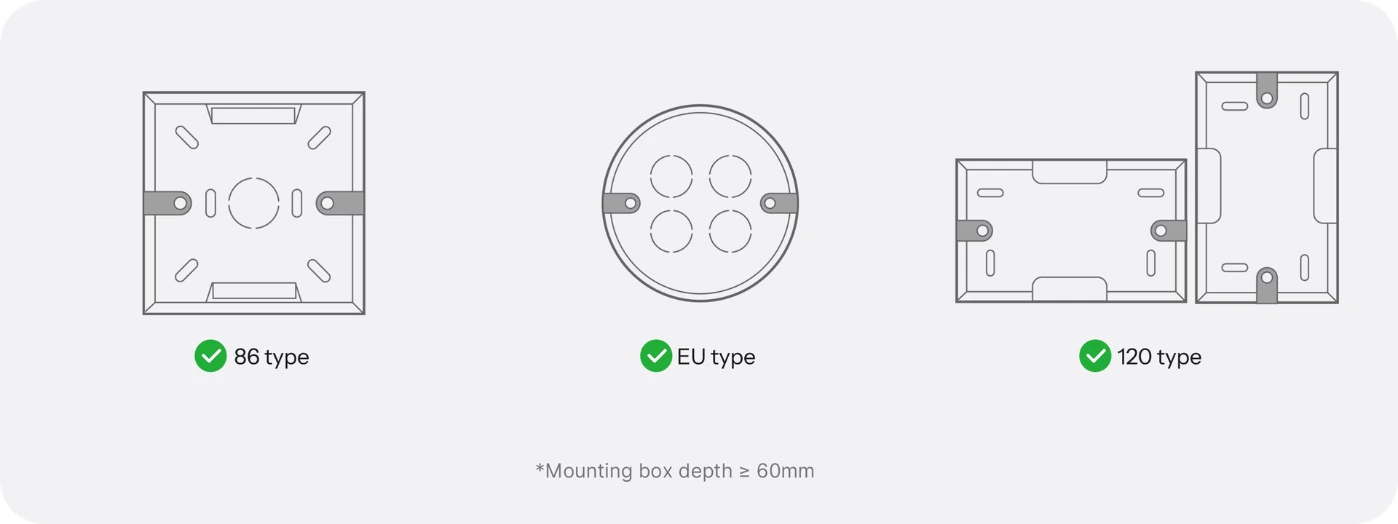

Compatible Mounting Box Sizes
4 Steps to Use

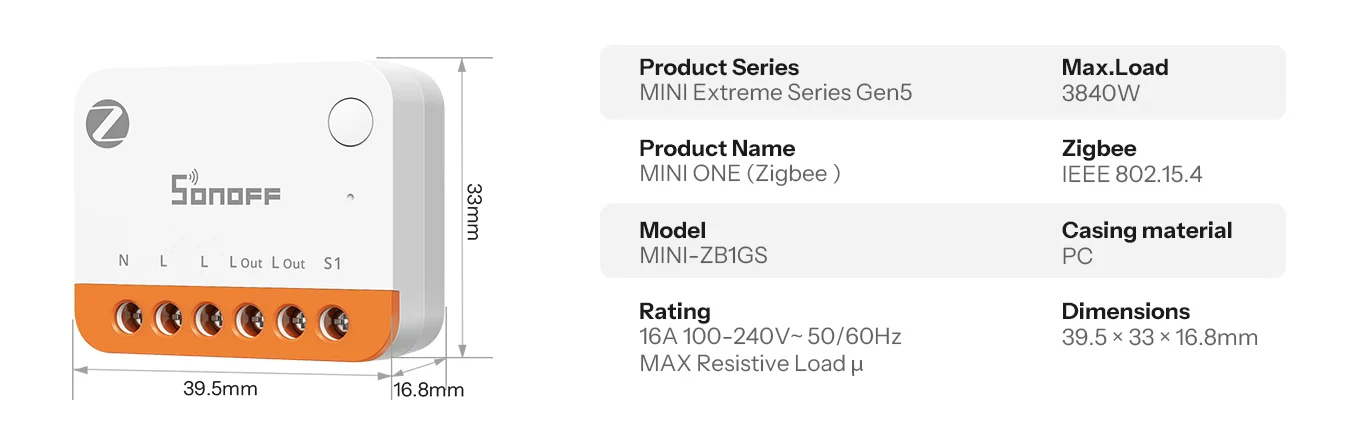

Specification
Specs & User Manual
MINI-ZB1GS is a Zigbee smart switch designed for safer, more flexible, and reliable control. Supporting up to 16A loads, it offers wider device compatibility than the ZBMINIR2. Built-in temperature sensing provides smart overheating protection, while its compact design fits standard EU, 86-type, and 120-type wall boxes without modifications. With Zigbee Binding, it enables direct local control with Zigbee devices. Connect it to Home Assistant and other platforms through a Zigbee dongle or gateway for local automation, and use it as a Zigbee router to extend your network.
| Product Series | MINI Extreme Series Gen5 |
| Product Name | MINI ONE (Zigbee) |
| Product Model | MINI-ZB1GS |
| Product Type | Zigbee Smart Switch |
| Rating | 16A, 100–240V~ 50/60Hz, Max Resistive Load |
| Max. Load | 16A / 3840W |
| Wireless Connectivity | Zigbee 3.0 |
| Zigbee | IEEE 802.15.4 |
| Net Weight | 27.3 g |
| Product Dimension | 39.5 × 33 × 16.8 mm |
| Casing Material | PC |
| Recommended Wire Diameter | 18 AWG to 14 AWG (0.75 mm² to 2.5 mm²), SOL copper conductor only |
| Applicable Place | Indoor |
| Working Temperature | -10℃ ~ 40℃ |
| Working Humidity | 10% ~ 90% RH, non-condensing |
| Certification | CE / RoHS / FCC |
FAQ
Yes. MINI-ZB1GS requires a neutral wire for installation. Please make sure your switch box has both live and neutral wires available.
MINI-ZB1GS functions as a Zigbee signal repeater, extending the range and improving the stability of your Zigbee network when powered on and connected.
