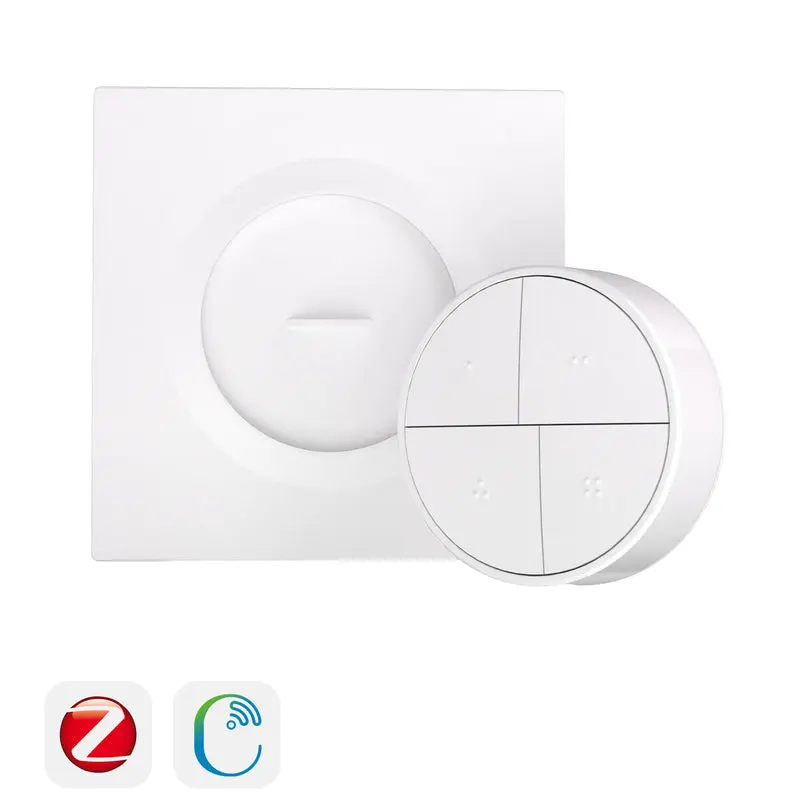

SONOFF Orb 4-In-1 Zigbee Smart Scene Button | SNZB-01M

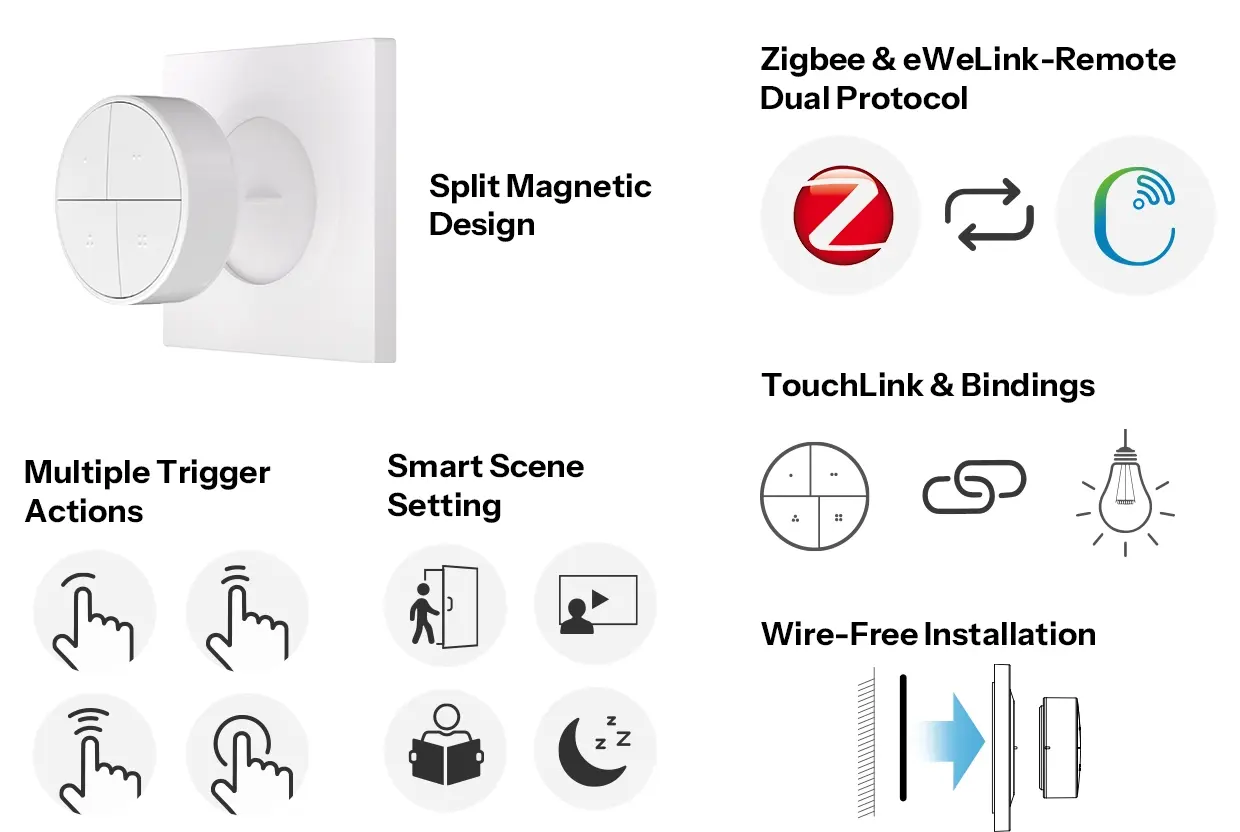

【One-Touch Scene Trigger】With 4 buttons like single, double, triple, and long-press actions, configure up to 16 smart scenes—such as Movie Night, Sleep, or Away Mode for instant activation.
【Dual-Protocol Switchable】Seamlessly switch between Zigbee and eWeLink-Remote modes, enabling both automated scenarios and stable local control for flexible integration into various smart ecosystems.

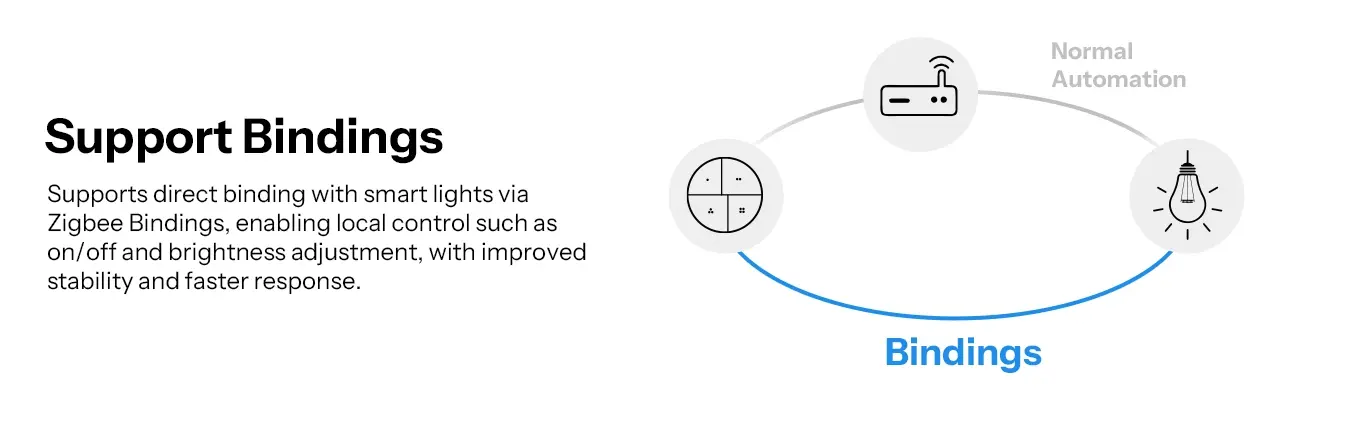

【Faster & Reliable Local Control】Supports TouchLink and Home Assistant Bindings for direct device-to-device control, ensuring quicker and stable responses.
【Wire-Free Installation】Featuring magnetic, adhesive, and screw mounting options, it installs effortlessly on walls, metal surfaces, or desks without wiring, perfect for any living situation.
【Fusion Series Style】Finished in pure white with a square base, its understated and versatile look blends naturally into any home décor.
| Brand: Sonoff |
⭐ 100% Original Products 🛡️ 12-Month Warranty
✔️ 100% Buyer Protection 🌍 Worldwide Reach
Free speedy delivery PORTER Courier On-Call
Versatile 4-Button
Wireless Control

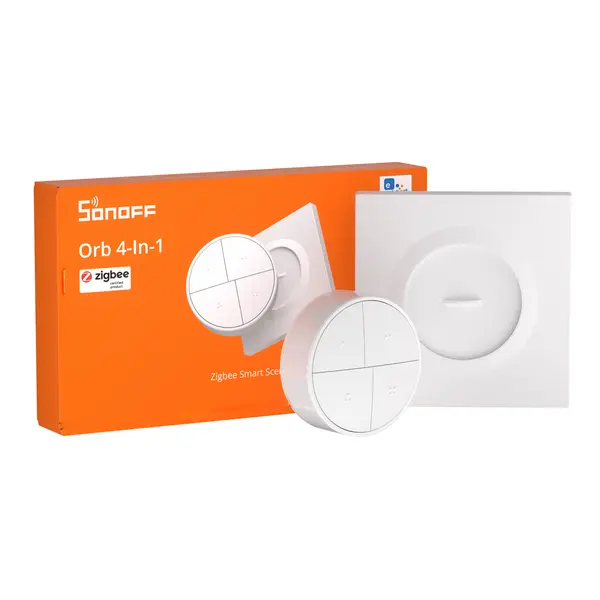

Orb 4-In-1 Zigbee Smart Scene Button
*Required Zigbee gateway or eWeLink-Remote gateway.

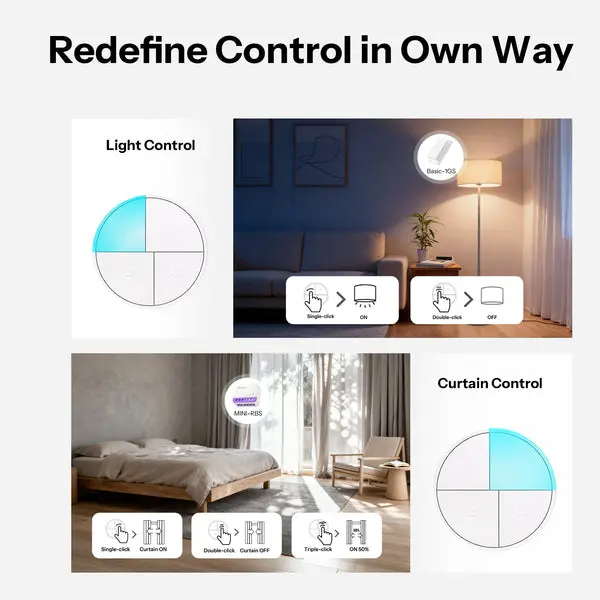

Redefine Control in Own Way

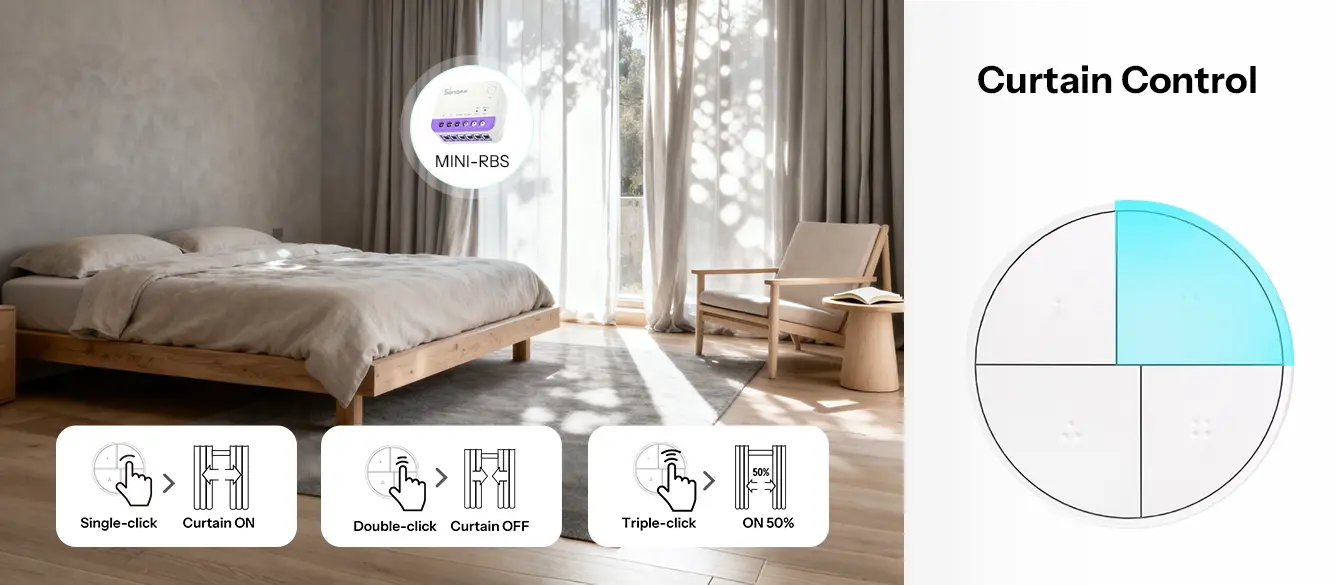

The Orb 4-In-1 features four buttons, each supporting four actions, for up to 16 smart triggers. Create personalized scenes for different devices and enjoy effortless smart control.
Wi-Fi Connection
Use as a Wi-Fi Dongle, giving you flexible placement anywhere in your home, with just a power cable.

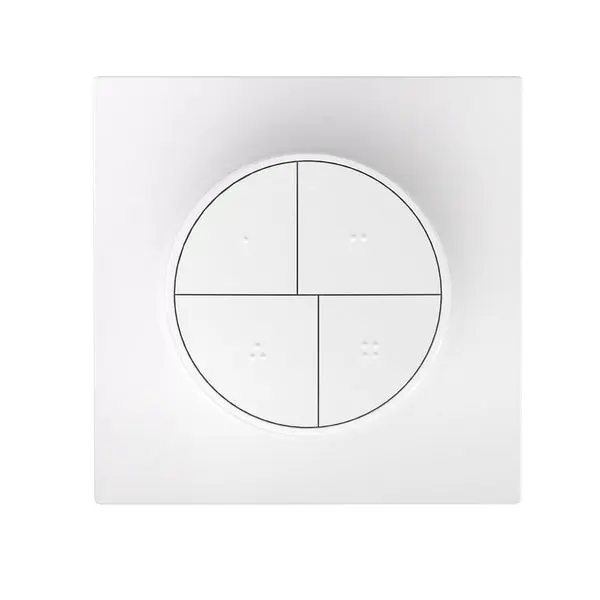

Square Meets Round Aesthetic

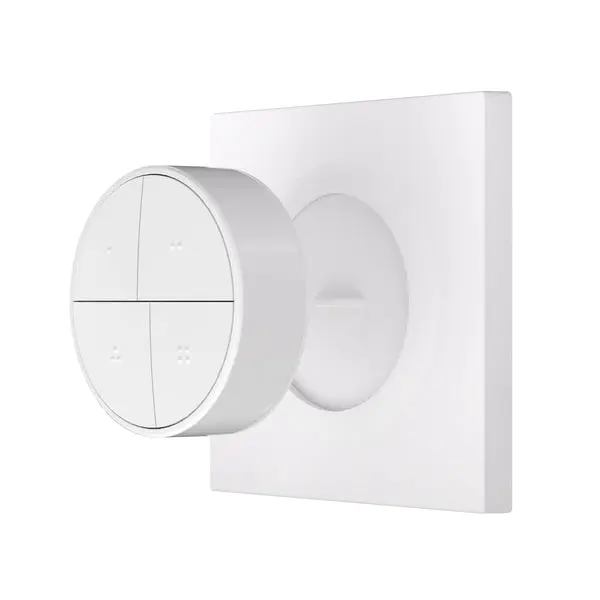

Designed with geometric aesthetics, the round button can be paired with the included square base. Use it as a portable control or mount it on the wall — the choice is yours.

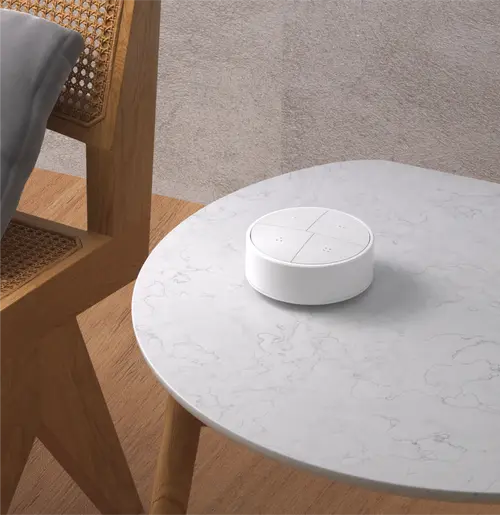

Pick up and place anywhere

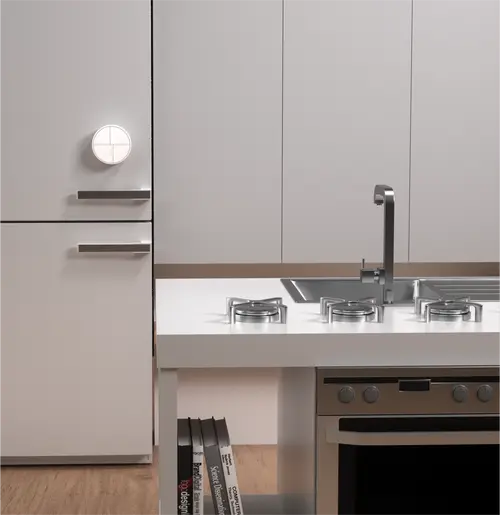

Magnetic attachment with base

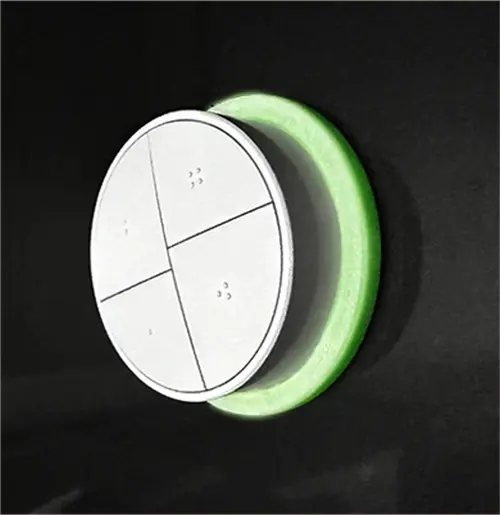

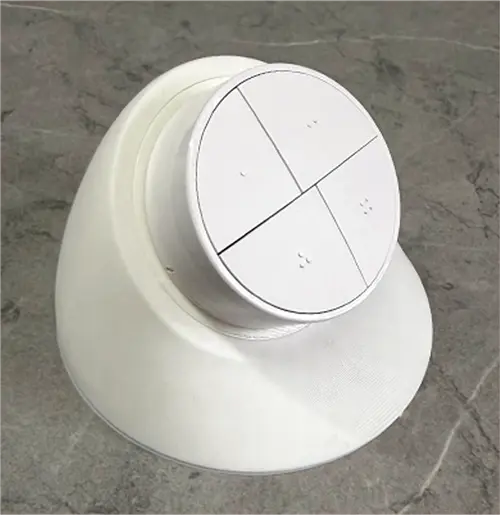

Use with 3D printed part
Fits into Your Smart Life

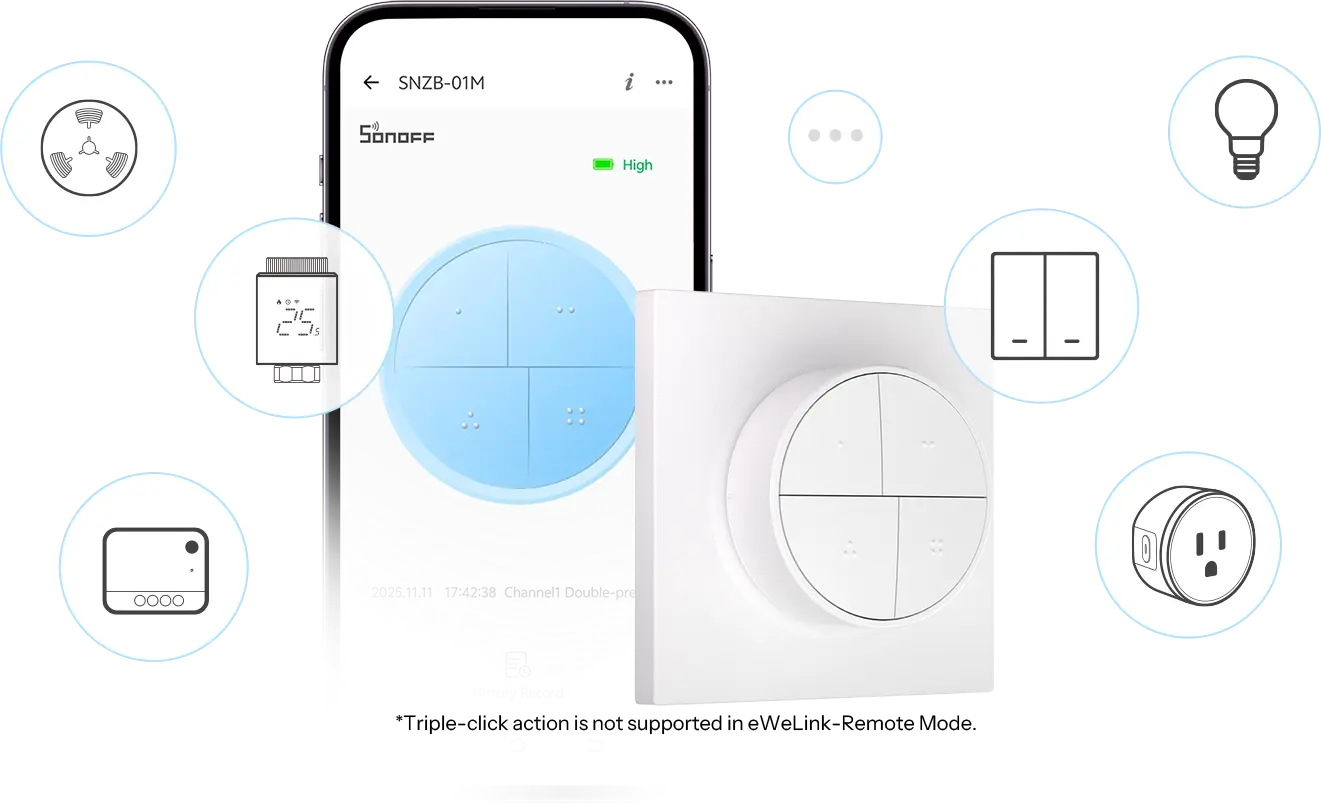

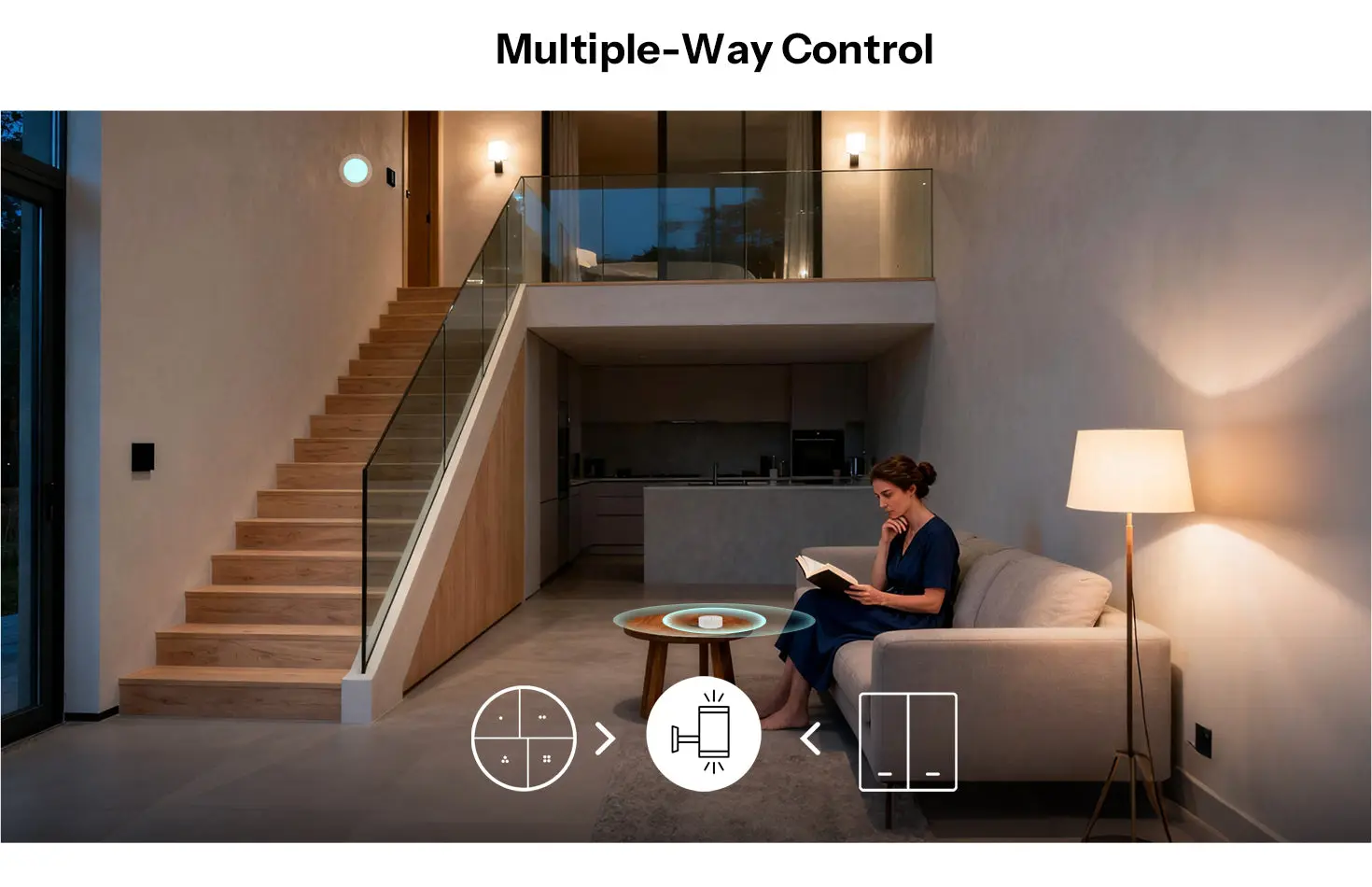

Achieve rich and convenient one-tap control through more flexible smart scene settings.

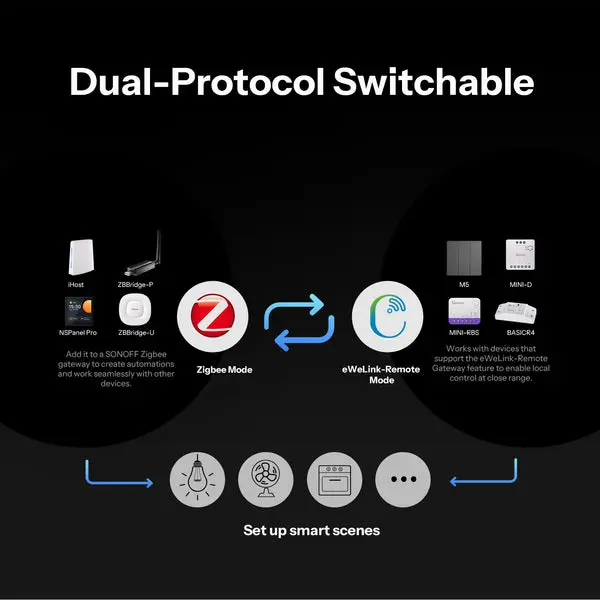

Dual-Protocol Switchable
Orb 4-In-1 supports switching to Zigbee mode or eWeLink-Remote mode, allowing easy integration
with your existing smart home solution and quick setup as a scene controller.

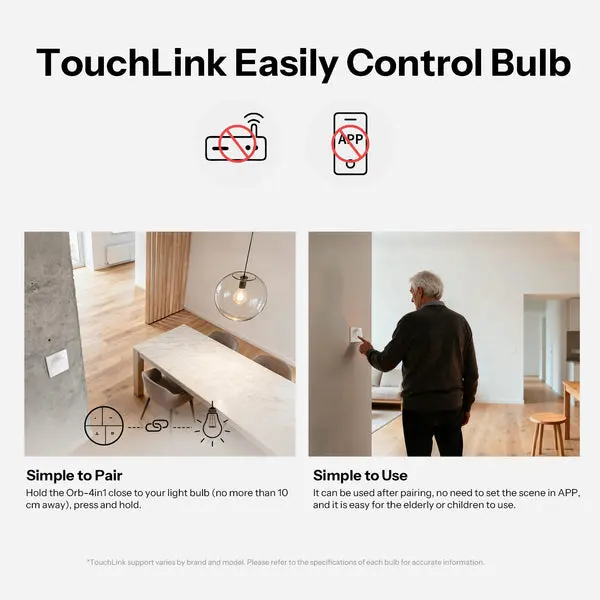

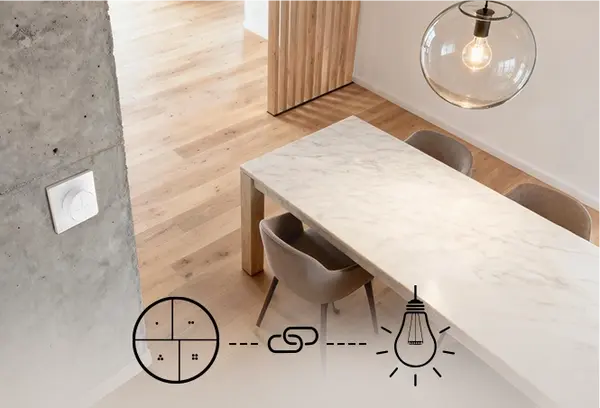

TouchLink Easily Control Bulb
TouchLink simplifies the device pairing process, allowing direct connection and control with smart bulbs that support the TouchLink.
*TouchLink support varies by brand and model. Please refer to the specifications of each bulb for accurate information.

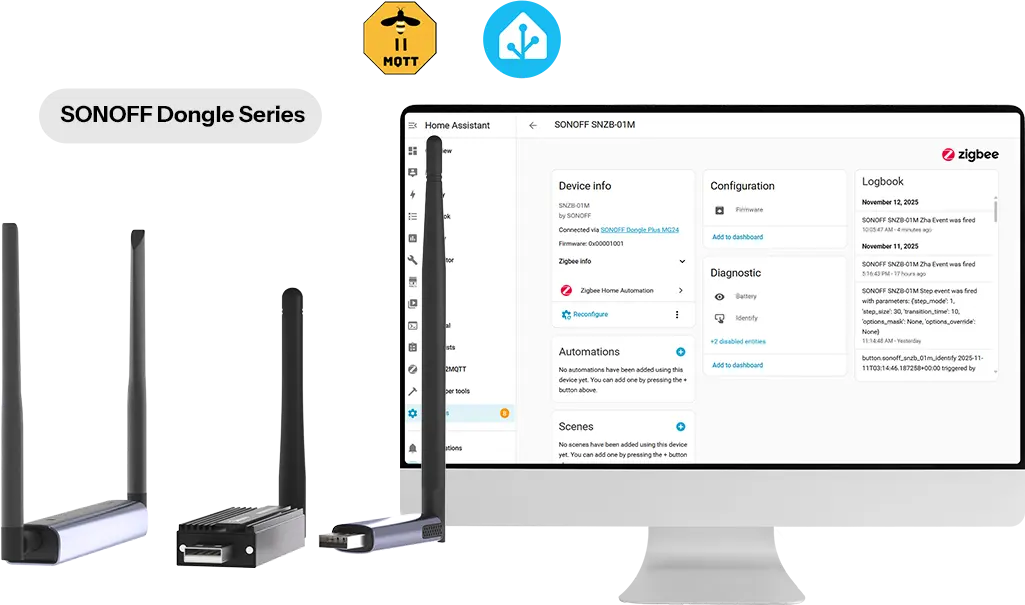

Well Compatible with Open-Source Platforms
Supports integration with Home Assistant, Zigbee2MQTT, and other open-source platforms through the SONOFF Dongle series, enabling it to function as a smart trigger within those ecosystems.
*Currently, using the Orb 4-In-1 with ZHA requires the script. For detailed instructions, please refer to: https://help.sonoff.tech/docs/Orb_4-In-1

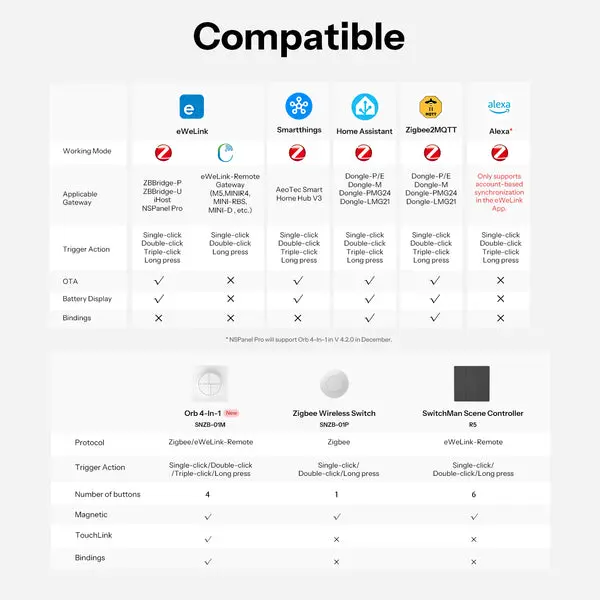

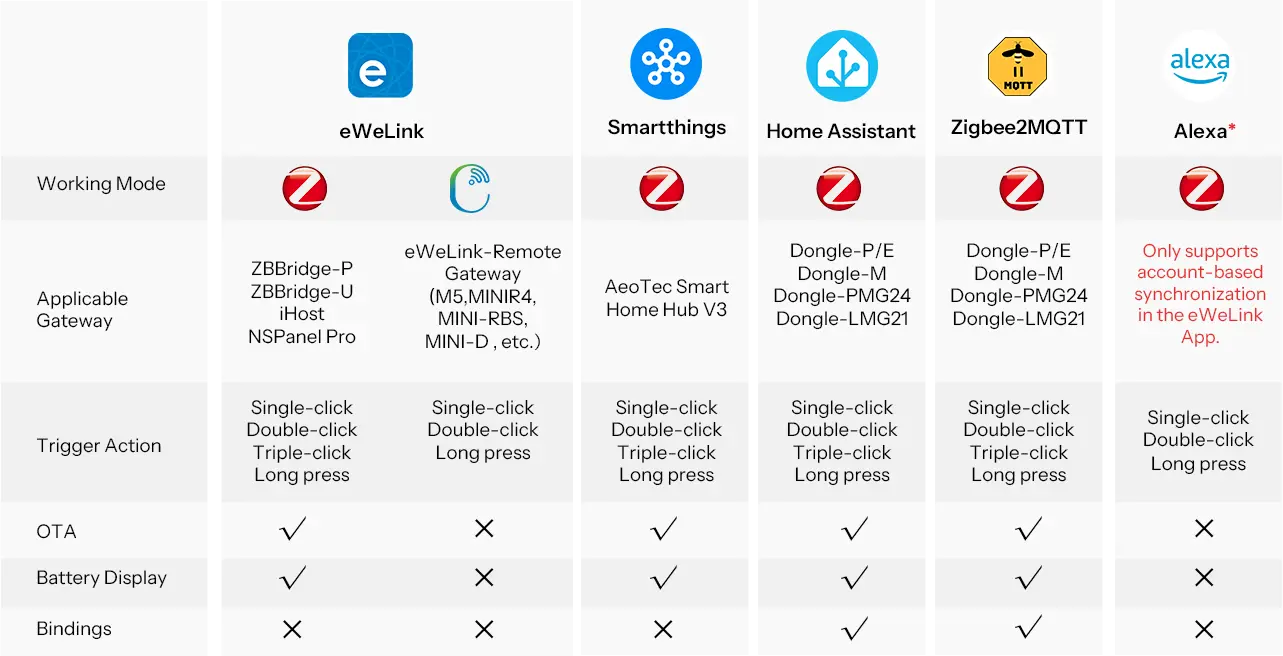

Compatible
* NSPanel Pro will support Orb 4-In-1 in V 4.2.0 in December.
Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF zigbee devices into your Apple ecosystem via Matter Bridge, enabling seamless interconnected device control.

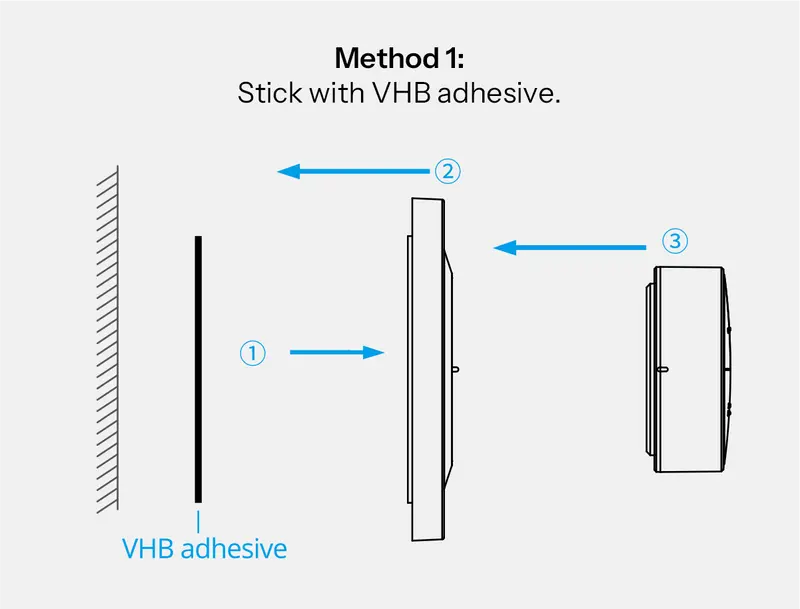

Easy Installation of Base
Specs & Quick Guide
Orb 4-In-1 is a versatile 4-button scene switch designed to centralize your smart home control. It supporting both Zigbee and eWeLink-Remote modes, offering both automation and reliable local control. Configure up to 16 customizable scenes—like "Movie Night" or "Good Sleep"—and activate them instantly with single click, double click, triple click, or ong-press actions. Installation is a breeze with magnetic, adhesive, and screw-free mounting options for any surface. With versatile pairing via Zigbee gateways, eWeLink-Remote gateways, TouchLink, and open-platform Binding, it integrates seamlessly into your existing ecosystem. Its minimalist pure white design complements any home decor beautifully.
ks, eWeLink-Remote Gateways, MQTT, and VPN.

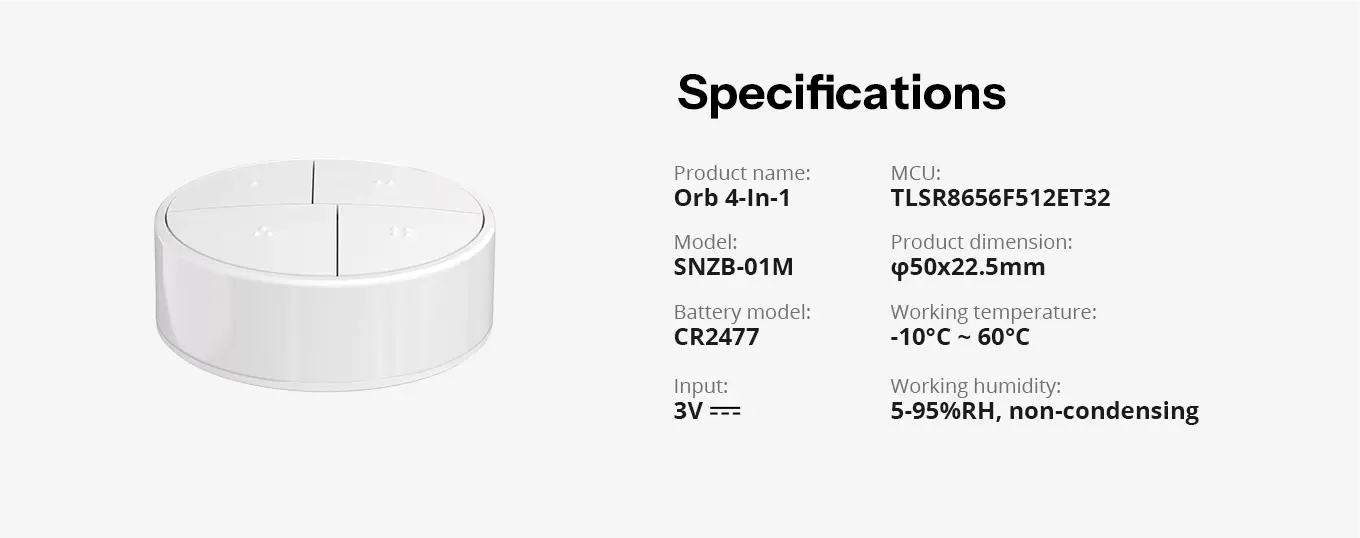

Product Information
| Product Name | Orb 4-In-1
|
Product series
|
Fusion series
|
|
Product type
| Zigbee & eWeLink Remote Control Smart Scene Button
|
|
Intput
| 3V
|
Model
| SNZB-01M |
MCU
|
TLSR8656F512ET32
|
| Battery model | CR2477
|
Wireless connectivity
| Zigbee (IEEE 802.15.4) |
Net weight | 53g (including battery) |
Color | White |
Product dimension
| φ50x22.5mm |
Casing material | PC |
Working temperature
| -10°C ~ 60°C
|
Working humidity
| 5-95%RH
|
Certification | CE/FCC/RoHS |
FAQ
Orb 4-In-1 is upgraded in communication range, pairing experience, and scene expandability:
- Higher wireless transmission power, with a communication range of up to 130m in open areas.
- New pairing options: TouchLink quick pairing and eWeLink-Remote Mode, plus auto-reconnect, making pairing more flexible with no need for manual re-pairing after disconnection.
- Supports up to 16 customizable scenes (note: Samsung SmartThings Hub V3 supports only 12 scenes due to compatibility limits).
If the device can be set as an “action device” in the app’s scene (meaning it can be triggered by a scene), then Orb 4-In-1 can indirectly control it via scene functionality. No extra adaptation is required. .
Orb 4-In-1 uses a CR2477 battery. Under lab conditions (room temperature, 50 presses per day), the battery lasts at least 4 years in Zigbee mode, 2 years in eWeLink-Remote mode.
TouchLink is mainly used for controlling lights. You’ll need Zigbee lighting devices that support TouchLink, such as Philips Hue or IKEA bulbs. In some cases, it can also control smart switches and other devices supporting the TouchLink protocol .
No. Scenes are only deleted if you:
- Press and hold the Reset button on the device for 5 seconds (factory reset).
- Remove the device from the eWeLink app.
