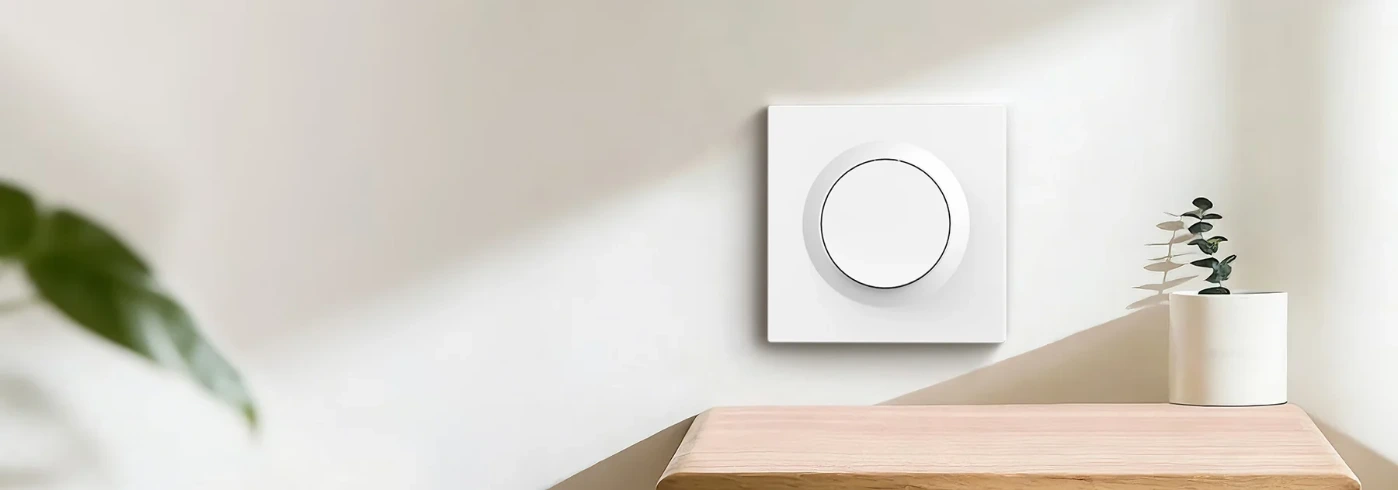

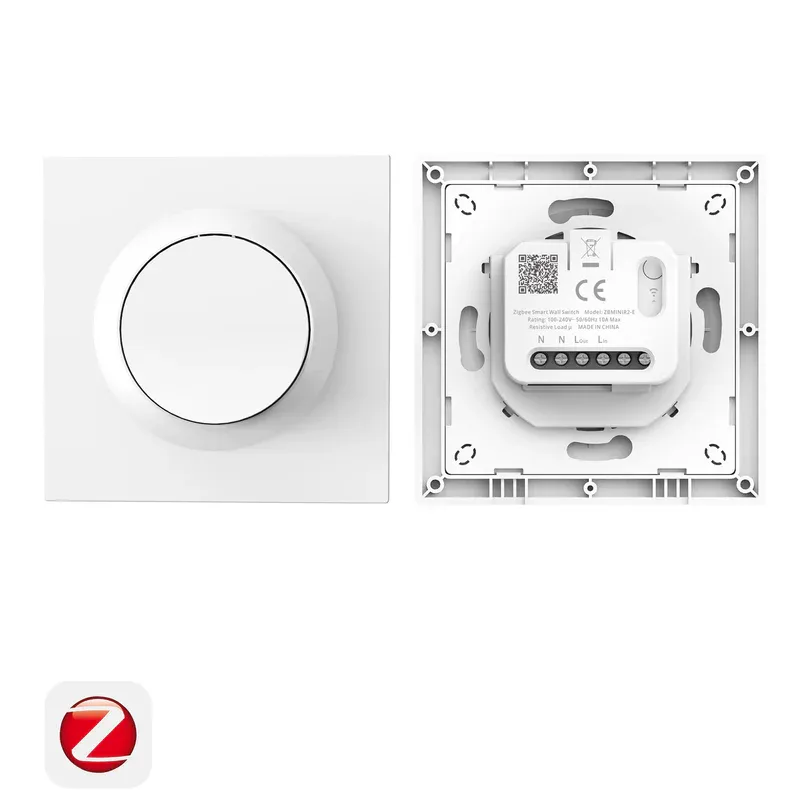

1-Gang Wall Switch — Orb-ZBW1
Compact Design,
Fits More Installation Spaces!
*Require a Zigbee Hub

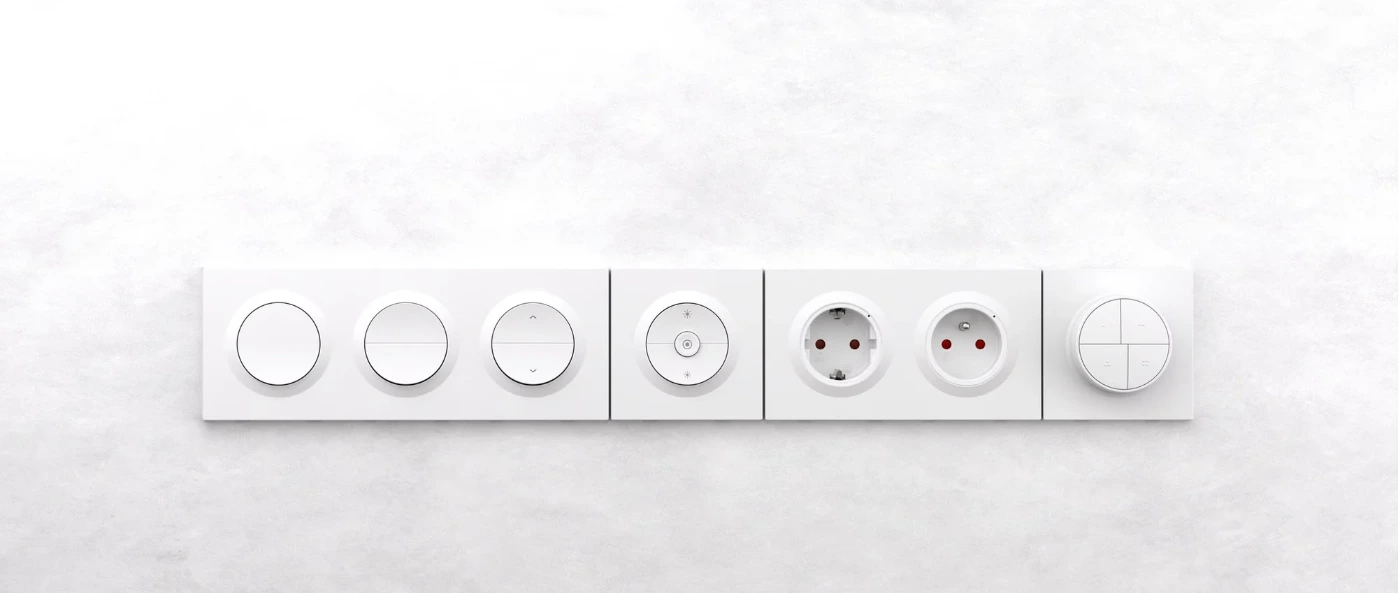

Fusion Series Overview
Matter or Zigbee? Choose to Fit Your Needs!
*Use with SONOFF Fusion Series Switch Frame (sold separately).

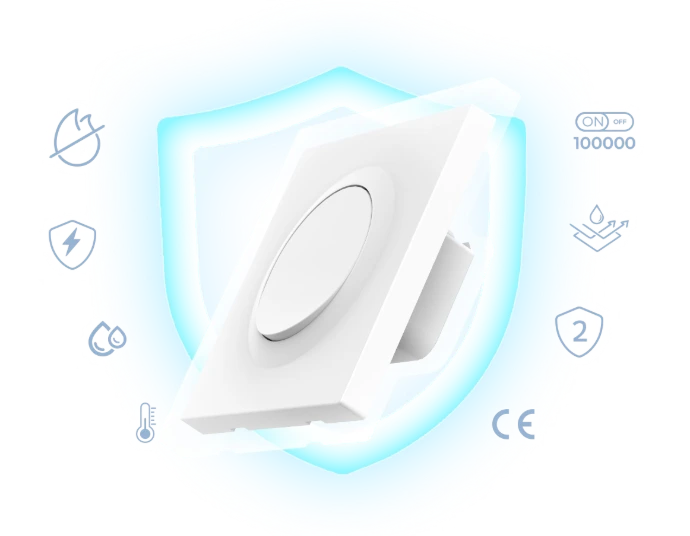

Engineered for Safety and Reliability
Delivering unwavering safety and stability for your smart home.

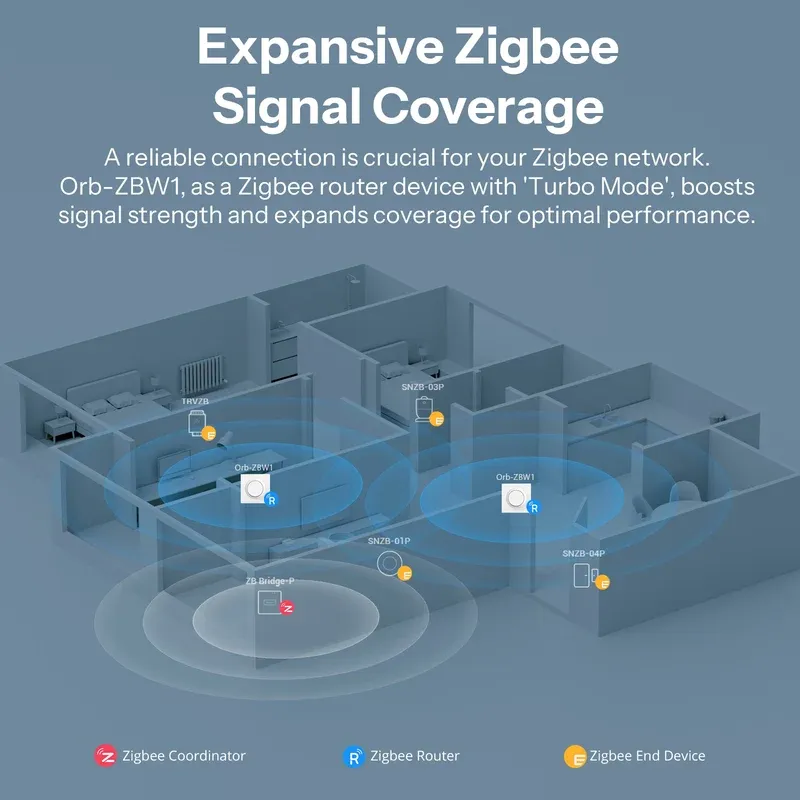

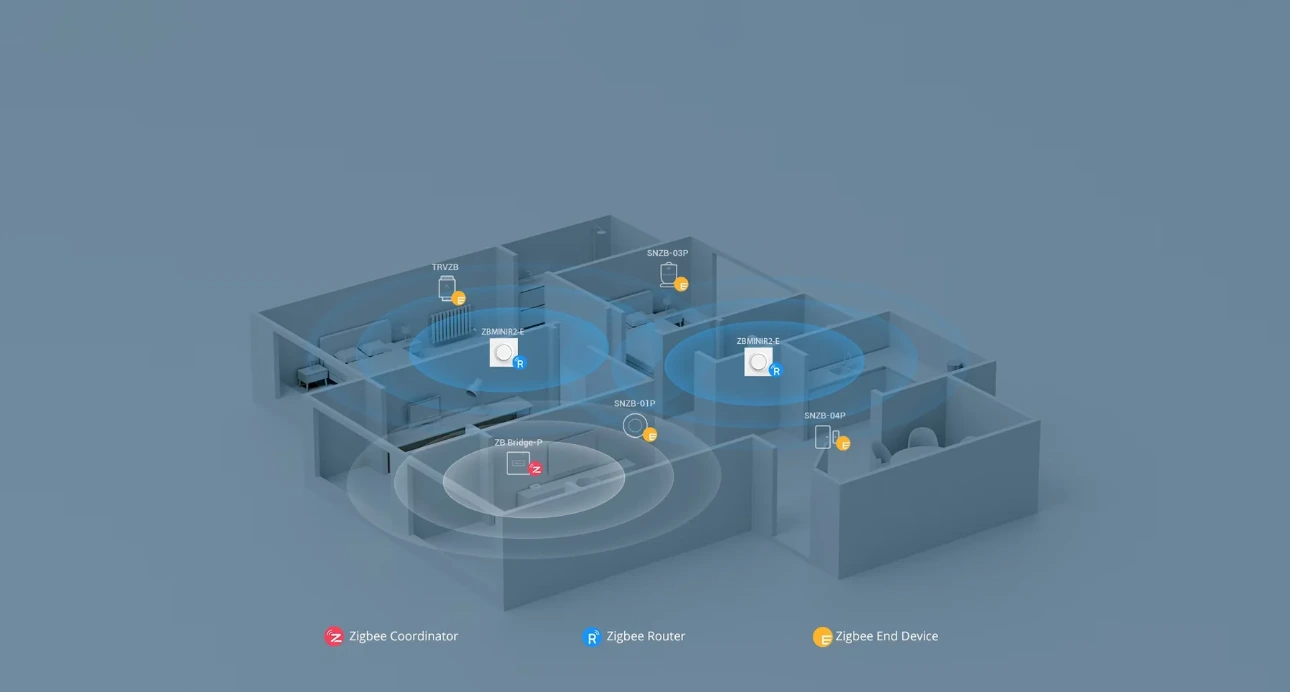

Expansive Zigbee Signal Coverage
A reliable connection is crucial for your Zigbee network. Orb-ZBW1, as a Zigbee router device with 'Turbo Mode',
boosts signal strength and expands coverage for optimal performance.
Expansive Zigbee Signal Coverage
A reliable connection is crucial for your Zigbee network. Orb-ZBW1, as a Zigbee router device with 'Turbo Mode',
boosts signal strength and expands coverage for optimal performance.
Never Worry About Smart Lights Going Offline
With the detach relay enabled, smart lights won't lose power when the wall switch is turned off, allowing them to remain smart at all times.
vation
Hub

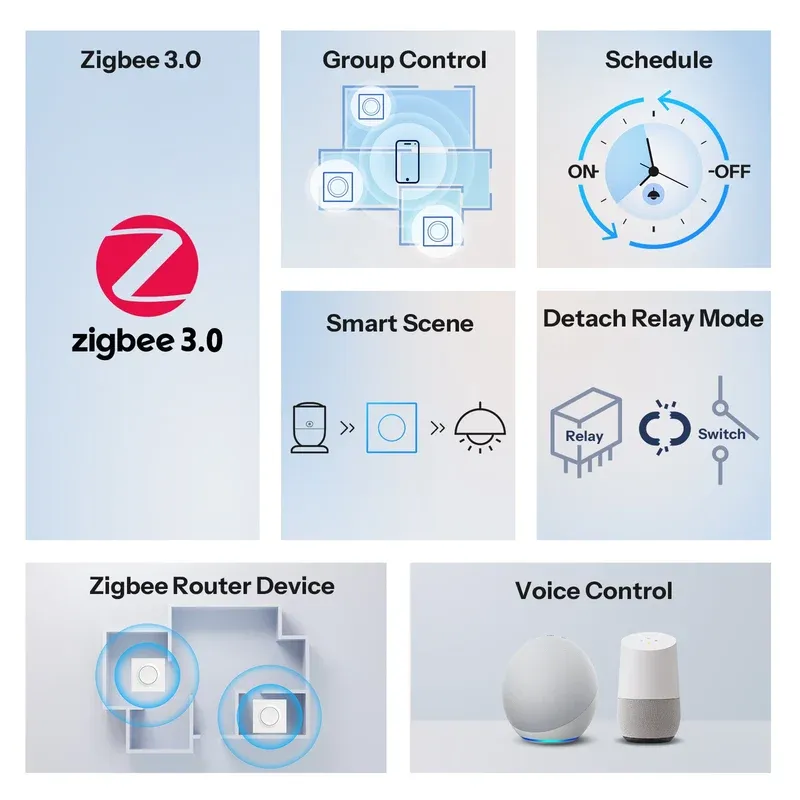

Multiple Possibilities
Turn on/off your appliances automatically.
Free your hands and control devices with one command.
Make your life smarter and simpler
with smart scenes.
.

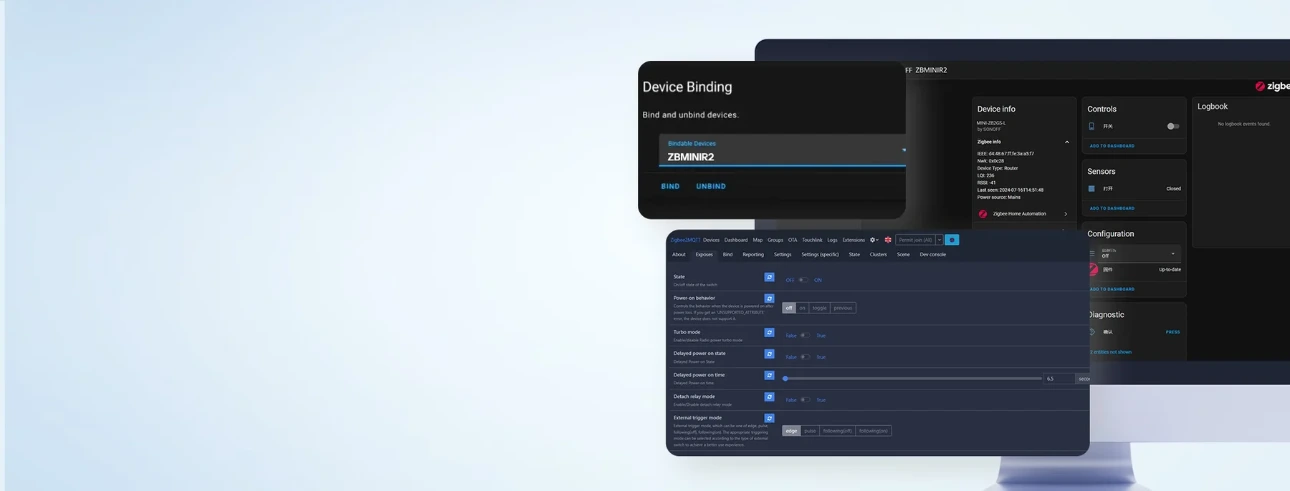

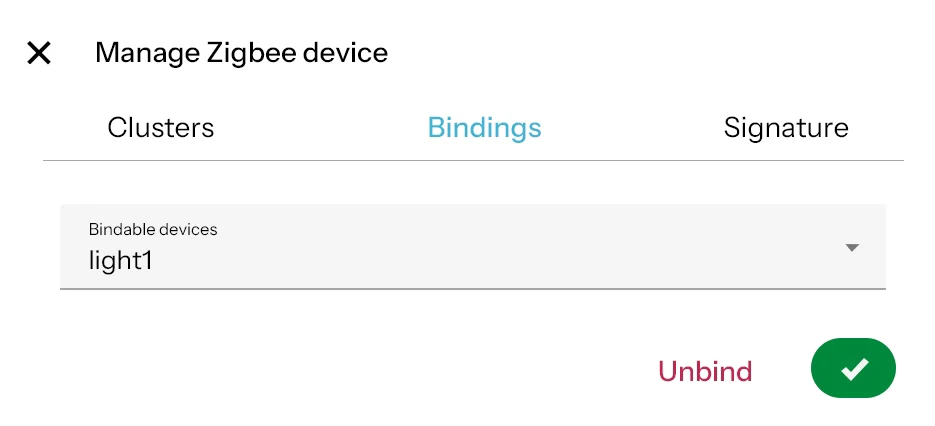

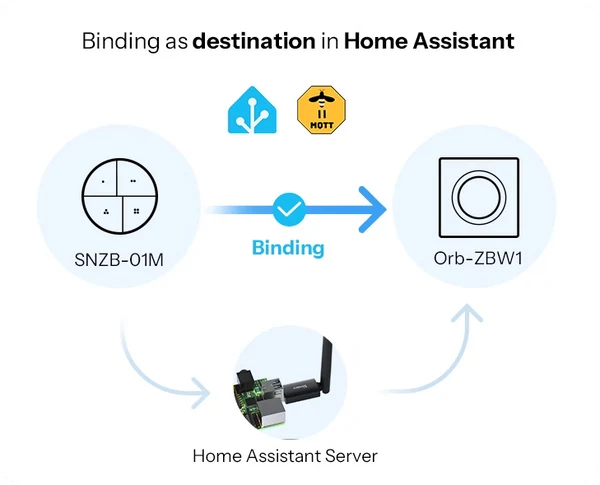

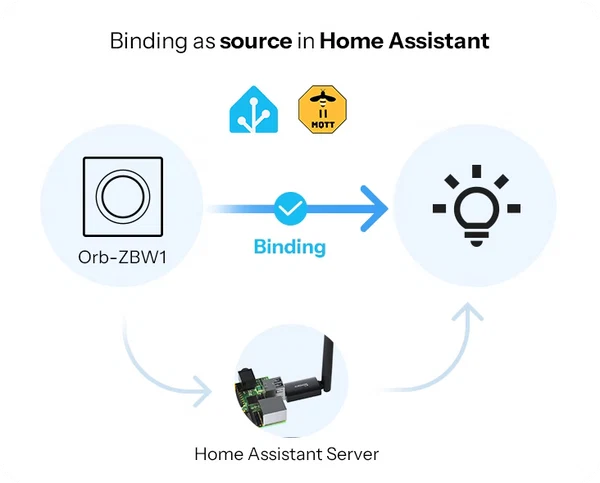

Zigbee Binding Enables Direct, Reliable Control
Set once, control directly. After a one-time setup in Home Assistant, your Orb-ZBW1 will communicate directly with other Zigbee devices, with no gateway required.

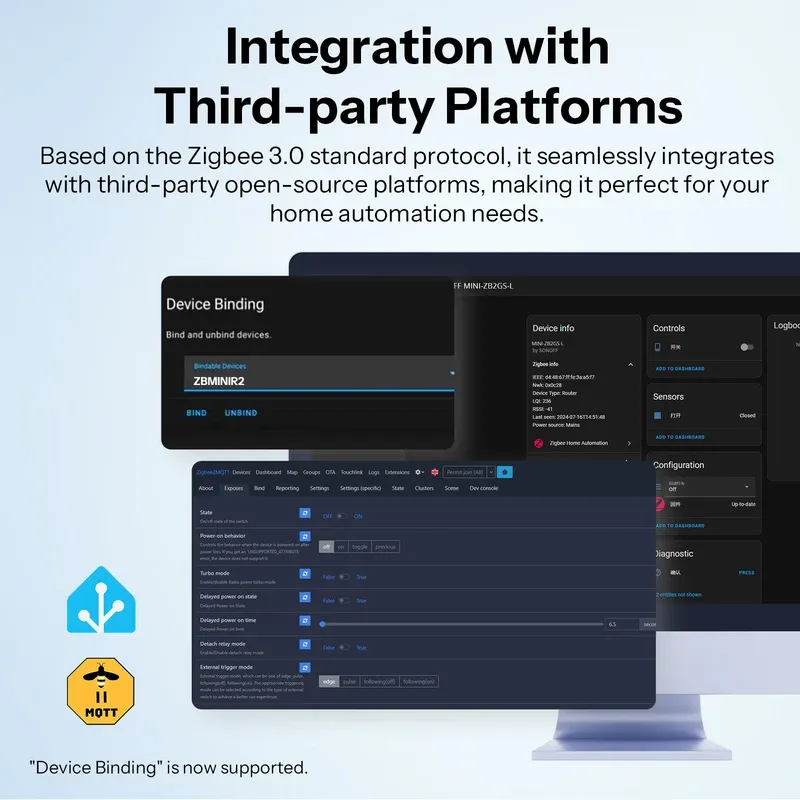

Integration with
Third-party Platforms
Based on the Zigbee 3.0 standard protocol, it seamlessly integrates with third-party open-source platforms, making it perfect for your home automation needs.
"Device Binding" is now supported.
.
.
.

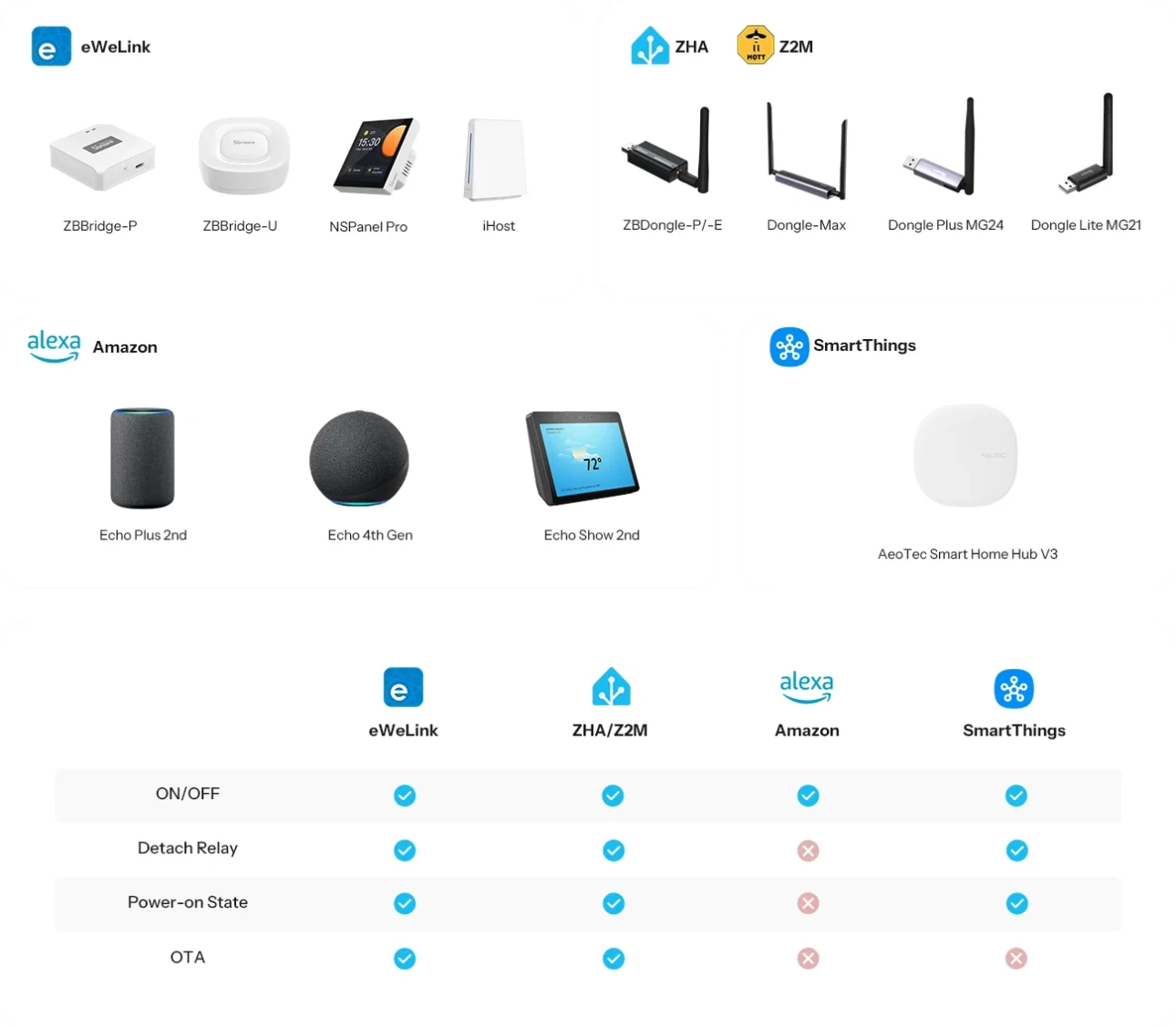

Zigbee Hub Compatibility
.

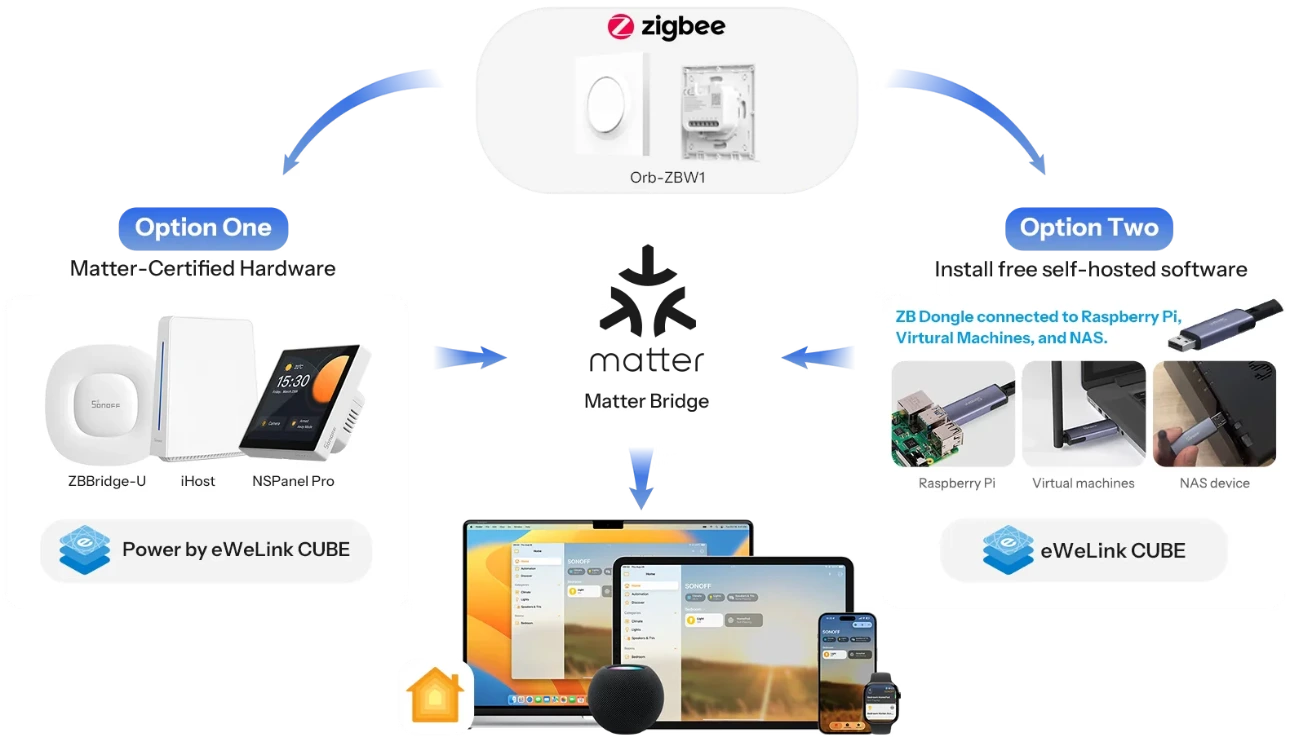

Works with Apple Home Via Matter Bridge
All solutions integrate SONOFF zigbee devices into your Apple ecosystem via Matter Bridge, enabling seamless interconnected device control.
Learn More about ZBBridge-U | Learn More about eWeLink CUBE
.

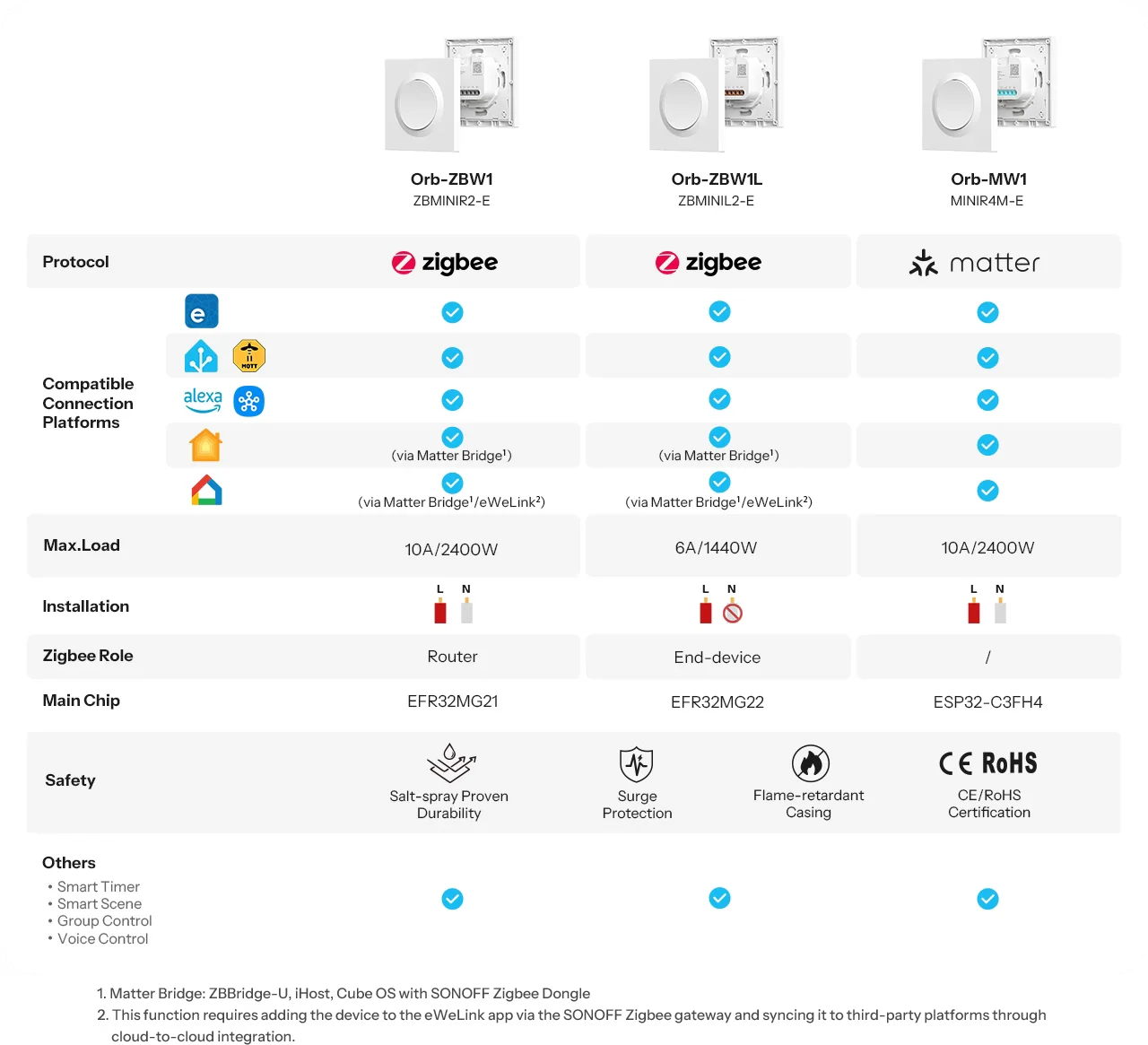

Fusion Series Product Comparison
.

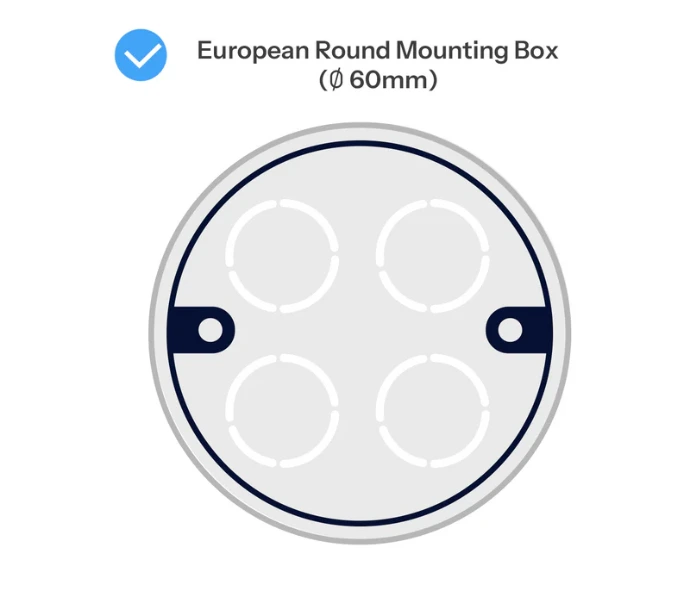

Applicable Mounting Box
.
4 Steps to Use
Easily set up. Download the APP, scan the QR code to connect with the zigbee hub and control!
*Requires the compatible SONOFF Zigbee hub.
.
*Requires the compatible SONOFF Zigbee hub.

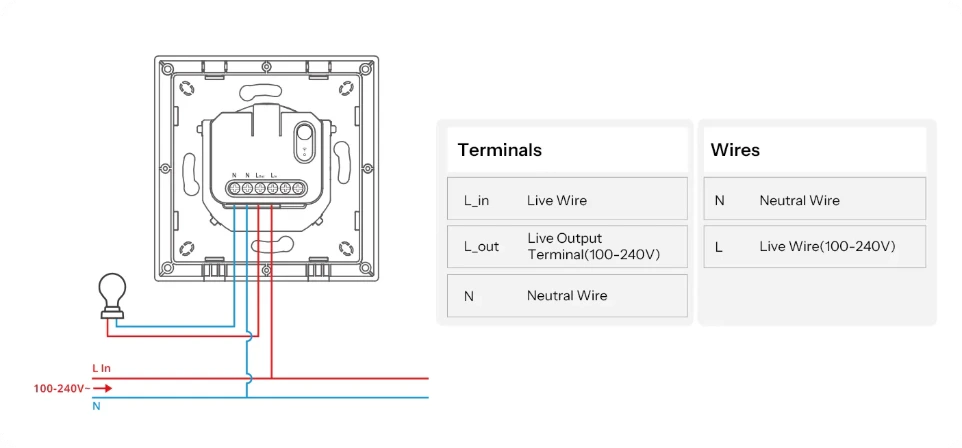

Wiring Instructions

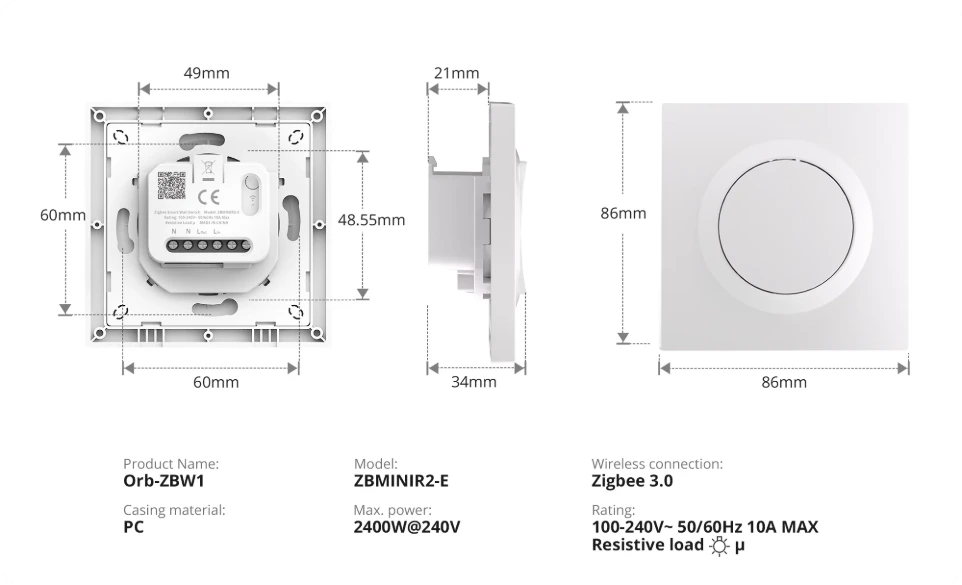

Specification
Specs & User Manual
Orb-ZBW1 is a smart switch built on Zigbee 3.0, compatible with major gateway like Alexa, SmartThings, and Home Assistant for seamless cross-brand integration. With Zigbee Binding, it enables direct device control even when the gateway is offline. It can also act as an optional Zigbee router to extend network coverage and eliminate dead zones. Featuring a compact 21mm in-wall design and EU standard box compatibility, it supports 10A load with flexible app control, scheduling, and smart automation for everyday convenience.
| Product Name | Orb-ZBW1 |
| Product Series | Fusion Series |
| Model | ZBMINIR2-E |
| MCU | EFR32MG21 |
| Rated Specifications | 100–240V~ 50/60Hz, 10A MAX Resistive Load |
| Product Dimension | 86 × 86 × 34 mm |
| Working Temperature | -10~40℃ |
| Working Humidity | 5%~95% RH, non-condensing |
| Casing Material | PC |
| Certification | CE / RoHS |
FAQ
Yes. Orb-ZBW1 requires a neutral wire for proper installation and operation.
If your home uses a no-neutral-wire setup, you may want to take a look at our Zigbee smart wall switches designed for non-neutral wiring environments.Yes. As long as the Orb-ZBW1 is connected to your Zigbee gateway, you can control it locally without internet access. However, cloud services and remote access require the internet.
Specifications
| Brand | Sonoff |
