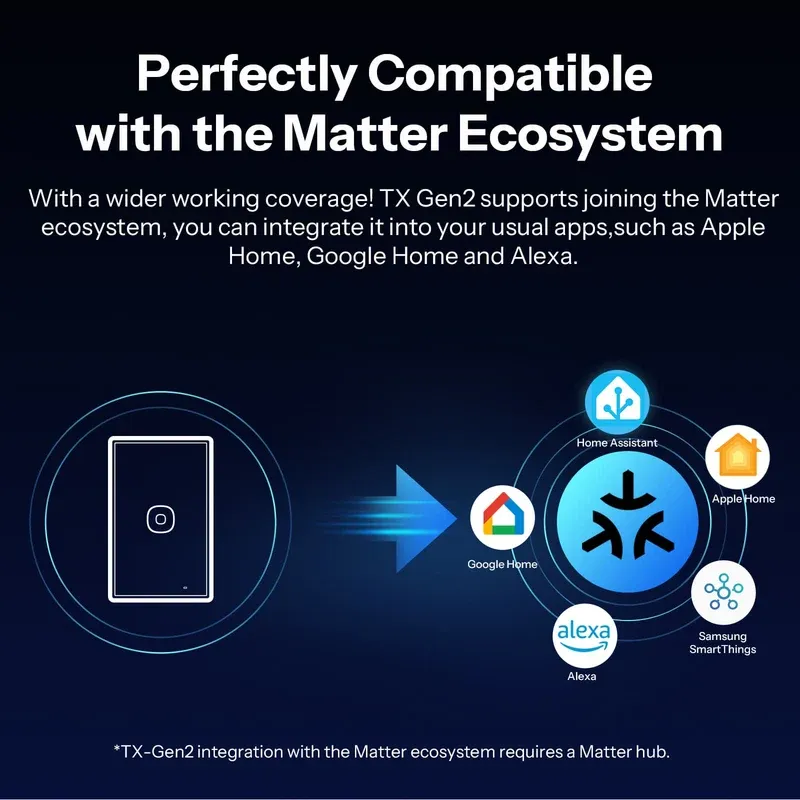

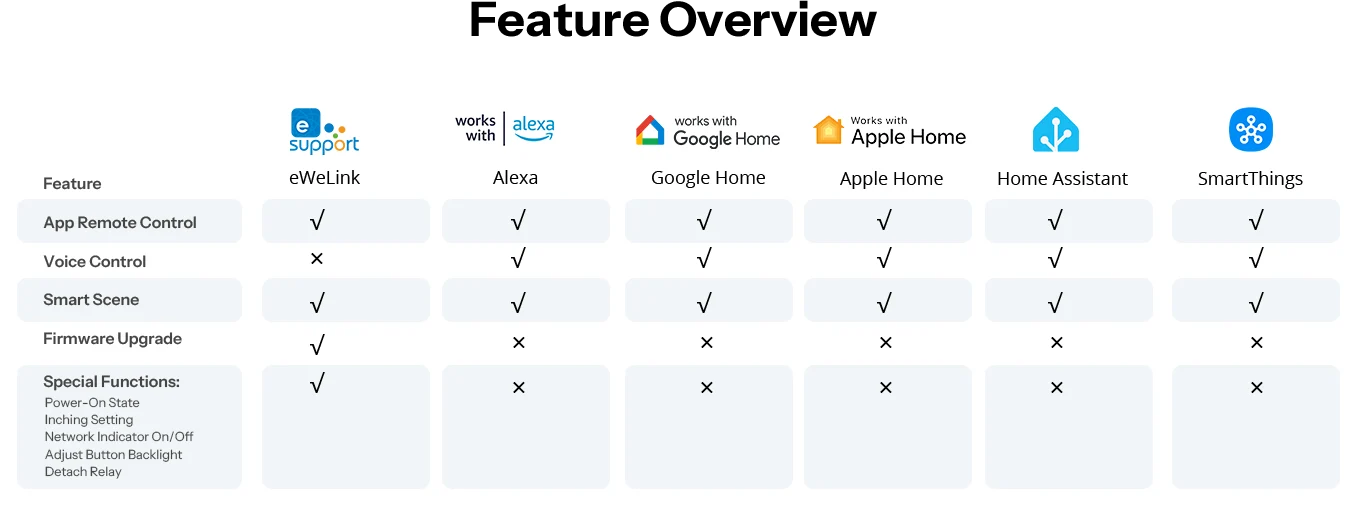

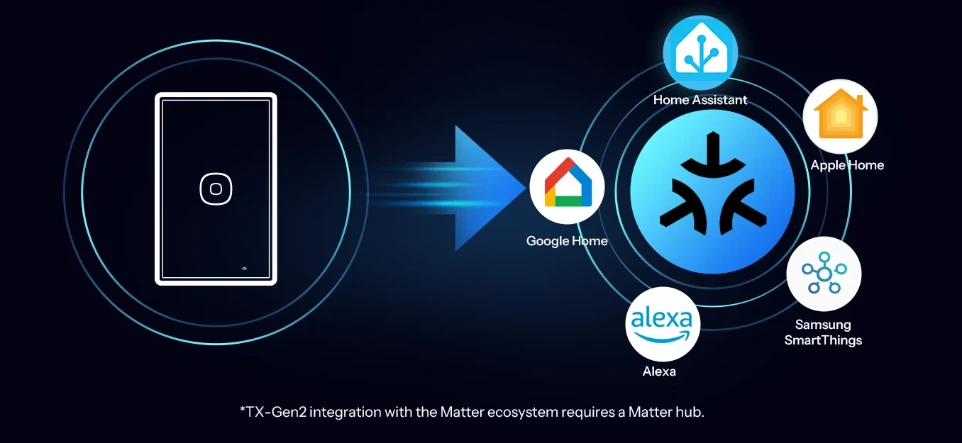

Perfectly Compatible with the Matter Ecosystem
With a wider working coverage! TX Gen2 supports joining the Matter ecosystem, you can integrate it into your usual apps,
such as Apple Home, Google Home and Alexa.
Works Perfectly with Apple Ecosystem
— Fully Supports Siri, iPhone, iPad and Apple Watch.

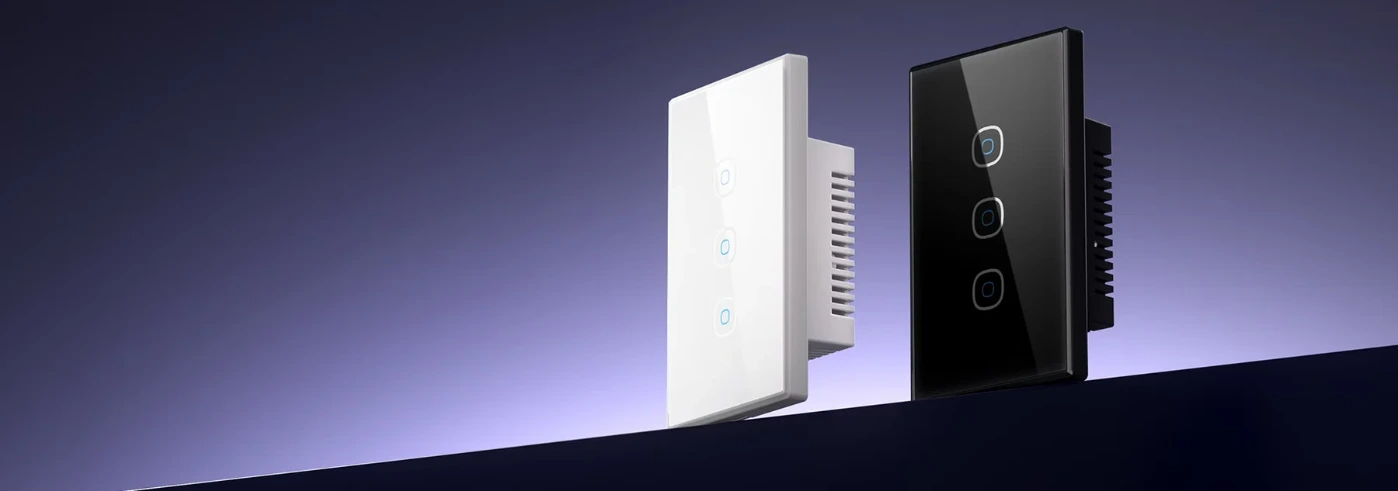

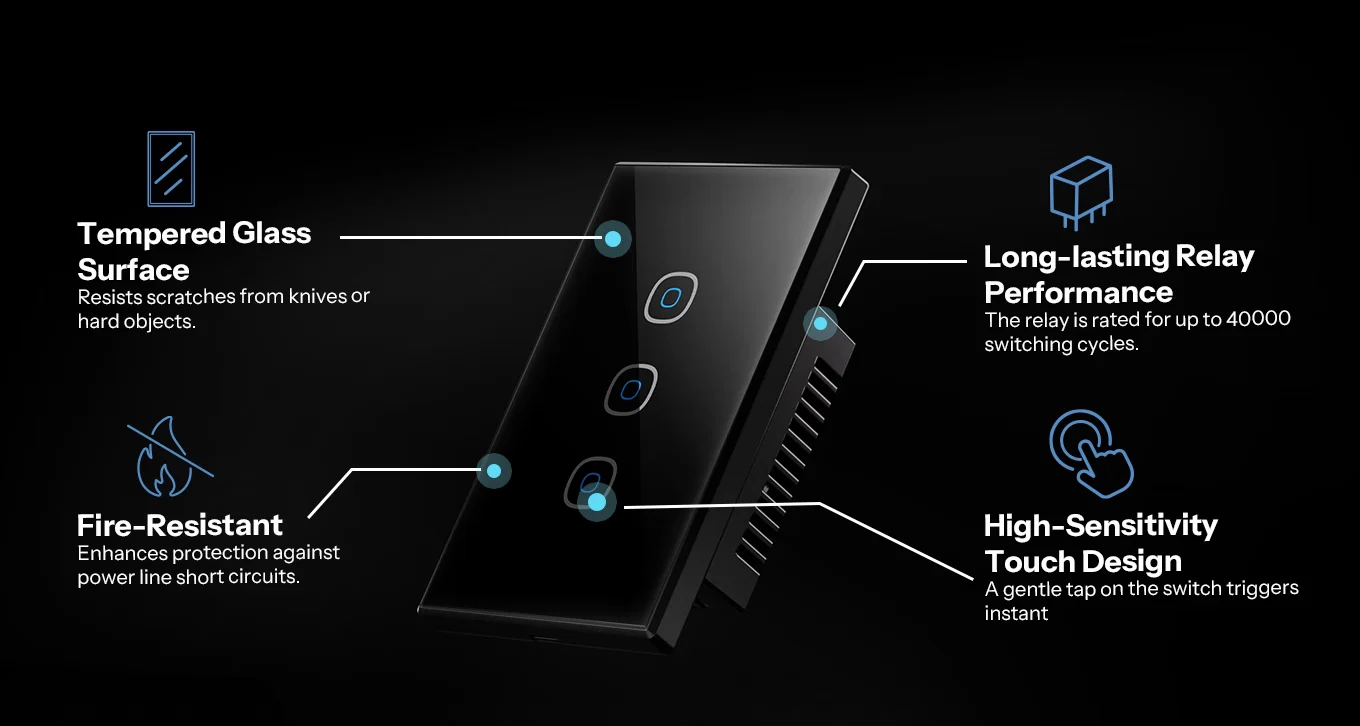

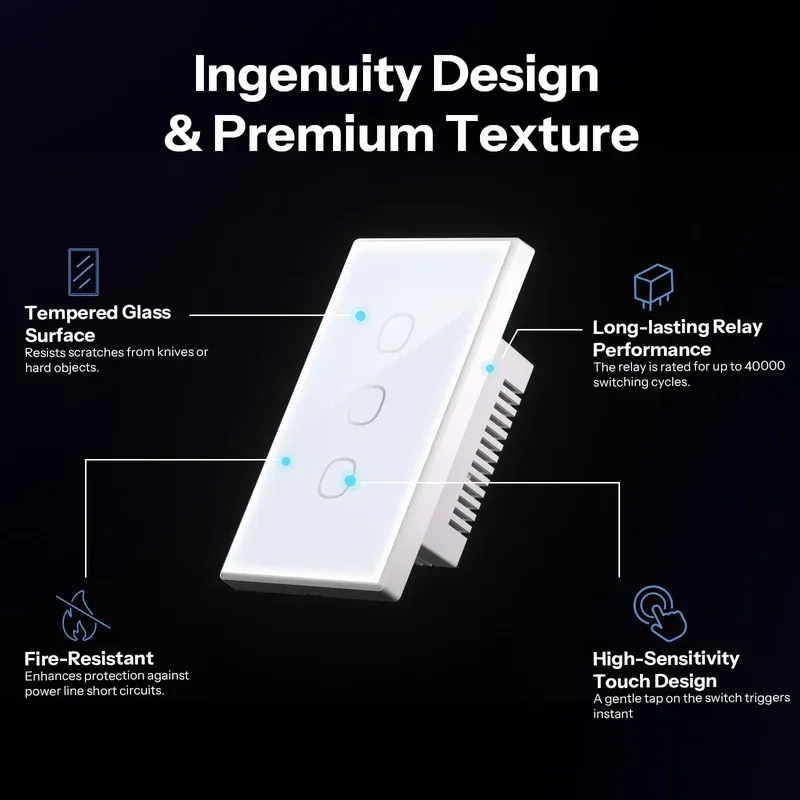

Ingenuity Design & Premium Texture
Multiple Control Method

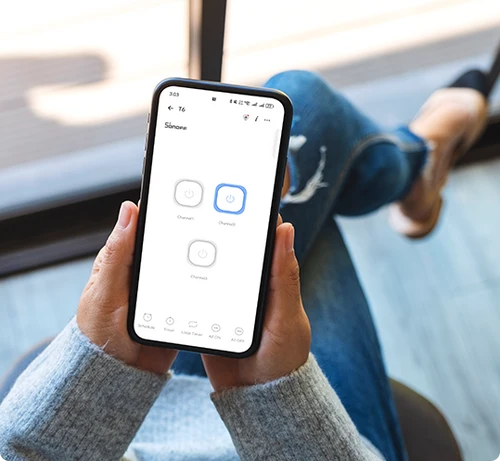

Remote Control
Control your appliances
via your smartphone wherever you are.
Voice Control
Free your hands and control devices with
one command.

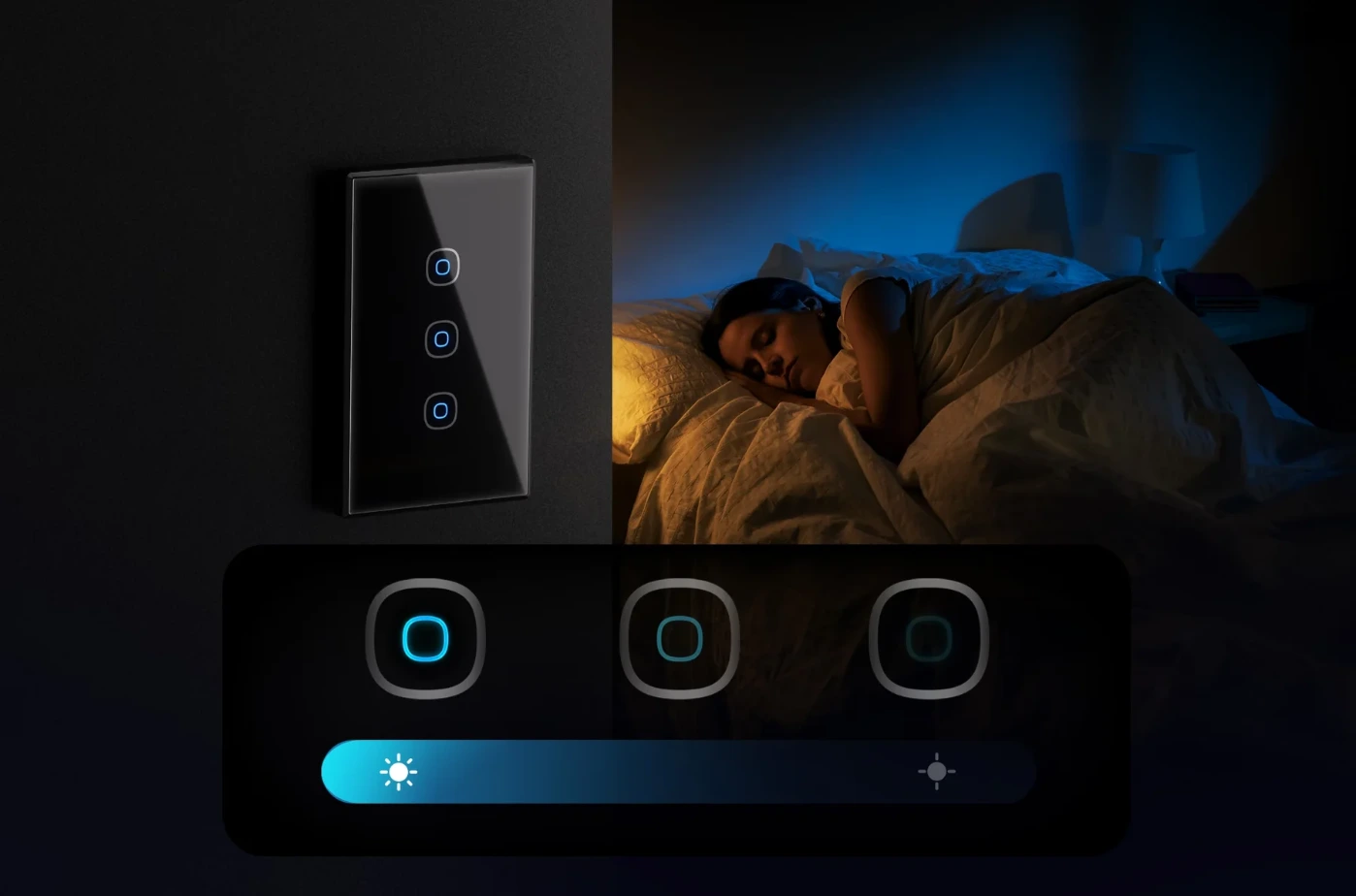

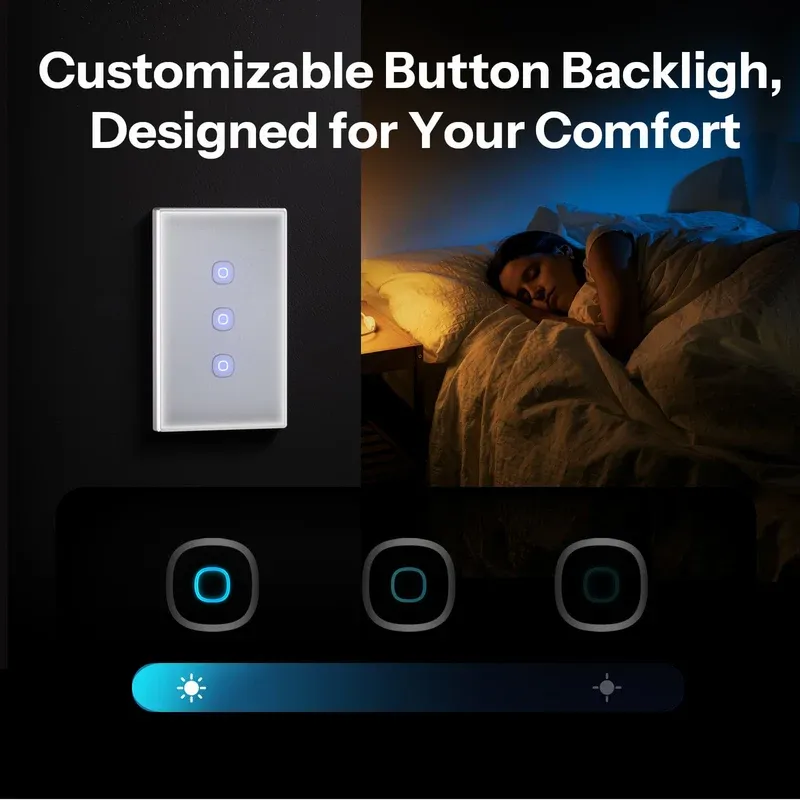

Customizable Button Backlight,Designed for Your Comfort
Timing Function
Diverse timer modes work in harmony to automate your
devices—effortless control, seamless experience.

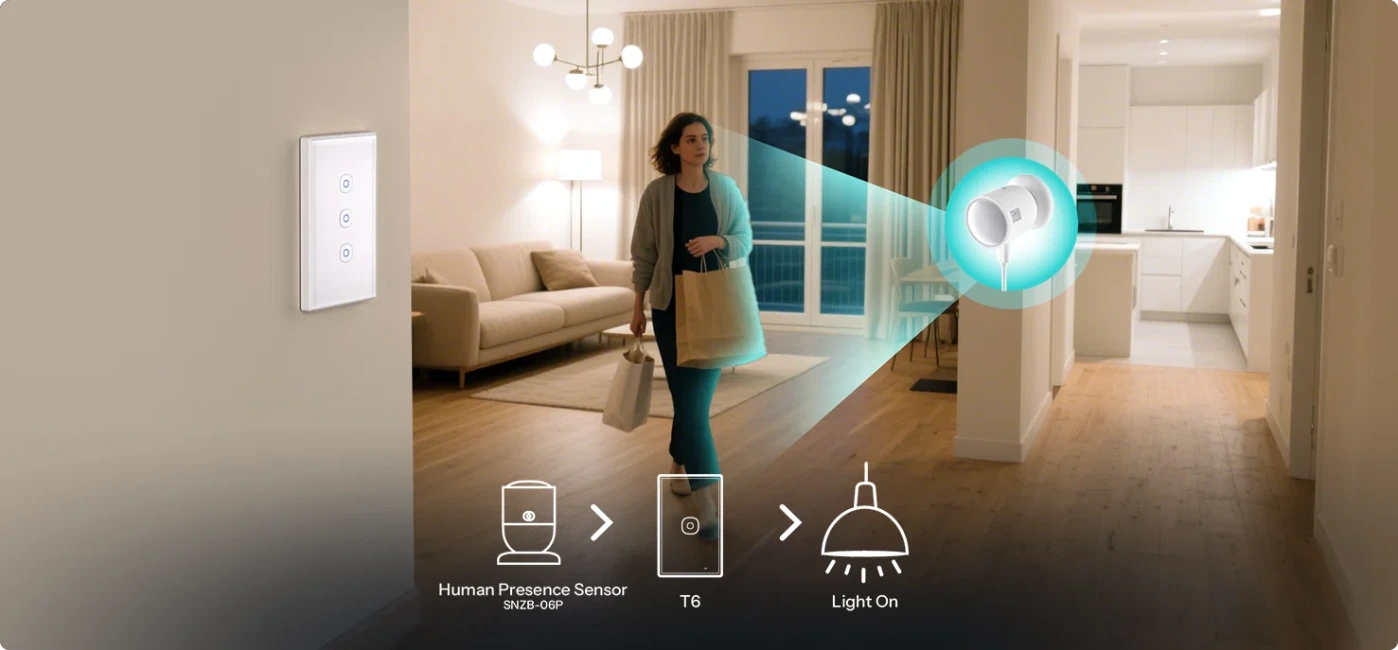

Smart Scenes for a Smarter Life
Never Worry About Smart Lights Going Offline
With the detach relay enabled, smart lights won't lose power when the wall switch is turned off, allowing them to remain smart at all times.
Local Control Does Not Depend On the Server
Even if there is no Internet, the switch can be used with local control.
*TX Gen2 can be launched synchronously on eWeLink and platforms that support Matter, and the device status will be synchronized in real-time.
Quick Use

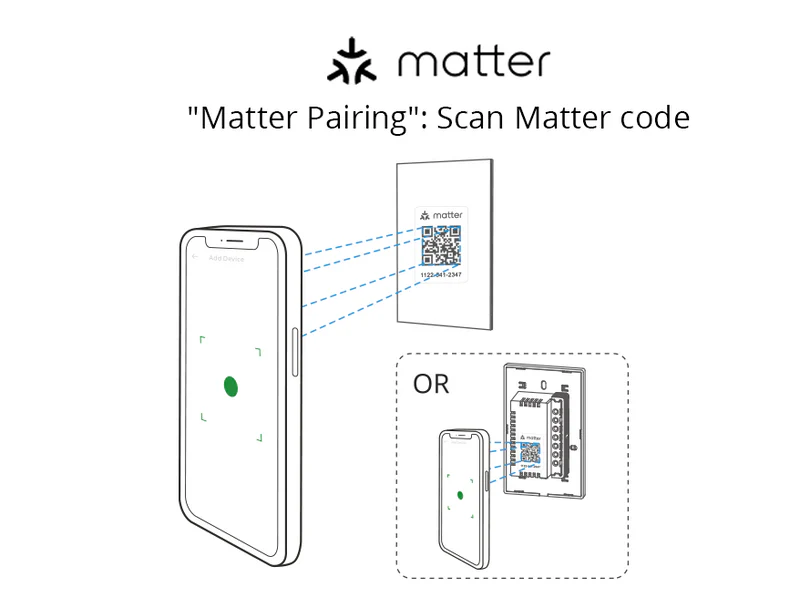

Two pairing methods are available for you to choose from, the first is to add a device via the eWeLink APP.
The second is to add a device via a Matter-compatible app.

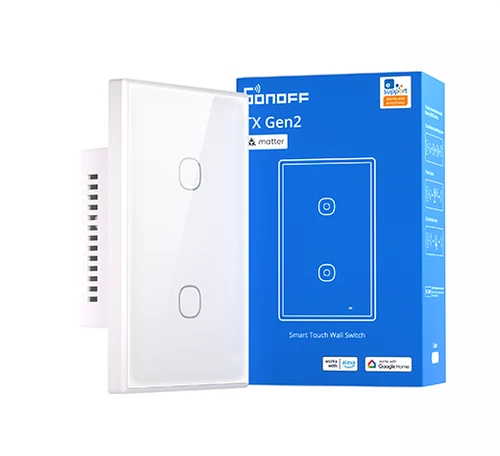

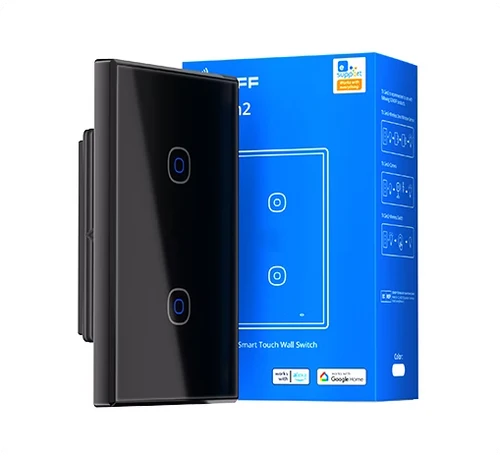

Package

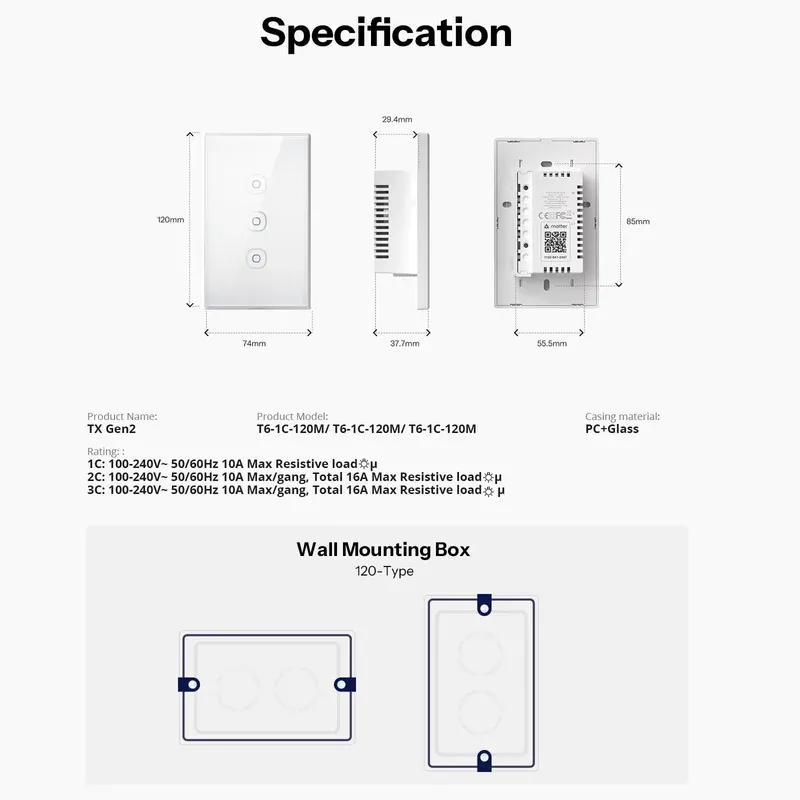

Specs & User Manual
MINI-1GP is TX Gen2 Smart Wall Touch Switch offers 1–3 channel (1C/2C/3C) control options with a 120-type panel design. Connecting to Wi-Fi, you can remote control, set timers, and create automation scenes through the eWeLink App. It is also compatible with the Matter ecosystem, seamlessly integrating with major smart home platforms like Apple Home, Google Home, and Amazon Alexa, enabling cross-brand smart interactions. Bringing smarter, more convenient living to your home.a Matter-over-Wi-Fi smart energy monitoring module designed for smarter energy management and flexible integration. It provides a local web console for real-time monitoring and device configuration without requiring an app or cloud connection. With bidirectional energy monitoring, it tracks both energy consumption and solar power generation. It supports loads of up to 16A and enables integration with open-source platforms such as Home Assistant, openHAB, and ioBroker through open APIs.
| Product Name | TX Gen2 |
| Product Series | TX Series |
| Product Type | Smart Touch Wall Switch |
| Model | T6-1C-120M, T6-2C-120M, T6-3C-120MT6-1C-120MB, T6-2C-120MB, T6-3C-120MB |
| MCU | BK7238 |
| Rating | 1C: 100-240V~ 50/60Hz, 10A Max (Resistive load)2C: 100-240V~ 50/60Hz, 10A Max/gang, Total 16A Max (Resistive load)3C: 100-240V~ 50/60Hz, 10A Max/gang, Total 16A Max (Resistive load) |
| LED | 1C: 150W@100V, 300W@240V2C: 150W@100V/gang, 300W@240V/gang, Total 300W@100V, 600W@240V3C: 150W@100V/gang, 300W@240V/gang, Total 450W@100V, 900W@240V |
| Wireless Connectivity | Wi-Fi: IEEE 802.11b/g/n 2.4GHz |
| Net Weight | 1C: 133.3g2C: 140.7g3C: 149.5g |
| Product Dimension | 120 × 74 × 37.7mm |
| Color | White |
| Casing Material | PC + Glass |
| Diameter of Wiring (Recommended) | 16AWG to 11AWG, SOL/STR copper conductor only |
| Working Temperature | -10℃ to 40℃ |
| Working Humidity | 5–95%RH, non-cond |
FAQ
You can only adjust the backlight brightness when the channel is turned off.
This problem is also caused by the incompatible or poor compatibility of the bulbs used. It may be caused by the A channel bulb or the B channel bulb, and the latter is more likely.
Reset the device to factory settings in one of two ways: either select "Delete device" in the eWeLink App, or press and hold the device button for 5 seconds.
Specifications
| Brand | Sonoff |
